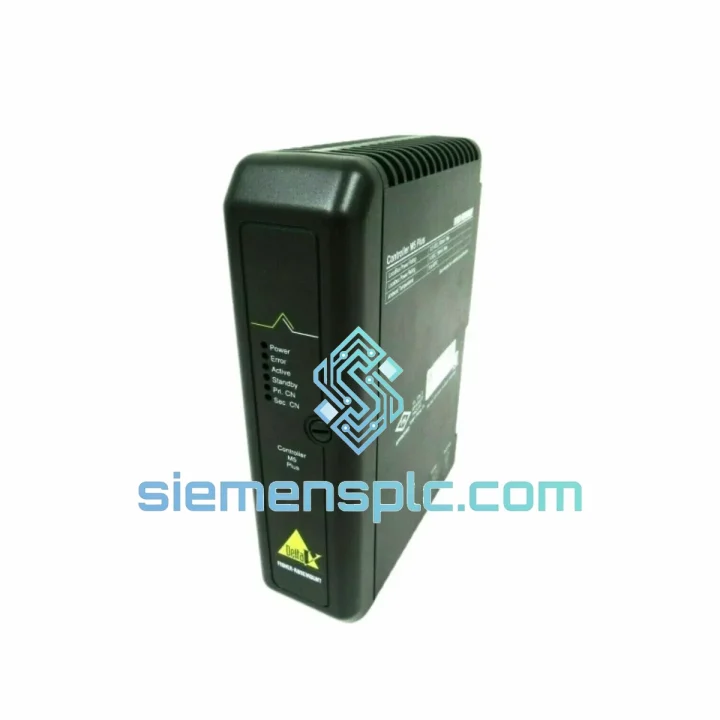

EMERSON KJ2002X1-CA1 12P1509X102 DCS Controller Module – DeltaV M5+

EMERSON KJ2002X1-CA1 12P1509X102 — DeltaV M5+ Controller Module: Deterministic Process Control at the Backplane Level

The EMERSON KJ2002X1-CA1 (revision reference 12P1509X102) is the primary execution engine within the DeltaV Distributed Control System architecture. Positioned as the M5+ generation controller, it occupies the controller carrier slot and assumes full responsibility for scan-cycle execution, I/O arbitration, control algorithm processing, and network-layer communication with the DeltaV Control Network. Unlike peripheral I/O modules that handle signal conditioning, the KJ2002X1-CA1 operates as the deterministic core — every PID loop, function block, and sequential logic element running in the DeltaV domain is ultimately scheduled and executed by this module’s embedded processor subsystem.

In a typical DeltaV installation, the M5+ controller manages between 750 and 1,000 I/O-equivalent function block executions per second at a 100 ms module execution period, with the actual throughput ceiling governed by the complexity of the control strategy loaded into its non-volatile flash memory. The module communicates upstream to the DeltaV Control Network via a dual-port Ethernet interface that supports controller redundancy pairing — when a redundant M5+ is installed in the adjacent carrier slot, the two units maintain a continuous state-synchronization handshake over a dedicated backplane bus, enabling bumpless failover with sub-100 ms switchover latency under fault conditions.

The KJ2002X1-CA1 draws power exclusively from the DeltaV carrier bus, eliminating the need for a dedicated external power feed to the controller itself. Internal power conditioning circuitry provides regulated 3.3 V and 1.8 V rails to the processor core and memory subsystems, with onboard capacitive hold-up designed to sustain orderly state preservation during brief supply interruptions. The module’s operating temperature envelope of 0 °C to 60 °C and humidity tolerance up to 95% non-condensing make it suitable for deployment in standard industrial control room enclosures without supplemental cooling beyond normal panel ventilation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KJ2002X1-CA1 implements a layered hardware architecture that separates the control execution plane from the communication plane at the silicon level. The embedded processor runs a proprietary real-time operating system with a fixed-priority preemptive scheduler, ensuring that the module execution period (MEP) — the fundamental scan cycle — is protected from jitter introduced by network traffic or diagnostic polling. This architectural decision is critical in process industries where loop execution timing directly affects control quality: a 100 ms MEP with less than ±2 ms jitter is achievable under normal loading conditions.

Backplane Bus Architecture: The M5+ controller interfaces with the DeltaV carrier backplane via a high-speed parallel bus that carries both I/O data and inter-module synchronization signals. In a redundant configuration, the backplane bus carries the state-synchronization stream between the primary and standby controllers at a rate sufficient to maintain full process-image parity within a single scan cycle. This means the standby controller holds an up-to-date copy of all PID setpoints, output values, and alarm states at all times — not just a periodic snapshot.

EMC Design: The module’s PCB layout employs multi-layer ground plane segmentation to isolate the analog reference plane (used by any onboard ADC circuitry for diagnostic measurements) from the digital switching plane. Ferrite bead filtering is applied at the carrier bus interface to suppress high-frequency common-mode noise injected from adjacent I/O modules. The module housing is a conductive die-cast enclosure that provides continuous 360° shielding, with spring-finger contacts at the carrier slot interface ensuring low-impedance chassis bonding without relying on screw torque.

Redundancy Arbitration Logic: The primary/standby role assignment is managed by a dedicated arbitration circuit independent of the main processor. This circuit monitors the health of the primary controller via a watchdog handshake signal on the backplane. If the primary fails to assert the watchdog within the configured timeout window (typically 1–3 scan cycles), the arbitration circuit asserts the switchover signal to the standby controller without waiting for software intervention. This hardware-level arbitration eliminates the single-point-of-failure risk that would exist if role negotiation were handled purely in firmware.

Non-Volatile Strategy Storage: The control strategy (compiled DeltaV module database) is stored in onboard flash memory with wear-leveling firmware. On power cycle, the module performs a CRC integrity check of the stored strategy before loading it into SDRAM for execution. A failed CRC triggers a diagnostic alarm on the DeltaV operator workstation and prevents the module from entering the run state, protecting the process from executing a corrupted control strategy.

System Integration Benefits

• Deterministic Scan-Cycle Execution: The fixed-priority RTOS kernel guarantees that the module execution period is maintained within specification regardless of diagnostic or communication load, providing the timing predictability required for cascade and ratio control loops.
• Bumpless Redundancy Switchover: Continuous backplane state synchronization ensures that a failover event does not produce a step-change in controller output, preventing process upsets that would otherwise require operator intervention to stabilize.
• Transparent Diagnostics via DeltaV Diagnostics Explorer: The KJ2002X1-CA1 exposes module health parameters — CPU load percentage, memory utilization, network packet error rate, and redundancy synchronization status — directly to the DeltaV Diagnostics Explorer without requiring additional hardware or software licenses.
• Backward-Compatible Drop-In Replacement: The M5+ form factor and carrier interface are electrically and mechanically compatible with earlier DeltaV M-series controller carriers, allowing field replacement without carrier changeout or control network reconfiguration in most installations.
• Scalable I/O Capacity via CIOC/EIOC/WIOC Subsystems: The controller manages I/O subsystems over the DeltaV Control Network rather than a local backplane bus, enabling the I/O count to scale independently of the controller hardware by adding remote I/O carriers without modifying the controller slot.
• Integrated Alarm and Event Journaling: All module-level events — power interruptions, redundancy switchovers, strategy downloads, and diagnostic faults — are time-stamped to the DeltaV system clock (IEEE 1588 PTP-synchronized where configured) and written to the event journal, providing a complete audit trail for regulatory compliance and root-cause analysis.
• Online Strategy Download: The DeltaV engineering environment supports online download of modified control strategies to the running controller without requiring a process shutdown, provided the changes fall within the module’s available execution capacity. This capability reduces planned maintenance windows and supports iterative control tuning in live production environments.
• Cybersecurity Posture: The module operates within the DeltaV network security framework, which supports VLAN segmentation, role-based access control at the workstation layer, and application whitelisting on DeltaV servers. The controller itself does not expose a general-purpose IP stack to the plant network, reducing the attack surface compared to general-purpose PC-based controllers.

Quality Assurance & Global Logistics

Every EMERSON KJ2002X1-CA1 12P1509X102 unit supplied by siemensplc.com is sourced as genuine OEM hardware through verified industrial supply channels. Each module undergoes a structured pre-shipment inspection protocol: physical label and housing integrity verification, connector pin inspection under magnification, and where test fixtures permit, a power-on communication handshake test against a known-good DeltaV carrier assembly. Units that do not pass inspection are quarantined and not dispatched.

Packaging follows IEC 61340-5-1 ESD protection requirements: modules are sealed in conductive anti-static bags, placed in rigid corrugated cartons with closed-cell foam cushioning, and labeled with handling instructions. Each shipment includes a commercial invoice, packing list, certificate of origin, and ESD compliance declaration as standard export documentation.

Logistics operations are based in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide for time-critical shipments. In-stock units typically ship within 1–3 business days of order confirmation. For bulk procurement or project-based orders, sea freight (LCL/FCL) and bonded warehouse arrangements are available. HS Code guidance and pre-shipment documentation support are provided for major import markets including the EU, United States, Southeast Asia, and the Middle East. A 12-month warranty covers all units from the date of shipment.
