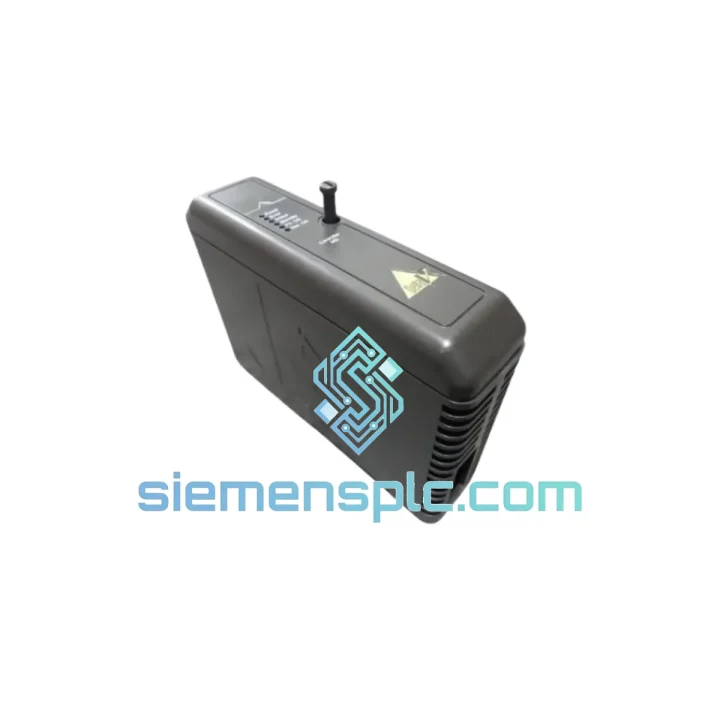

EMERSON KJ2003X1-BA2 12P20963X112 Controller Module – DeltaV DCS

EMERSON KJ2003X1-BA2 12P20963X112 — DeltaV DCS Controller Module: Backplane Architecture and Deterministic Control Loop Execution

The EMERSON KJ2003X1-BA2 (assembly reference 12P20963X112) is a dedicated controller module within the DeltaV™ Distributed Control System platform. Its primary function in the control architecture is to execute downloaded control strategies — PID loops, sequential function charts, and function block diagrams — with deterministic scan-cycle timing independent of host workstation load. The module communicates upstream via the DeltaV Control Network (a 100 Mbit/s Ethernet-based proprietary bus) and interfaces downstream to I/O subsystems through the DeltaV carrier backplane at a defined inter-module clock rate. This separation of execution plane from supervisory plane is the architectural basis for the platform’s process availability guarantees in continuous and batch manufacturing environments.

In a typical DeltaV node, the KJ2003X1-BA2 occupies the controller slot of a DeltaV carrier and manages all I/O modules seated in adjacent carrier slots. The module maintains its own non-volatile memory for the downloaded control database, enabling autonomous restart and bumpless transfer following a power interruption without requiring a re-download from the DeltaV Application Station. This characteristic is critical in processes where re-initialization latency is operationally unacceptable — for example, in continuous polymerization reactors or fired-heater control systems.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Arbitration: The KJ2003X1-BA2 acts as the bus master on the DeltaV carrier backplane. I/O modules in adjacent slots are polled in a fixed, pre-configured sequence during each scan cycle. The arbitration logic is implemented in firmware and enforces a deterministic token-passing scheme — no I/O module can hold the bus beyond its allocated time slot, which bounds worst-case scan jitter to a defined value regardless of I/O module count within the carrier. This is architecturally distinct from shared-bus designs where a single misbehaving I/O module can introduce variable latency across the entire node.

EMC and Signal Isolation: The module’s internal power rails are isolated from the carrier backplane supply through DC-DC conversion with common-mode choke filtering. This prevents high-frequency switching noise generated by adjacent I/O modules — particularly those driving inductive loads or relay outputs — from coupling into the controller’s processor core or memory bus. The physical PCB layout employs a split ground plane strategy, separating the digital logic ground from the backplane interface ground, with a single-point star connection to minimize ground loop area.

Non-Volatile Control Strategy Retention: The downloaded control database is stored in flash memory with wear-leveling firmware. On power restoration, the module executes a self-check sequence — verifying CRC integrity of the stored strategy — before resuming execution. If the CRC check fails, the module enters a safe hold state and generates a diagnostic alarm on the DeltaV Control Network rather than executing a potentially corrupted strategy. This fail-safe behavior is a deliberate hardware-firmware co-design decision that prioritizes process safety over availability.

Redundancy Arbitration Logic: When deployed in a redundant controller pair, the KJ2003X1-BA2 implements a hardware-level heartbeat exchange with its paired module via a dedicated redundancy port on the carrier. The arbitration logic uses a voting mechanism: if the primary module fails to assert its heartbeat within two consecutive scan cycles, the secondary module assumes control without requiring intervention from the DeltaV Application Station. Switchover time is bounded at less than one scan cycle, which for a 100 ms scan period means process variable tracking is maintained without a detectable bump in the control output.

System Integration Benefits

• Deterministic scan-cycle execution: The module’s fixed-priority scheduler guarantees that all function blocks within a downloaded module complete execution within the configured scan period, providing the timing predictability required for cascade and ratio control strategies in continuous processes.
• Autonomous restart without re-download: Non-volatile strategy storage eliminates the dependency on Application Station availability during power restoration, reducing mean time to recovery in facilities with unreliable utility power.
• Transparent online diagnostics: The module continuously reports health parameters — CPU load percentage, memory utilization, communication error counters, and scan overrun events — to DeltaV Diagnostics without requiring a separate diagnostic tool or interrupting control execution.
• Bumpless redundancy switchover: Hardware-level heartbeat arbitration achieves sub-scan-cycle failover, maintaining process variable tracking and control output continuity during controller faults in high-availability applications.
• Integrated alarm management: The module generates structured diagnostic alarms — with defined severity levels and recommended actions — directly into the DeltaV alarm management system, reducing the operator response time required to identify and address hardware faults.
• Scalable I/O capacity: A single KJ2003X1-BA2 can manage multiple I/O modules across the carrier, with the backplane bus arbitration logic scaling deterministically as I/O count increases, avoiding the throughput degradation seen in shared-bus architectures under high I/O density.
• Firmware version traceability: The module stores its firmware revision in a readable register accessible via DeltaV Explorer, enabling automated version auditing across all controllers in a plant-wide DeltaV system without physical inspection.
• Compatibility with DeltaV SIS integration: In plants using DeltaV SIS for safety instrumented functions, the KJ2003X1-BA2 can exchange data with SIS logic solvers via the DeltaV Control Network, enabling integrated cause-and-effect visualization in the operator interface without a separate safety HMI layer.

Quality Assurance & Global Logistics

Every KJ2003X1-BA2 12P20963X112 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Physical inspection covers connector pin integrity, label authenticity cross-referenced against EMERSON’s published part marking standards, and housing condition assessment. Units sourced from authorized distribution channels carry full manufacturing traceability documentation, including date codes and lot references, which are retained in our inventory records and available to regulated-industry customers upon request.

Packaging follows IEC 61340-5-1 electrostatic discharge protection requirements: each module is sealed in a conductive anti-static bag, placed in foam-lined rigid packaging, and labeled with humidity indicator cards. For long-haul international shipments, desiccant packs are added to maintain internal relative humidity below 40% throughout transit.

Logistics from Xiamen operate via DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to Europe and North America. EXW Xiamen terms are available for customers consolidating freight through their own forwarders. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared to the destination country’s import requirements. A 12-month warranty covers manufacturing defects; DOA units are replaced or credited within 30 days of confirmed receipt.
