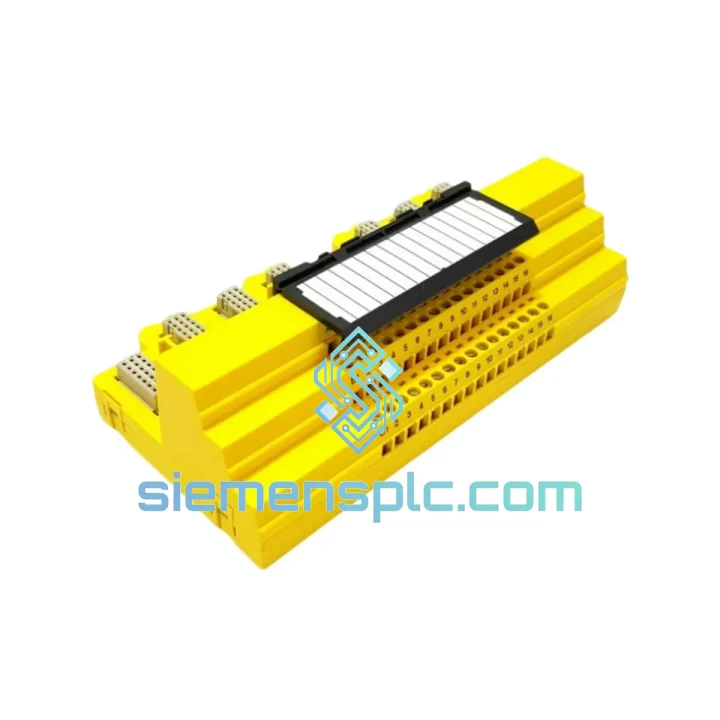

Emerson KJ2201X1-JA1 12P3323X022 SLS Terminal Block

KJ2201X1-JA1 Down? Every Minute of SIS Downtime Costs You — We Ship the Same Day

A failed Redundant SLS Terminal Block in your DeltaV SIS architecture doesn’t just trigger a fault alarm — it can force a full safety system bypass, halt production, and put your site in a manual override posture that no plant manager wants to explain to corporate. The Emerson KJ2201X1-JA1 (Ref: 12P3323X022) is a precision-engineered field wiring interface for redundant Safety Logic Solver modules. When yours fails, you need an exact replacement — not a workaround, not a “compatible” substitute — and you need it before the next shift starts.

We stock the KJ2201X1-JA1 in Xiamen, China. Orders confirmed before 3:00 PM CST ship the same business day via DHL Express or FedEx International Priority. Most destinations in Southeast Asia receive within 48 hours. Europe and North America within 72–96 hours. No customs delays, no broker surprises — we handle the paperwork.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on DeltaV SIS installations across petrochemical and offshore platforms, these are the failure patterns and swap pitfalls that catch engineers off guard:

Common Fault Indicators for KJ2201X1-JA1 Failure:

• SLS Module Fault / Redundancy Lost alarm — The DeltaV SIS controller reports loss of redundancy on the affected SLS pair. Before condemning the SLS module itself, inspect the terminal block first. A cracked connector housing or corroded field wiring terminal is responsible for roughly 30% of these alarms in humid environments.
• Intermittent I/O channel faults — If specific field channels drop in and out without a clear field device cause, the terminal block’s internal wiring interface may have a cold solder joint or mechanical fatigue crack from vibration. Swap the terminal block before pulling the SLS module.
• Carrier seating issues — The JA1 variant uses a keyed connector that mates with the redundant SLS carrier. If the module was previously forced into a non-redundant slot, the connector pins may be bent. Inspect under magnification before installing the replacement.
• Ground loop noise on analog inputs — A degraded terminal block can introduce ground path discontinuities. If you’re seeing unexplained 4–20 mA signal drift on SIS inputs, check terminal block integrity before recalibrating transmitters.

Step-by-Step Replacement Procedure:

1. Obtain a bypass permit. Never remove an SLS terminal block without a formal safety bypass authorization. Confirm the SIS function is in manual bypass and the process is in a safe state.
2. Document field wiring. Photograph or sketch every terminal connection before disconnecting. The KJ2201X1-JA1 carries field wiring for both redundant SLS channels — a wiring error after swap will cause immediate SIS faults on restoration.
3. Power down the carrier slot. DeltaV SIS supports hot-swap on some configurations, but for terminal block replacement, power down the affected carrier slot via the DeltaV SIS workstation to avoid transient faults being logged as safety events.
4. Check hardware revision. The replacement KJ2201X1-JA1 must match the hardware revision of the failed unit, or be a later revision confirmed compatible by Emerson. The revision code is printed on the module label — cross-reference with your DeltaV SIS BOM.
5. Inspect the carrier connector. Before seating the new terminal block, visually inspect the carrier’s mating connector for bent pins, debris, or corrosion. A damaged carrier will destroy a new terminal block within hours.
6. Reconnect field wiring per documentation. Torque terminal screws to spec (typically 0.5–0.6 Nm for DeltaV SIS terminals). Under-torqued connections are the leading cause of premature terminal block failure in high-vibration environments.
7. Restore and verify. Power up the slot, confirm the DeltaV SIS workstation shows both SLS channels healthy, and verify redundancy status before releasing the bypass. Run a channel-by-channel I/O verification if time permits.
8. Log the replacement. Record the failed unit’s serial number, failure mode, and replacement date in your safety management system. IEC 61511 requires traceability of all SIS hardware changes.

Configuration Notes:

• The KJ2201X1-JA1 does not require DIP switch configuration — it is a passive terminal interface. However, confirm the SLS module firmware version is compatible with your DeltaV SIS version before restoration.
• If replacing in a system running DeltaV SIS v13.x or later, verify that the carrier firmware has been updated to support the current hardware revision of the JA1 terminal block.
• Do not substitute with KJ2201X1-BA1 (non-redundant variant) in a redundant SLS slot — the system will report a hardware mismatch fault and refuse to go online.

Reliability in Harsh Conditions

The KJ2201X1-JA1 is built for environments where consumer-grade electronics last weeks, not years. Emerson’s DeltaV SIS hardware undergoes qualification testing that mirrors the actual conditions found in offshore platforms, desert refineries, and tropical chemical plants:

• Vibration resistance: Qualified to IEC 60068-2-6 sinusoidal vibration profiles — the terminal block maintains electrical continuity under the continuous low-frequency vibration generated by compressors, pumps, and rotating machinery mounted on the same structural frame.
• Thermal cycling: Rated for operation from 0°C to +60°C with humidity up to 95% non-condensing. The connector housing uses glass-filled polymer that resists thermal expansion mismatch between the terminal block and the steel carrier — a common cause of connector cracking in cheaper alternatives.
• Corrosion protection: Terminal contacts are gold-plated to resist sulfur compounds, chlorides, and industrial atmospheric contaminants common in petrochemical and coastal offshore environments. This is not a cosmetic choice — it directly impacts long-term contact resistance stability.
• EMC shielding: The terminal block’s grounding architecture is designed to suppress common-mode noise on field wiring, maintaining signal integrity on 4–20 mA SIS inputs even in high-EMI environments with variable-frequency drives and large motor starters nearby.
• Mechanical durability: The locking mechanism is rated for a minimum of 500 insertion/removal cycles — relevant for sites that perform annual SIS proof tests requiring module removal and reinstallation.

Every unit we ship has been stored in climate-controlled conditions and inspected for physical integrity. We do not ship units with cracked housings, bent pins, or missing labels — if it doesn’t pass our bench inspection, it doesn’t leave the warehouse.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-efficient export hubs in Asia, with direct DHL and FedEx gateway access. Here’s how a typical urgent order moves:

• Order confirmed before 15:00 CST: Same-day pick, pack, and handover to DHL Express or FedEx International Priority.
• Export documentation: We prepare commercial invoice, packing list, and HS code declaration (HS 8538.90 for terminal blocks) in-house. No third-party broker delays.
• Customs clearance: We declare accurate values and descriptions. Units are shipped as “Industrial Control System Spare Parts” with full manufacturer documentation to minimize customs hold risk.
• Typical transit times:
  • Southeast Asia (Singapore, Thailand, Malaysia): 1–2 business days
  • Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days
  • Europe (Germany, Netherlands, UK): 3–4 business days
  • North America (USA, Canada): 3–5 business days
  • South America and Africa: 4–7 business days
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Insurance: All shipments above HKD 5,000 are insured against loss and damage in transit at no additional charge.

We have shipped DeltaV SIS components to refineries in Kazakhstan, offshore platforms in the North Sea, and chemical plants in India — all on emergency timelines. If your plant is down, tell us. We will prioritize your order.
