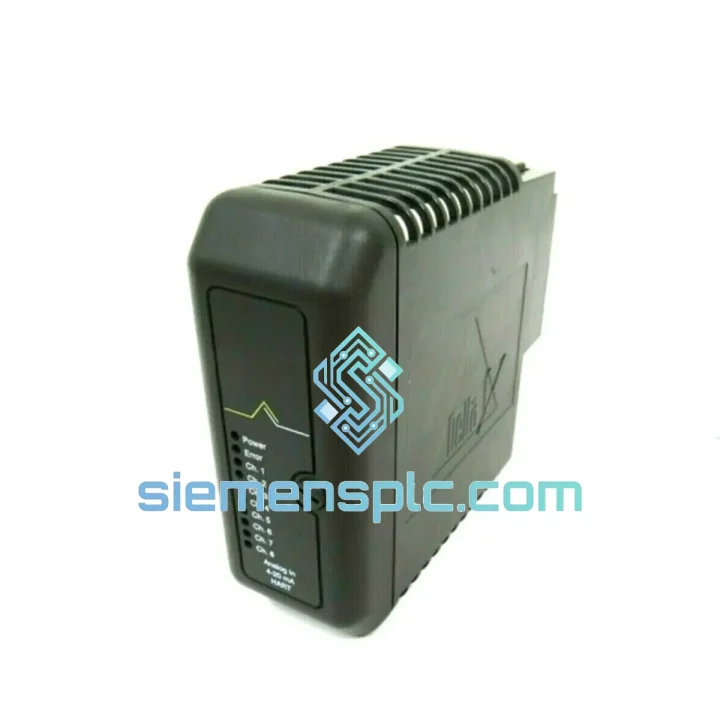

EMERSON KJ3002X1-BG2 12P1731X062 Thermocouple Input Module – DeltaV Series

EMERSON KJ3002X1-BG2 12P1731X062 – 8-Channel Thermocouple Input Module for DeltaV Distributed Control Systems

The KJ3002X1-BG2 (alternate part reference 12P1731X062) occupies a well-defined position in the DeltaV I/O subsystem: it is the signal-conditioning front-end for thermocouple sensors feeding temperature data into the DeltaV controller’s process database. Each of its eight independent input channels accepts millivolt-level thermocouple EMF signals, performs linearization against IEC 60584 reference tables, applies automatic cold junction compensation (CJC) using an on-board precision thermistor, and delivers a calibrated engineering-unit value across the DeltaV backplane bus to the resident controller — all within a deterministic scan cycle. In a control loop context, this module is the boundary between the physical process and the digital control domain: measurement latency, noise rejection, and channel isolation at this stage directly determine the quality of the closed-loop temperature regulation downstream.

The module mounts on a standard DeltaV 2-wide I/O carrier and draws power exclusively from the carrier backplane, eliminating field-side power wiring. Its plug-and-play architecture means DeltaV Explorer auto-discovers the module type and channel count upon insertion, with no manual address configuration required. This characteristic is particularly valuable in brownfield retrofit scenarios where minimizing commissioning time is a hard constraint.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KJ3002X1-BG2 implements a per-channel sigma-delta (ΣΔ) analog front-end architecture. Each channel’s ΣΔ modulator oversamples the thermocouple EMF at a rate significantly above the Nyquist frequency for the target measurement bandwidth, then applies a digital decimation filter to extract a 16-bit result. This approach inherently suppresses high-frequency noise — including 50 Hz and 60 Hz power-line interference — without requiring external notch filter components, which is a meaningful advantage in panel environments where variable-frequency drives and contactors generate broadband conducted EMI.

Cold junction compensation is handled by a dedicated on-board thermistor positioned at the terminal block interface, where the thermocouple-to-copper transition occurs. The CJC reading is sampled at the same rate as the channel inputs and applied in firmware using the Seebeck coefficient tables for the configured TC type. This eliminates the isothermal block assumption error that affects external CJC schemes when there is a thermal gradient across the terminal strip — a common condition in high-density I/O enclosures with significant self-heating.

Channel-to-channel isolation is implemented via individual DC-DC converters and optocoupler barriers on each input path. This architecture prevents ground loop currents — which arise when thermocouples at different process locations share a common reference potential — from coupling noise between channels. The isolation barrier also protects the backplane bus from transient overvoltage events on the field wiring, such as those induced by nearby lightning strikes or motor switching transients, up to the module’s rated isolation voltage.

The module’s EMC design follows IEC 61000-4 series test criteria: conducted immunity (IEC 61000-4-6), electrostatic discharge (IEC 61000-4-2), and radiated immunity (IEC 61000-4-3). The PCB layout uses a split ground plane strategy — analog signal ground is isolated from digital logic ground and connected only at a single star point — to prevent digital switching noise from coupling into the microvolt-level thermocouple signal paths.

System Integration Benefits

• Auto-Discovery via DeltaV Explorer: The module’s EEPROM stores its type identifier, which DeltaV Explorer reads on insertion and uses to auto-populate the I/O channel list with correct engineering unit ranges and TC type options — eliminating manual channel-type entry and the associated configuration errors.
• Deterministic Scan Cycle Participation: The KJ3002X1-BG2 participates in the DeltaV controller’s deterministic I/O scan, delivering updated process values to the controller database at each configured module period (100 ms minimum), ensuring temperature data is never stale relative to the control execution interval.
• Per-Channel Diagnostic Transparency: Each channel independently reports open-circuit detection (broken thermocouple wire), out-of-range signal, and CJC sensor failure as discrete diagnostic bits in the DeltaV process database, enabling the control strategy to implement sensor-failure fallback logic without external hardware.
• Hot-Swap Without Process Interruption: The module supports online insertion and removal from the carrier while the DeltaV system remains in service. The controller marks affected channels as uncertain-quality during the swap interval and restores normal operation automatically upon re-insertion — a critical capability for continuous-process plants with zero-downtime maintenance requirements.
• Scalable Multi-Point Temperature Architecture: Eight channels per module slot, combined with DeltaV’s support for up to 30 I/O modules per controller node, allows a single controller to manage up to 240 thermocouple inputs — sufficient for a complete distillation column temperature profile or a multi-zone furnace control application.
• Unified Engineering Environment: Channel configuration, calibration offsets, alarm limits, and engineering unit scaling are all managed within DeltaV Control Studio, with no separate configuration tool required. Changes are downloaded to the module over the backplane bus and take effect without module power cycling.
• Redundant Controller Compatibility: In DeltaV redundant controller configurations, the KJ3002X1-BG2 I/O data is mirrored to the secondary controller via the DeltaV redundancy bus, ensuring that a primary controller failover does not interrupt temperature measurement continuity in the process database.
• Audit Trail and Electronic Marshalling Readiness: When used with DeltaV CHARM I/O infrastructure in hybrid configurations, the module’s channel data integrates into the same process historian and audit trail framework as CHARM-based I/O, supporting 21 CFR Part 11 and IEC 62443 compliance documentation requirements.

Quality Assurance & Global Logistics

Every KJ3002X1-BG2 unit supplied through our Xiamen operations is sourced from traceable distribution channels and passes a structured pre-shipment verification sequence. Physical inspection covers PCB marking authenticity, connector pin condition, housing mold geometry, and label hologram integrity cross-referenced against Emerson’s published part identification criteria. Functional verification — where test infrastructure permits — confirms backplane communication handshake and channel response to a known mV reference input. A Certificate of Conformance (COC) and packing list with individual serial numbers accompany every shipment.

Export logistics from Xiamen are handled via DHL Express (3–5 business days to most destinations), FedEx International Priority, and sea freight LCL for volume orders. Anti-static ESD packaging, foam-lined rigid cartons, and moisture-barrier outer wrapping are standard for all units. Full export documentation — commercial invoice, packing list, and Certificate of Origin — is prepared for every international shipment. In-stock units are dispatched within 1–3 business days of payment confirmation. Sourcing inquiries for non-stocked quantities receive a response within 24 hours.

Primary service regions include Mainland China, Southeast Asia (Vietnam, Thailand, Indonesia, Malaysia), the Middle East (UAE, Saudi Arabia, Qatar), Europe (Germany, Netherlands, Poland), and North America (USA, Canada). For large or time-critical orders, pre-shipment photo documentation of the actual unit, label, and packaging is available upon request at no additional charge.
