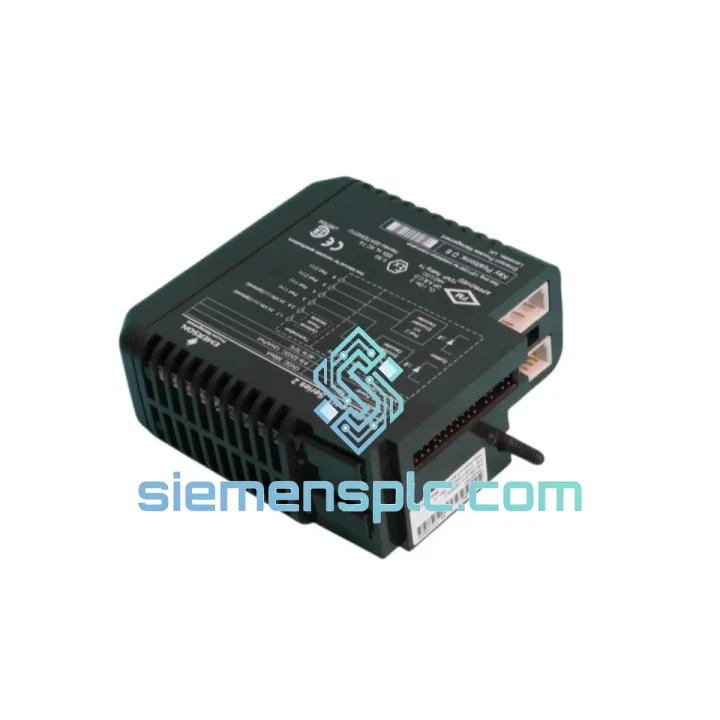

Emerson KJ3242X1-BA1 12P2471X052 Fieldbus Card Module

Emerson KJ3242X1-BA1 12P2471X052 — Stop the Bleed: Get Your DeltaV Fieldbus Segment Back Online Before the Next Shift

Your FOUNDATION Fieldbus H1 segment just dropped. Field devices are silent. The DeltaV alarm banner is lit up like a Christmas tree. Operations is calling every five minutes. You already know the culprit — the KJ3242X1-BA1 card is dead, and every hour it stays that way is costing you production throughput, batch integrity, or worse, a forced unit shutdown. We stock this card. It ships today from Xiamen. That’s the only thing that matters right now.

The KJ3242X1-BA1 (cross-reference: 12P2471X052) is a FOUNDATION Fieldbus H1 I/O card for the Emerson DeltaV distributed control system. It provides multi-segment H1 connectivity between your DeltaV controller and the smart field devices — transmitters, valve positioners, analyzers — that make your process run. When this card fails, those devices don’t just lose communication; they lose their control function entirely. There is no graceful degradation. The segment goes dark, and your process goes manual or trips.

We have seen this failure mode across refineries in the Middle East, pharmaceutical plants in Europe, and LNG terminals in Southeast Asia. The pattern is always the same: the card fails at the worst possible time, the local spare bin is empty, and the OEM lead time is weeks. That’s the gap we fill — with verified stock, same-day dispatch, and DHL/FedEx express delivery that gets the part to your site in 2–5 business days, anywhere on the planet.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most Common Failure Signatures:

Before you pull the card, confirm the fault is actually the KJ3242X1-BA1 and not a segment wiring issue or a bad power conditioner. In DeltaV Explorer, a failed H1 card typically shows as a red X on the card icon with a “Card Not Responding” or “Hardware Fault” diagnostic. If you see individual device faults rather than a full segment loss, the card itself may still be functional — check your H1 segment termination resistors and power conditioner output voltage (should be 9–32 VDC at the segment terminals) before condemning the card.

Step-by-Step Hot-Swap Replacement Procedure:

1. In DeltaV Explorer, right-click the affected H1 card and select “Decommission” to cleanly remove it from the controller’s I/O map. Do not skip this step — pulling a card without decommissioning can cause the controller to generate spurious alarms and may affect adjacent cards in the same carrier.

2. Note the card slot position. The KJ3242X1-BA1 is slot-addressed within the DeltaV I/O subsystem — the replacement card will inherit the same address automatically upon insertion, provided the carrier and controller configuration are intact. No DIP switch or jumper setting is required on this card; addressing is handled electronically by the DeltaV system.

3. Disconnect the H1 segment cable from the card’s fieldbus connector before removal. Label the connector if you have multiple segments on the same carrier to avoid cross-connection on reinstallation.

4. Slide the failed card out of the carrier. Inspect the carrier backplane connector for bent pins or corrosion — a damaged carrier connector is a common secondary cause of repeat card failures that gets overlooked during emergency swaps.

5. Insert the replacement KJ3242X1-BA1 into the same slot. The DeltaV system will automatically detect and commission the new card. Watch DeltaV Explorer — the card icon should transition from grey to green within 60–90 seconds as the controller re-establishes communication with the H1 segment devices.

6. Reconnect the H1 segment cable. Verify device communication is restored in DeltaV Explorer and confirm all field device diagnostics are clear before returning the loop to automatic control.

Firmware Compatibility Note: The KJ3242X1-BA1 does not require manual firmware flashing in the field. DeltaV will automatically download the appropriate firmware to the card during commissioning if the system is running a supported version. Confirm your DeltaV system version is current with Emerson’s compatibility matrix — very old DeltaV versions (pre-v10) may require a system software update before the card is recognized correctly.

Common Fault Codes to Know:

— “H1 Card Communication Failure”: Card hardware fault or carrier backplane issue. Replace card first; inspect carrier if fault persists.
— “Segment Power Loss”: Check H1 power conditioner, not the card itself.
— “Device Not Responding” on multiple devices simultaneously: Points to card or segment wiring, not individual device failure.
— “Card Mismatch” after replacement: Verify you have the correct variant (BA1 suffix) — different suffix variants have different segment counts and are not interchangeable.

Reliability in Harsh Conditions

The KJ3242X1-BA1 was engineered for the realities of industrial process environments — not a climate-controlled server room. Emerson’s DeltaV I/O hardware is designed and tested to operate continuously in ambient temperatures from 0°C to 60°C, with humidity tolerance up to 95% non-condensing. The card’s conformal-coated PCB provides a protective barrier against airborne contaminants common in chemical plants and offshore platforms: hydrogen sulfide, chlorine compounds, salt fog, and industrial dust.

Vibration resistance meets IEC 68-2-6 standards, making the card suitable for installation in environments with continuous mechanical vibration — pump rooms, compressor buildings, and skid-mounted control panels where the cabinet itself is subject to structural vibration. The DeltaV carrier and card locking mechanism provides positive mechanical retention that prevents card unseating under vibration, a failure mode that plagues cheaper I/O architectures.

For installations in high-humidity tropical environments or coastal facilities, we recommend inspecting the card’s edge connector and carrier backplane contacts annually for oxidation. A light application of contact cleaner during planned maintenance shutdowns extends card service life significantly. Units sourced from us are inspected for connector integrity before dispatch — corroded or oxidized contacts are a primary cause of intermittent communication faults that are notoriously difficult to diagnose in the field.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geographic position gives us consistent, reliable access to DHL Express, FedEx International Priority, and UPS Worldwide Express services with daily cutoff times that allow same-day dispatch for orders confirmed before 15:00 CST.

Typical transit times from Xiamen to major industrial regions: Southeast Asia (Singapore, Malaysia, Thailand) 2–3 business days; Middle East (UAE, Saudi Arabia, Qatar) 3–4 business days; Europe (Germany, Netherlands, UK) 3–5 business days; North America (USA, Canada) 4–5 business days; Australia and New Zealand 3–4 business days. These are express service estimates — economy options are available for non-urgent requirements at reduced cost.

Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers in countries with specific import requirements (e.g., CE documentation for EU, SABER for Saudi Arabia), we prepare the necessary supporting documentation as part of the standard export package. Dangerous goods classification does not apply to this module — it ships as standard industrial electronics with no special handling surcharges.

Real-time tracking is provided via DHL/FedEx tracking number issued at dispatch. For critical shutdown situations, we can arrange airport-to-airport freight with customer pickup at the destination airport to eliminate last-mile delivery delays. Contact us directly to arrange expedited logistics for genuine plant emergency situations.
