Emerson KJ4001X1-NA1 12P3373X022 DCS Interface Card – DeltaV Series

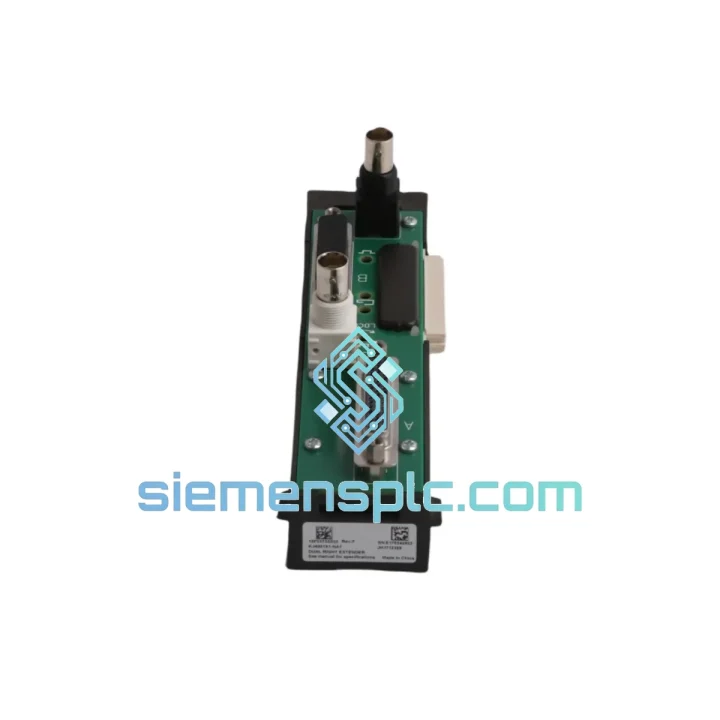

Emerson KJ4001X1-NA1 12P3373X022 — Horizontal LocalBus Dual Interface Card in the DeltaV Distributed Control Architecture

The Emerson KJ4001X1-NA1 (reference part number 12P3373X022) is a horizontal-mount, dual-channel LocalBus interface card engineered specifically for the Emerson DeltaV Distributed Control System platform. Within a DeltaV I/O subsystem, this module occupies the interface layer between the controller backplane and the downstream I/O carrier assemblies. Its dual-channel architecture allows a single card to maintain simultaneous communication with two independent LocalBus segments, which is the foundational mechanism enabling I/O redundancy and deterministic scan-cycle integrity across the entire DeltaV node.

In continuous-process industries — petroleum refining, ethylene cracking, pharmaceutical batch synthesis, and combined-cycle power generation — the LocalBus interface card is not a peripheral component. It is the arbitration point for every I/O transaction between the DeltaV controller and its field devices. A degraded or failed KJ4001X1-NA1 does not produce a graceful degradation; it produces a hard I/O subsystem fault that forces the controller into a safe-state hold, triggering process shutdowns that cost operators measurable production losses per hour. Maintaining a verified spare of this module is standard practice in any DeltaV site with a documented spare-parts strategy.

The horizontal form factor of the KJ4001X1-NA1 is not an aesthetic choice — it is a mechanical constraint imposed by the DeltaV horizontal I/O subsystem enclosure geometry. The card seats into a dedicated slot on the horizontal carrier, where its edge connector aligns with the LocalBus backplane traces. Incorrect substitution with a vertical-mount variant will result in physical incompatibility and potential connector damage. Procurement teams must verify the mount orientation against their installed chassis revision before ordering.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KJ4001X1-NA1 implements a dual-port LocalBus transceiver architecture. Each channel operates as an independent logical bus master capable of initiating read/write cycles to the I/O carrier assemblies attached to that segment. The dual-channel design is not a simple electrical split of a single bus — each channel maintains its own arbitration state machine, ensuring that a fault condition on one segment (e.g., a shorted I/O module pulling a bus line low) does not propagate to the second channel. This isolation is implemented at the silicon level through dedicated bus driver ICs with per-channel fault detection and automatic tri-state fallback.

From an EMC standpoint, the card incorporates common-mode chokes on each LocalBus differential pair, suppressing conducted noise from adjacent power supply switching transients. The PCB layer stack uses a dedicated ground plane between the signal routing layers, providing a controlled impedance environment for the LocalBus differential signals and reducing susceptibility to radiated interference from variable-frequency drives and high-current contactors commonly present in DeltaV installation environments.

The horizontal mounting geometry positions the card’s edge connector perpendicular to the enclosure airflow path, which is intentional: the card’s thermal dissipation is managed by convective airflow across the PCB surface rather than by conduction through the chassis. This design choice allows the card to operate within its rated temperature envelope even in enclosures where the cooling fan has degraded, provided ambient temperature remains within specification — a meaningful reliability margin in remote or unmanned process installations.

The 12P3373X022 revision designation indicates a specific PCB revision and firmware build that Emerson uses for traceability in its manufacturing and field-service documentation. When ordering replacement units, specifying both the part number and the revision code ensures that the replacement card matches the firmware baseline of the installed system, avoiding potential compatibility issues with older DeltaV controller firmware versions that may not support later hardware revisions without a corresponding software update.

System Integration Benefits

• Deterministic I/O Scan Cycle: The dual-channel LocalBus architecture allows the DeltaV controller to maintain its configured scan period without jitter introduced by bus contention, because each channel services a defined subset of I/O carriers independently.
• Fault Isolation at the Subsystem Level: A hardware fault on one LocalBus channel is reported as a discrete diagnostic event in DeltaV Diagnostics Explorer, allowing maintenance personnel to identify the affected I/O segment without interrupting the second channel’s operation.
• Hot-Swap Compatibility: The KJ4001X1-NA1 is designed for live replacement within the DeltaV horizontal I/O subsystem, subject to the controller’s configured redundancy mode, reducing mean time to repair (MTTR) without requiring a full process shutdown.
• Transparent Diagnostics Integration: Module health status, bus error counters, and channel activity flags are exposed through the DeltaV diagnostic data highway, accessible from any DeltaV workstation running DeltaV Diagnostics without requiring physical access to the enclosure.
• Redundancy Architecture Support: In high-availability DeltaV configurations, the dual-channel design provides the physical layer foundation for I/O redundancy schemes where each channel connects to a separate I/O carrier set, enabling continued process control if one carrier assembly fails.
• Backward Compatibility: The KJ4001X1-NA1 is compatible with DeltaV S-series and M-series controller platforms across multiple DeltaV software generations, reducing the complexity of spare-parts inventory management for sites running mixed controller generations.
• Reduced Wiring Complexity: By consolidating two LocalBus channels onto a single card, the KJ4001X1-NA1 reduces the number of interface slots consumed in the horizontal carrier, freeing slots for additional I/O modules and increasing the effective I/O density of the subsystem.
• Standardized Replacement Procedure: Emerson’s field-service documentation for the KJ4001X1-NA1 provides a step-by-step replacement procedure that does not require controller re-commissioning in most configurations, allowing trained maintenance technicians to complete the replacement within a single maintenance window.
• Long-Term Parts Availability: As a widely deployed DeltaV spare, the KJ4001X1-NA1 is supported by a global network of authorized distributors and tested-surplus suppliers, ensuring parts availability for DeltaV installations with extended operational lifespans of 15–20 years.

Quality Assurance & Global Logistics

Every KJ4001X1-NA1 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Visual inspection covers PCB surface condition, connector pin integrity, and housing for evidence of thermal stress or mechanical damage. Part number and revision markings are cross-referenced against Emerson’s published documentation to confirm authenticity. Where test fixtures are available, functional verification is performed against a reference DeltaV I/O carrier to confirm LocalBus communication on both channels prior to shipment.

Packaging follows ESD-safe protocols: each card is sealed in a conductive anti-static bag, cushioned with closed-cell foam, and boxed in a double-wall corrugated carton rated for international air freight handling. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared to comply with customs requirements for the destination country, minimizing clearance delays for time-critical spare-parts shipments.

Logistics options include DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to major industrial hubs in Southeast Asia, the Middle East, Europe, and the Americas. For urgent plant-down situations, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. All shipments are tracked end-to-end, with tracking numbers provided within 2 hours of dispatch confirmation.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 24 hours, and replacement units are dispatched from stock where available to minimize customer downtime.
