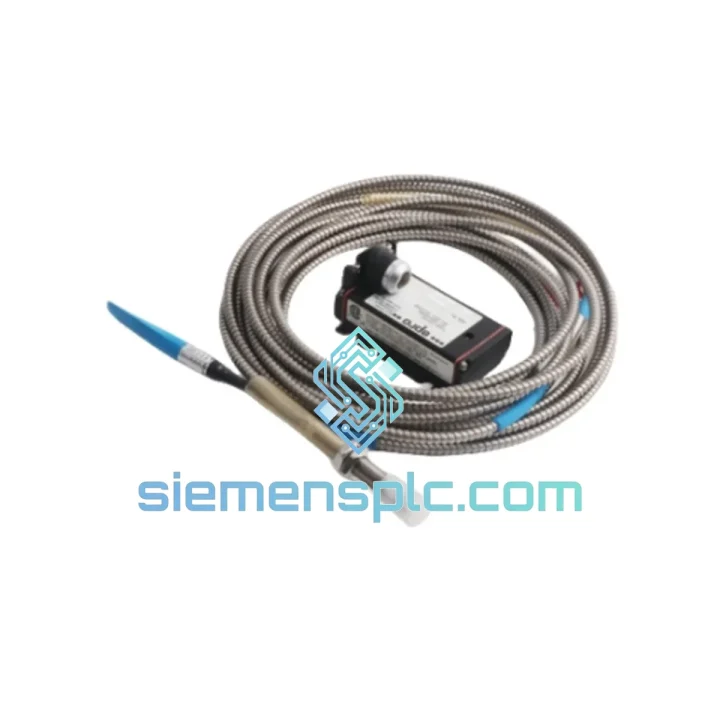

EMERSON PR6423/014-121 CON031 Eddy Current Sensor

EMERSON PR6423/014-121 CON031 — Stop the Clock on Your Downtime

Every hour your turbine, compressor, or pump sits idle because of a failed proximity sensor is money bleeding out of your operation. The PR6423/014-121 paired with CON031 signal conditioner is one of the most widely deployed eddy current sensor assemblies in rotating machinery protection systems worldwide — and when it fails, you need a verified replacement on-site today, not in three weeks. We stock it. We ship it. We’ve done this hundreds of times.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

In ten years of field work, the PR6423/014-121 fails in predictable ways. Here’s what to check before you pull the trigger on a full replacement — and what to watch when you install the new one.

Common Fault Signatures:

• OK-to-NOT OK relay trip with no process change: 90% of the time this is cable damage between the probe and the CON031 junction box — check the extension cable first. The PR6423 probe itself is rarely the primary failure point unless there’s been a direct mechanical strike or severe thermal event.
• Drift on the vibration channel (slow, over weeks): Probe tip contamination or target surface oxidation. Clean the target with fine emery cloth and re-gap before condemning the sensor.
• Hard fault — output rail-high or rail-low immediately on power-up: CON031 conditioner failure or open circuit in the coaxial cable. Swap the CON031 first; it’s cheaper and faster to test.
• Intermittent signal spikes correlating with ambient temperature: Connector corrosion at the probe-to-extension cable junction. Common in humid coastal or offshore environments. Clean with contact cleaner and re-torque.

Replacement Procedure — Key Steps:

• 1. Gap setting is critical. The PR6423/014-121 must be gapped to 1.0 mm ±0.1 mm from the target surface for the CON031 to operate within its linear range. Use a non-ferrous feeler gauge. Do not rely on thread count alone — shaft runout and bracket tolerances vary.
• 2. No address switches or firmware matching required. This is a passive analog sensor assembly. There is no firmware, no DIP switch configuration, and no self-addressing protocol. Plug-and-play once gapped correctly.
• 3. Match the CON031 revision. If your existing CON031 is a Rev C or earlier, verify the output polarity convention matches your monitor card’s input expectation. Rev D and later CON031 units have a revised output stage. Check your Bently Nevada 3300 or EMERSON Ovation monitor card documentation.
• 4. Verify target material. The PR6423 is calibrated for AISI 4140 steel. If your shaft is stainless, Inconel, or titanium, sensitivity will deviate — recalibrate the gap accordingly using the manufacturer’s material correction factor table.
• 5. Torque the locknut. 15 N·m on the M14 probe body. Under-torqued probes migrate under vibration and cause false trips within days of restart.
• 6. Perform a static gap check before restart. With the machine at rest, confirm the DC output of the CON031 reads between -10 V and -12 V at the 1.0 mm nominal gap. This confirms the assembly is functional before you spin up.

Reliability in Harsh Conditions

The PR6423 series was engineered for environments that destroy lesser sensors. The probe body is constructed from 316L stainless steel with a PEEK (polyether ether ketone) tip — chemically inert, dimensionally stable from cryogenic temperatures to 250 °C short-term excursions. The IP67 rating is not a marketing claim; it reflects full immersion testing to 1 m depth for 30 minutes, which matters when you’re dealing with oil mist, wash-down cycles, or condensation in cold-start scenarios.

Vibration immunity is rated to 20 g continuous across 10–2000 Hz — sufficient for direct mounting on compressor bearing housings where broadband vibration is a constant. The coaxial cable assembly uses a double-shielded construction to reject EMI from VFDs, high-current bus bars, and RF sources common in heavy industrial environments. We have supplied this sensor to petrochemical plants in the Middle East, paper mills in Scandinavia, and LNG terminals in Southeast Asia — all operating continuously in conditions that would be considered extreme by any standard.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch to DHL or FedEx sort facility.
• DHL Express Worldwide: Europe 2–3 business days, Middle East 2–4 days, Southeast Asia 1–2 days, North America 3–5 days.
• FedEx International Priority: Available as alternative for destinations with stronger FedEx coverage (e.g., India, Brazil, Mexico).
• Export documentation: Commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8543.70 for proximity sensors) prepared same day. No delays at customs from missing paperwork.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided.
• Emergency freight: For critical shutdowns requiring next-flight-out courier, contact us directly on WhatsApp. We have handled same-day airport-to-airport arrangements for refinery clients.
