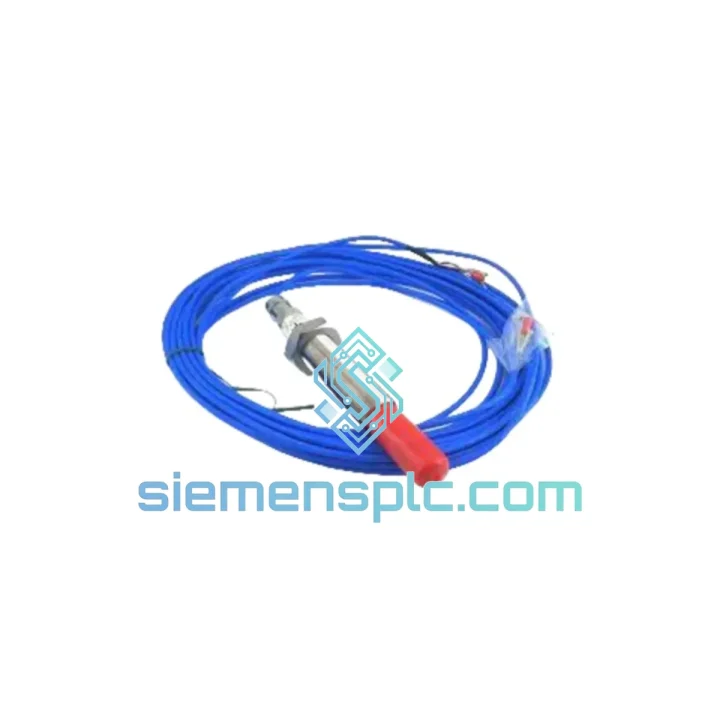

EPRO MMG 1070/04TS Proximity Probe

EPRO MMG 1070/04TS Proximity Probe — Stop the Clock on Your Unplanned Shutdown

Every hour your turbine, compressor, or critical rotating machine sits idle costs real money. When the MMG 1070/04TS throws a fault or physically fails, you don’t have time to chase a 6-week lead time from a regional distributor. We stock this sensor. We ship from Xiamen. You get it fast — and your plant gets back online.

The EPRO MMG 1070/04TS is a precision eddy current proximity probe from the MMG 1070 series, engineered for continuous non-contact measurement of shaft radial vibration, axial position, and rotor displacement in API 670-compliant machinery protection systems. It is fully compatible with EPRO PR6423, PR6424, and PR6426 signal conditioners, as well as Bently Nevada 3300 and 3500 series monitors — making it a direct drop-in replacement in the vast majority of existing installations.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, these are the failure modes and swap pitfalls that actually bite engineers on the MMG 1070/04TS:

1. Gap voltage out of linear range — the #1 call-out. The MMG 1070/04TS operates on a –24 VDC supply through the PR6423/PR6424 driver. At correct installation gap (typically 1.0–1.5 mm for a 4 mm range probe), the driver output should read approximately –10 to –12 VDC at mid-gap. If you’re seeing –24 VDC (probe shorted to target) or 0 VDC (open circuit / probe too far), the sensor is either mechanically mispositioned or has failed internally. Before condemning the probe, swap the extension cable first — CON 011/021 cables are a far more common failure point due to connector corrosion and cable fatigue at the conduit entry.

2. Sensitivity drift after high-temperature exposure. The TS suffix indicates standard termination, not high-temperature. If this probe is installed near a bearing housing exceeding 100°C ambient, sensitivity drift is expected over time. Verify with a calibrated gap simulator. If sensitivity has shifted more than ±5% from the 8 mV/µm nominal, replace the probe and consider upgrading to the HT (high-temperature) variant for that position.

3. Replacement gap-setting procedure. When installing a new MMG 1070/04TS, do not rely on the old probe’s locknut position as a reference — thread engagement depth varies between units. Use a digital voltmeter on the driver output and adjust the probe gap until you achieve the target mid-range voltage specified in your system’s calibration record. Torque the locknut to 15–20 Nm after final gap confirmation. Failure to re-gap properly is the leading cause of immediate post-replacement alarms.

4. Driver firmware / monitor channel configuration. The MMG 1070/04TS uses the standard EPRO 8 mV/µm sensitivity curve. If you are replacing into a Bently Nevada 3500 monitor, confirm the channel is configured for the correct probe type and sensitivity in the 3500 Rack Configuration Software. A mismatch here will produce incorrect vibration readings without triggering a hardware fault — a dangerous scenario on a critical machine.

5. Extension cable length matching. The total system (probe + extension cable) must match the driver’s calibrated cable length. Mixing a 5 m probe cable with a 3 m extension on a driver calibrated for 5 m total will shift the sensitivity curve. Always verify total cable length against the driver calibration label.

6. Grounding and shielding. Ground the cable shield at the driver end only. Double-grounding creates ground loops that manifest as 50/60 Hz noise on the vibration signal — often misdiagnosed as a real mechanical fault. If you see a clean sinusoidal noise floor at line frequency after replacement, check your shield grounding immediately.

Reliability in Harsh Conditions

The MMG 1070/04TS is not a lab instrument — it is built for the environments that destroy lesser sensors. The 316L stainless steel probe body resists corrosion from lube oil, steam condensate, and cleaning solvents. The IP67 rating means it survives temporary immersion, which matters when a bearing housing floods during a seal failure event.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the broadband vibration spectrum generated by the very machines it monitors. Thermal cycling between –40°C and +120°C does not degrade the ferrite core or the coil winding — the sensor maintains its calibrated sensitivity across the full operating range without field recalibration under normal service conditions.

The TS connector system uses a positive-locking bayonet mechanism that resists vibration-induced loosening — a failure mode that plagues screw-type connectors in high-vibration installations. In offshore and petrochemical environments where salt fog and humidity are constant, the gold-plated connector pins maintain contact integrity over multi-year service intervals.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items confirmed before 15:00 CST. Here is exactly what happens after you place an order:

Day 0 (Order Confirmed): Unit pulled from bonded warehouse stock, serial number recorded, visual inspection completed, packed in anti-static foam with original EPRO documentation.

Day 0–1 (Export Clearance): Commercial invoice, packing list, and Certificate of Origin prepared. HS Code 9031.80 applied for customs classification. Export declaration filed with Xiamen Customs.

Day 1 (Carrier Handover): Shipment handed to DHL Express or FedEx International Priority — carrier selected based on destination and fastest transit time. AWB number issued and shared with you immediately.

Transit Times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 2–4 days | Americas 3–5 days | Australia/NZ 2–3 days.

For genuine plant-down emergencies, contact us via WhatsApp before ordering — we can pre-stage the shipment and have it moving within hours of payment confirmation. We have supported emergency dispatches to refineries, power stations, and LNG terminals across four continents. When your machine is down, every hour counts, and we treat it that way.
