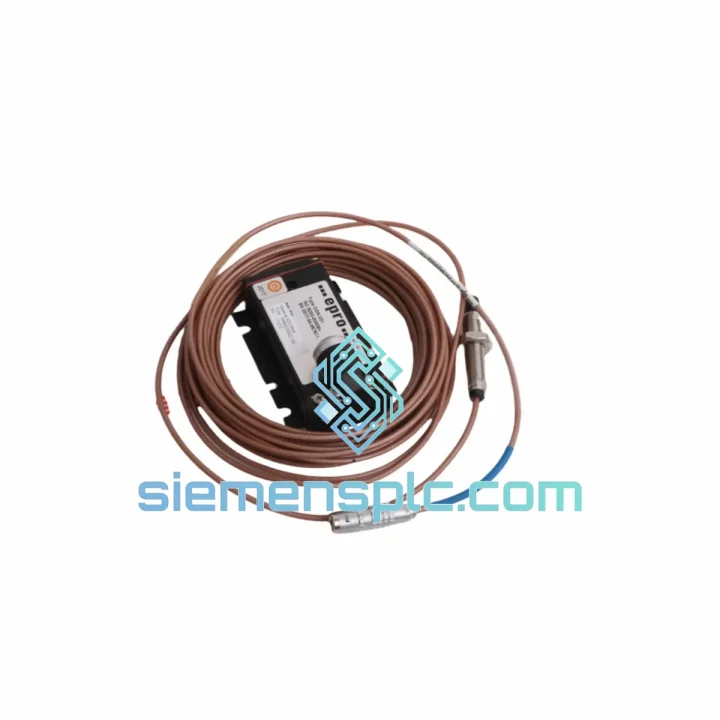

EPRO PR6423/002-130 CON021 Eddy Current Sensor

PR6423/002-130 CON021 — Every Minute of Downtime Costs You Money. We Ship Today.

Your vibration monitoring chain just went dark. The shaft is running blind. Whether it’s a steam turbine in a power plant, a centrifugal compressor on an offshore platform, or a critical feed pump in a refinery — losing your EPRO PR6423/002-130 CON021 eddy current sensor means your entire rotating machinery protection system is compromised. API 670 compliance is out the window. Your machinery is exposed.

We stock the PR6423/002-130 CON021. It ships from Xiamen today via DHL Express. You get it in 2–5 business days, anywhere on the planet. That’s the difference between a controlled maintenance window and a catastrophic unplanned outage.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes for the PR6423/002-130 CON021:

1. Gap voltage out of range (most frequent call I get at 2 AM)
The CON021 conditioner outputs a DC bias voltage proportional to probe gap. Nominal gap for an 8 mm probe on a steel target is typically 1.0–1.5 mm, corresponding to roughly –10 VDC to –12 VDC output. If your monitor is throwing a “Not OK” or gap alarm, check the gap first before condemning the sensor. Use a feeler gauge. If gap is correct and voltage is still wrong, the probe is dead — replace it.

2. Intermittent signal / noise spikes
Ninety percent of the time this is a connector issue, not the probe. The CON021 connector is a push-pull locking type. Vibration loosens it over time. Reseat the connector, apply thread-lock if the environment is high-vibration. If noise persists after reseating, check the extension cable for chafing against machine surfaces — a pinched cable shield causes exactly this symptom.

3. Probe body cracked or tip damaged
This happens during bearing replacement when someone gets careless with a wrench near the probe mount. The ceramic tip is not repairable. Order a new PR6423/002-130 CON021 and do it right.

Replacement procedure — field checklist:

• De-energize the monitor rack before disconnecting the probe. Hot-swapping can cause a false trip on some MMS 6000 configurations.
• Record the existing gap voltage before removal. You’ll use this to set the new probe gap.
• Clean the probe mount threads. Apply anti-seize compound — not thread-lock — on the probe body threads. Torque to manufacturer spec (typically 2–3 Nm for M8 probe bodies).
• Set gap to achieve the same DC bias voltage as the original installation. Do not assume the mechanical gap is identical to the previous probe — manufacturing tolerances exist.
• Verify the CON021 conditioner output is within the linear range before returning the machine to service. Check both static gap voltage and dynamic response if a slow-roll is possible.
• No firmware update required for a like-for-like PR6423/002-130 CON021 swap. The signal conditioner does not need reconfiguration if the probe series and cable length are identical.
• If replacing into an MMS 6000 or MMS 3000 rack, verify the channel configuration in the monitor software matches the probe sensitivity (typically 8 mV/µm for standard PR6423 probes on steel targets).

Common fault codes you may see before the probe fails completely:

• “GAP HIGH” / “GAP LOW” — Probe gap outside linear range. Check mechanical clearance first.
• “NOT OK” — Conditioner output outside –2 VDC to –18 VDC window. Probe or cable open circuit.
• “DANGER HIGH” — Vibration amplitude exceeded danger setpoint. Could be real vibration or a failing probe generating noise. Trend data will tell you which.

Reliability in Harsh Conditions

The PR6423 Series was not designed for a climate-controlled instrument room. It was designed for the bearing pedestal of a 50 MW steam turbine running at 3,000 RPM in a tropical power plant with 95% humidity and 60°C ambient. That’s the baseline.

The probe body is machined from stainless steel with a ceramic-filled epoxy tip — chemically resistant to lubricating oils, hydraulic fluids, and the cleaning solvents your maintenance crew will inevitably spray near it. The integral cable uses a PTFE-insulated coaxial construction that maintains signal integrity even when the cable surface temperature exceeds 100°C from radiated heat off the bearing housing.

Vibration immunity is not a marketing claim here — the PR6423 probe has no moving parts. There is nothing to fatigue, nothing to wear, nothing to resonate. The only failure modes are mechanical damage (someone hit it) or electrical degradation (moisture ingress through a damaged connector seal). Both are visible on inspection. Neither happens suddenly without warning in a properly maintained installation.

In offshore and marine applications where salt spray and condensation are constant, the IP67 rating of the probe assembly provides genuine protection — not just a lab test result. We’ve shipped PR6423 probes to LNG terminals in Qatar, compressor stations in Siberia, and geothermal plants in Indonesia. The operating environment range of –50°C to +180°C covers virtually every industrial application on earth.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the most logistics-efficient export hubs in Asia, with direct DHL Express and FedEx International Priority connections to every major industrial hub globally.

Standard export process for the PR6423/002-130 CON021:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express airway bill generated, tracking number sent to you within 2 hours of pickup.
• Transit times (DHL Express): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days | Africa 4–6 days.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared to your import requirements. HS Code 9031.80 (precision measurement instruments) — we handle customs classification correctly so your shipment clears without delay.
• Packaging: Anti-static foam insert, rigid outer carton, moisture-barrier bag. The probe tip is protected with a machined plastic cap. It arrives in the same condition it left our warehouse.
• FedEx International Priority available as an alternative carrier for destinations where DHL coverage is limited.
• Freight forwarder consolidation available for multi-line orders or when your company has a preferred forwarder account.

We understand that when you’re ordering a replacement sensor, your machine is either already down or you’re racing to beat a shutdown window. We treat every order for a critical spare as urgent by default. No chasing required.
