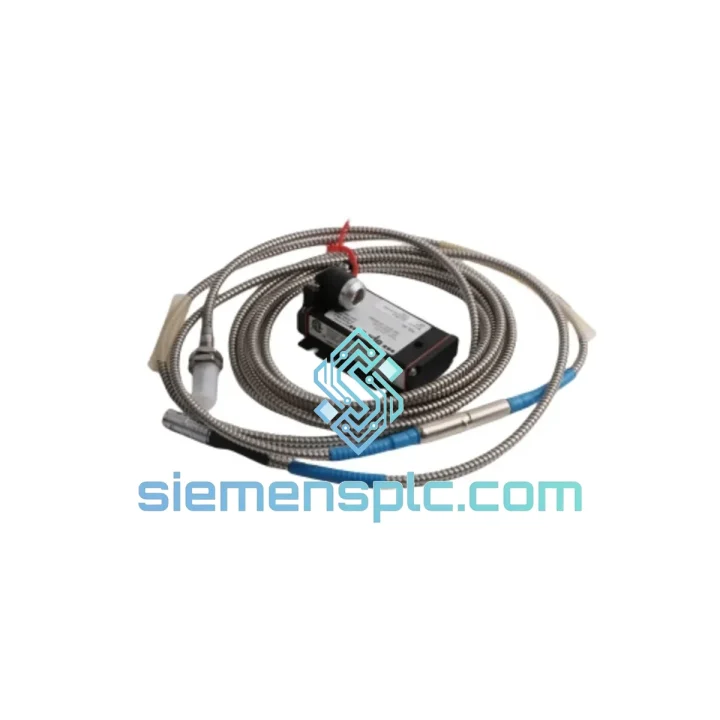

EPRO PR6423/010-000 CON021 Eddy Current Displacement Sensor — Core Role in Rotating Machinery Protection Loops

In any turbomachinery protection architecture, the shaft displacement sensor is the first line of defense. The EPRO PR6423/010-000 CON021 is an 8 mm eddy current probe assembly paired with the CON021 signal conditioner, engineered to deliver continuous, non-contact radial and axial displacement measurements on rotating shafts. Its output feeds directly into machinery protection systems — EPRO MMS 6000 series, Bently Nevada 3500 racks, or equivalent — where trip logic, alarm thresholds, and trend data are processed in real time. A failed or degraded sensor in this position means blind operation: no vibration data, no axial position feedback, no early warning before a catastrophic bearing failure. Sourcing a verified replacement unit with the shortest possible lead time is not a procurement decision — it is an operational imperative.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PR6423/010-000 operates on the principle of electromagnetic induction: the probe tip houses a wound coil driven by a high-frequency oscillator within the CON021 conditioner, typically at 1 MHz. When the probe approaches a conductive target (the rotating shaft), eddy currents are induced on the target surface. These currents create a counter-magnetic field that loads the oscillator circuit, reducing its amplitude in direct proportion to the probe-to-target gap. The CON021 demodulates this amplitude-modulated signal and outputs a DC voltage linearly proportional to displacement — nominally −2 V at 0.25 mm gap and −18 V at 2.25 mm gap.

EMC Design: The coaxial cable between probe and conditioner is a critical EMI path. EPRO specifies a triaxial cable construction for the PR6423 series: the inner conductor carries the oscillator signal, the inner shield is driven at the same potential as the inner conductor (guard drive), and the outer shield is grounded. This driven-shield topology eliminates cable capacitance effects and rejects common-mode interference from adjacent power cables, VFD switching noise, and ground potential differences — a persistent problem in turbine hall environments where cable runs can exceed 10 m and ground loops are common.

Thermal Stability: The probe coil is wound on a ceramic former with a low thermal expansion coefficient. Combined with the temperature-compensated oscillator in the CON021, the system maintains sensitivity drift below ±0.5% over the full −40 °C to +120 °C operating range. This is essential for steam turbine applications where bearing housing temperatures can shift 60–80 °C between cold startup and full-load operation.

Mechanical Robustness: The probe body is machined from stainless steel with a hermetically sealed tip. The cable exit is strain-relieved and potted with epoxy to withstand continuous vibration at the probe mounting point — a location that itself experiences the vibration being measured. EPRO specifies the probe assembly to survive 50 g shock and 10 g continuous vibration per IEC 60068-2.

System Integration Benefits

• Direct API 670 Compliance: The PR6423/010-000 + CON021 assembly meets the probe-conditioner performance requirements of API 670 (5th edition), allowing direct integration into certified machinery protection systems without additional qualification testing.
• Deterministic DC Output: The −2 V to −18 V DC output is a static, low-impedance signal that interfaces directly with monitoring module input cards (e.g., EPRO MMS 6110, MMS 6120) without signal conditioning at the rack — reducing latency in the measurement chain to under 1 ms.
• Plug-Compatible Replacement: The PR6423/010-000 CON021 is dimensionally and electrically interchangeable with earlier PR6423 variants and Bently Nevada 3300 XL 8 mm probe systems (with appropriate conditioner pairing), enabling like-for-like field replacement without rewiring or reconfiguration.
• Diagnostic Transparency: The CON021 conditioner provides a buffered output that allows simultaneous connection to both the protection system and a portable data collector or online condition monitoring system — enabling parallel protection and predictive maintenance data streams from a single sensor installation.
• No Mechanical Wear: Non-contact measurement eliminates the degradation mechanisms (friction, contamination, mechanical fatigue) that affect contact-type displacement transducers. Mean time between replacement is determined by environmental factors, not mechanical wear cycles.
• Wide Bandwidth for Subsynchronous Detection: The DC-to-10 kHz frequency response captures not only 1× and 2× running speed vibration but also subsynchronous instabilities (oil whirl, surge precursors) that are the earliest indicators of bearing or seal deterioration in high-speed machinery.
• Standardized Connector Interface: The CON021 uses a standard M12 or terminal block interface (per installation variant), compatible with existing cable infrastructure in EPRO and Bently Nevada rack installations — no adapter cables required during emergency replacement.
• Calibration Traceability: Each PR6423 probe is factory-calibrated against AISI 4140 steel targets. Calibration data is traceable to national metrology standards, supporting ISO 17025-compliant maintenance records for regulated industries (nuclear, petrochemical, power generation).

Quality Assurance & Global Logistics

Genuine EPRO Product: Every PR6423/010-000 CON021 unit dispatched from siemensplc.com is sourced through verified industrial supply channels. Physical inspection covers probe tip geometry, cable jacket markings, conditioner label authenticity, and connector pin integrity. Units that fail any inspection criterion are quarantined and not offered for sale.

Functional Verification: Where test equipment permits, probe-conditioner assemblies are bench-verified using a calibrated steel target at known gap distances to confirm output voltage linearity before packaging.

Packaging: Units are shipped in anti-static, moisture-barrier packaging with foam cushioning. The probe tip is protected by a machined cap. Documentation included: inspection record, packing list, and available factory datasheet.

12-Month Warranty: All units carry a 12-month warranty against manufacturing defects from the date of dispatch. Defective units are replaced or credited — return shipping costs covered by siemensplc.com for confirmed warranty claims.

Global Express Logistics from Xiamen, China: Our warehouse is located in Xiamen, Fujian Province — a major export hub with direct DHL, FedEx, and UPS service to over 220 countries. Standard export documentation (commercial invoice, packing list, certificate of origin, HS Code 9031809090) is prepared same-day. For urgent requirements, DHL Express and FedEx International Priority typically achieve delivery within 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. Customs pre-clearance documentation is prepared in advance to minimize border delays. LCL sea freight is available for bulk orders requiring cost optimization over speed.
