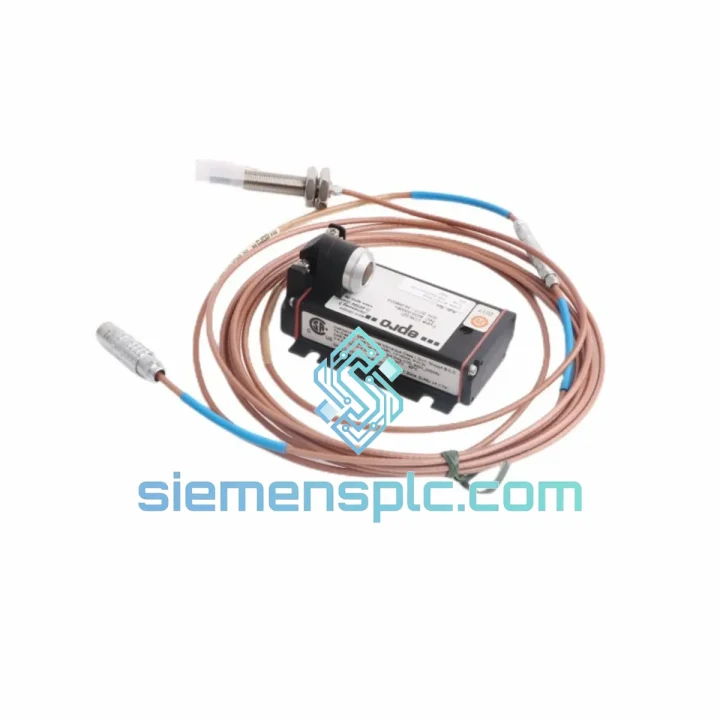

EPRO PR6423/014-040 CON021 Proximity Sensor – PR6423 Series

EPRO PR6423/014-040 CON021 — Eddy Current Proximity Sensor in Machinery Protection Loop Architecture

The PR6423/014-040 CON021 is a 14 mm eddy current proximity sensor from EPRO, factory-matched with the CON021 signal conditioning driver. Within a machinery protection control loop, this sensor occupies the primary measurement node: it converts the physical gap between probe tip and rotating shaft into a calibrated DC voltage signal, which downstream monitors and DCS analog input cards use to compute radial vibration amplitude, shaft centerline position, and axial displacement. The measurement chain is deterministic — no moving parts, no contact wear, no signal drift from mechanical fatigue. This makes the PR6423/014-040 CON021 the correct specification for continuous, unattended operation on critical rotating machinery where a missed alarm has direct safety and production consequences.

The sensor operates on the eddy current induction principle. The probe tip houses a wound coil driven by a high-frequency oscillator (typically 1 MHz carrier) inside the CON021 driver. When the probe tip is positioned within its linear measurement range of a conductive target, eddy currents are induced on the target surface. These eddy currents load the probe coil, reducing its effective impedance. The CON021 demodulator circuit converts this impedance change into a DC output voltage proportional to gap distance — nominally 8 mV/µm sensitivity across a 0–2 mm linear range. The output is a low-impedance DC signal, directly compatible with standard ±10 VDC or 4–20 mA analog input modules on any major DCS or safety PLC platform.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Eddy Current Induction Mechanism and Gap-to-Voltage Transfer Function

The PR6423 probe tip contains a precision-wound sensing coil embedded in a thermally stable ceramic former. The CON021 driver applies a sinusoidal excitation at approximately 1 MHz to this coil via the matched extension cable. At this carrier frequency, the skin depth in AISI 4140 steel is approximately 8–12 µm — meaning eddy currents are confined to a thin surface layer of the target shaft. This shallow penetration depth makes the measurement insensitive to shaft material bulk properties and highly responsive to surface gap changes. The coil impedance varies as a near-linear function of gap distance within the 0–2 mm range, and the CON021 demodulator extracts this impedance variation to produce the calibrated DC output.

Cable-Length Calibration Dependency

The extension cable between probe and CON021 is not a passive conductor — it forms part of the resonant circuit. Cable capacitance and inductance per unit length are specified to tight tolerances, and the CON021 oscillator is tuned to the combined probe-cable impedance at the factory-specified cable length (code 040 = ~1.0 m). Field-cutting or splicing the cable shifts the resonant point, invalidating the factory calibration and introducing non-linearity errors that cannot be corrected by zero/span adjustment alone. This is a critical installation constraint that distinguishes eddy current systems from conventional 4–20 mA transmitters.

EMC Design and Shielding Architecture

The coaxial cable construction provides continuous 360° electrostatic shielding from probe tip to CON021 input. The shield is grounded at the driver end only (single-point grounding) to prevent shield current loops that would introduce 50/60 Hz interference into the measurement signal. The CON021 driver housing is designed for DIN rail or panel mounting with chassis ground isolation, allowing the measurement ground reference to be maintained independently of plant earth potential variations — a significant advantage in industrial environments where ground potential differences between equipment can reach several volts.

Output Stage and Load Drive Capability

The CON021 output amplifier is a low-impedance voltage source with a specified output impedance of less than 100 Ω. This allows the signal to drive multiple parallel loads — for example, a vibration monitor, a DCS analog input card, and a local indicator — without signal attenuation. The output is short-circuit protected and reverse-polarity tolerant, consistent with the requirements of API 670 Section 5.3 for signal output robustness.

System Integration Benefits

• Direct DCS/PLC Analog Input Compatibility: The −2 VDC to −18 VDC output maps directly to standard ±10 VDC analog input ranges on Siemens S7-300/400/1500 AI modules, ABB AC800M, Emerson DeltaV, and Honeywell Experion without signal conditioning adapters.
• API 670 Compliance for EPC Acceptance: Machinery protection specifications on oil & gas and power generation projects universally reference API 670. PR6423/014-040 CON021 compliance eliminates specification deviation discussions during FAT and commissioning.
• Zero Mechanical Wear — Predictable MTBF: Non-contact measurement eliminates the wear mechanisms that limit contact-type sensors. Field MTBF data for PR6423 series sensors in continuous turbomachinery service exceeds 100,000 hours under normal operating conditions.
• DC-to-10 kHz Bandwidth for Full Vibration Spectrum Coverage: The flat frequency response from DC captures static shaft position (gap) and dynamic vibration simultaneously on a single channel, reducing channel count and wiring compared to separate position and vibration transducers.
• Deterministic Signal Latency: The analog output signal has no digital processing latency. The gap-to-voltage conversion is continuous and instantaneous, making the sensor suitable for high-speed protection trip loops where signal latency must be below 1 ms.
• Factory-Matched Set Eliminates Field Calibration: The probe, cable, and CON021 driver are calibrated as a matched set at the factory. Replacement of a complete matched set requires only gap verification at the installed position — no span or sensitivity adjustment is needed, reducing commissioning time.
• Hazardous Area Deployment via ATEX Variants: ATEX-certified PR6423 variants support Zone 1 and Zone 2 classified area installation, enabling deployment on compressor trains and turbines in hydrocarbon processing facilities without additional intrinsic safety barriers in the probe circuit.
• Wide Operating Temperature Envelope Covers Turbine Bearing Housing Conditions: The probe tip rating of −35°C to +120°C covers the full range from cold-climate outdoor installations to high-temperature bearing housing environments on steam turbines, without requiring probe cooling or heat shielding in most applications.
• Compatible with EPRO MMS 6000 and Bently Nevada 3500 Monitor Racks: The CON021 output is electrically compatible with both EPRO and Bently Nevada monitor input specifications, providing flexibility in mixed-vendor machinery protection system architectures.
• Shaft Orbit Analysis Capability: Two PR6423 probes mounted at 90° on the same bearing plane provide X-Y shaft position data. When fed to a vector computation module or historian, this enables shaft orbit plots for rotor dynamic diagnostics — a capability not achievable with accelerometer-based vibration sensors.

Quality Assurance & Global Logistics

Every PR6423/014-040 CON021 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full traceability to authorized EPRO / Baker Hughes supply chains. Units are not refurbished, reconditioned, or grey-market sourced. Each shipment is accompanied by a packing list and, upon request, a certificate of conformance and country-of-origin documentation suitable for regulated procurement processes in the oil & gas, power generation, and petrochemical sectors.

Pre-shipment inspection covers visual integrity of the probe tip and coil housing, coaxial cable continuity and shield integrity, CON021 driver connector seating, and original manufacturer packaging verification. Units that do not pass inspection are quarantined and not dispatched.

Logistics operations are based in Xiamen, China, with established export documentation workflows for commercial invoice, packing list, and certificate of origin. Standard international carriers used include DHL Express, FedEx International Priority, and UPS Worldwide Expedited. For large-volume orders, sea freight via Xiamen Port (XMN) is available with full export customs clearance support. Typical DHL Express transit times: Southeast Asia 2–3 days, Europe 3–5 days, North America 4–6 days, Middle East 3–4 days. Emergency air freight for shutdown-critical parts can be arranged with same-day dispatch for orders confirmed before 14:00 CST.

A 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Warranty claims are processed with replacement unit dispatch upon receipt and inspection of the returned item. Technical support for installation, gap setting, and system integration is provided at no charge by our engineering team.
