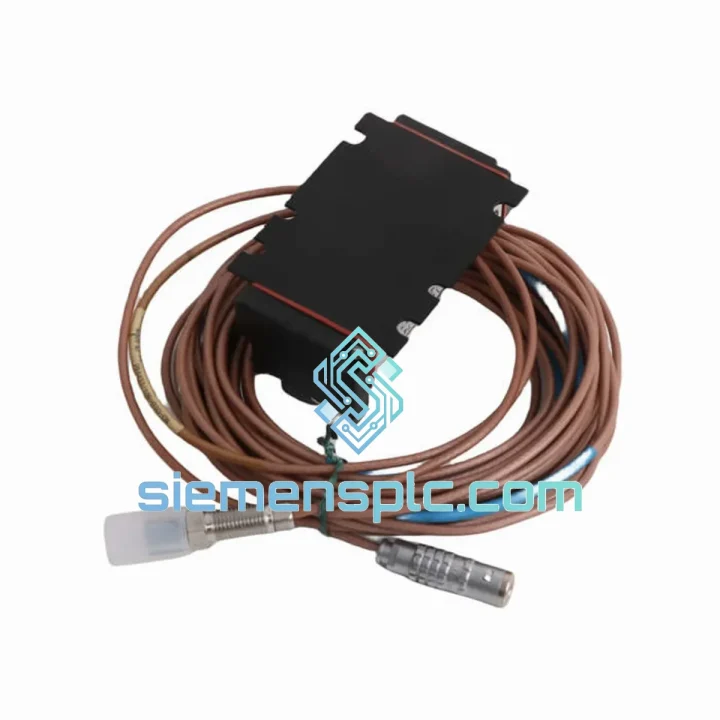

EPRO PR6423/10R-141 CON031 Eddy Current Sensor

PR6423/10R-141 CON031 — Stop the Clock on Your Downtime. Ship Today.

Your turbine is offline. The protection system tripped on a proximity probe fault. Every hour the machine stays down, you’re burning through production targets, maintenance budgets, and management patience. You don’t need a sales pitch — you need the part, tested, boxed, and moving toward your facility before end of business. The EPRO PR6423/10R-141 CON031 is on our shelf in Xiamen. We’ve shipped this exact sensor to compressor stations in the Middle East, power plants in Southeast Asia, and refineries in Europe — all on emergency timelines. This is what we do.

The PR6423/10R-141 CON031 is a 10 mm tip diameter eddy current proximity probe with a 141 mm armored extension cable and CON031 bayonet connector, purpose-built for shaft vibration and radial displacement measurement in rotating machinery protection systems. It operates within the EPRO PR6423 measurement chain — one of the most widely deployed non-contact sensing platforms in turbomachinery protection globally, now under the Baker Hughes / Bently Nevada umbrella. If your plant runs API 670-compliant machinery protection, this probe is almost certainly in your system somewhere.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here’s what actually goes wrong with PR6423-series probes — and what to check before you condemn the sensor:

1. Verify the gap voltage first. The most common misdiagnosis is a probe declared faulty when the real culprit is a shifted mounting bracket or a worn shaft journal. Before pulling the probe, measure the DC gap voltage at the driver output. For a 10 mm probe with standard 5 m cable, nominal gap voltage at 1.0 mm air gap should read approximately −10 VDC (driver-dependent). If gap voltage is wildly off but the probe impedance checks out, look at the mechanical setup before ordering a replacement.

2. CON031 connector integrity. The bayonet lock on CON031 connectors is robust but not immune to vibration-induced fretting. In high-vibration environments — gas turbine bearing pedestals, for example — the connector can develop intermittent contact resistance that manifests as erratic vibration readings or spurious trips. Inspect the connector pins under magnification. A probe that reads fine on the bench but faults in service is almost always a connector issue, not a probe failure.

3. Extension cable matching. The 141 mm cable length in this part number is not arbitrary — it’s calibrated as part of the measurement chain. Substituting a different cable length without recalibrating the driver will shift the sensitivity and linearity of the entire system. If you’re replacing only the probe body and reusing an existing cable, confirm the cable length matches the original specification before commissioning.

4. Driver pairing and calibration. When replacing the probe, the associated CON031 driver must be recalibrated to the new probe’s characteristics. EPRO probes are factory-matched to driver calibration curves. Swapping a probe without recalibrating the driver introduces measurement error that may not trigger an alarm but will degrade the accuracy of your protection setpoints. If you don’t have calibration equipment on-site, we can supply a pre-matched probe-driver pair.

5. Common fault codes to cross-reference:

• Bently Nevada 3500/40M — Channel Not OK / Probe Fault: Check gap voltage out of range (typically <−18 VDC or >−2 VDC). Probe open circuit or shorted cable.
• EPRO MMS 6310 — Sensor Fault LED: Driver supply voltage drop (<24 VDC), or probe impedance outside acceptance window. Measure probe tip impedance — should be in the range of 80–120 Ω for a 10 mm probe (exact value per calibration sheet).
• Spurious high vibration readings at startup: Thermal expansion of the shaft journal changing the air gap during warmup. Not a probe fault — review your alarm setpoints for cold-start transients.

Replacement procedure summary: De-energize the driver supply rail → disconnect CON031 at the driver → remove probe from mounting bracket (note the gap setting — measure and record before removal) → install new probe, set gap to original specification using a feeler gauge or dial indicator → reconnect CON031 → re-energize and verify gap voltage → recalibrate driver if required → confirm vibration baseline against historical trend data before returning machine to service.

Reliability in Harsh Conditions

The PR6423 series was not designed for a climate-controlled instrument room. It was designed for the bearing pedestal of a gas turbine running at 3,000 RPM in a tropical refinery, or the compressor train of an LNG facility where ambient temperatures swing 40°C between day and night. The probe body is constructed from 316 stainless steel with a PEEK tip material that resists oil, process fluids, and the aggressive cleaning solvents used during maintenance outages. The armored extension cable is rated for continuous flexing in high-vibration installations — not just static routing.

Vibration resistance is not a marketing claim for this sensor — it’s a design requirement. Eddy current probes mounted on bearing housings experience the same vibration energy they’re measuring. The PR6423/10R-141 CON031 is qualified to withstand the mechanical shock and vibration levels defined in IEC 60068-2 test standards, which cover the real-world conditions found in power generation and oil & gas installations. The CON031 connector’s bayonet locking mechanism provides positive retention under vibration loads that would loosen a standard threaded connector over time.

Temperature performance is equally critical. The probe is rated for continuous operation across the full range of industrial ambient conditions, and the extension cable’s insulation system maintains its dielectric properties in the presence of oil mist and process fluid contamination — a common failure mode for lower-grade proximity probes used as cost-cutting substitutes. When a plant engineer specifies EPRO PR6423, they’re specifying a sensor that won’t introduce a false trip at 2 AM during a peak production run.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most efficient export ports in Asia for industrial components. When you confirm an order, here’s exactly what happens:

Same-day dispatch (orders confirmed before 14:00 CST): The unit is pulled from stock, inspected, photographed, and packed in anti-static, shock-protected packaging with desiccant. Export documentation — commercial invoice, packing list, certificate of origin — is prepared in parallel.

Carrier selection: We ship via DHL Express, FedEx International Priority, or UPS Express depending on your destination and urgency. For most destinations in Europe, the Middle East, and Southeast Asia, DHL Express delivers in 3–5 business days from Xiamen. North America typically runs 4–6 business days. We will quote you the fastest available option for your specific location.

Tracking and documentation: You receive the AWB tracking number within 2 hours of dispatch. All export paperwork is emailed simultaneously. For destinations requiring import permits or specific customs documentation, advise us at order confirmation and we’ll prepare accordingly.

Emergency freight: For genuine production-critical situations, we can arrange next-flight-out courier service to major hub airports. This is not a standard offering — contact us directly on WhatsApp to discuss if your timeline is measured in hours, not days.
