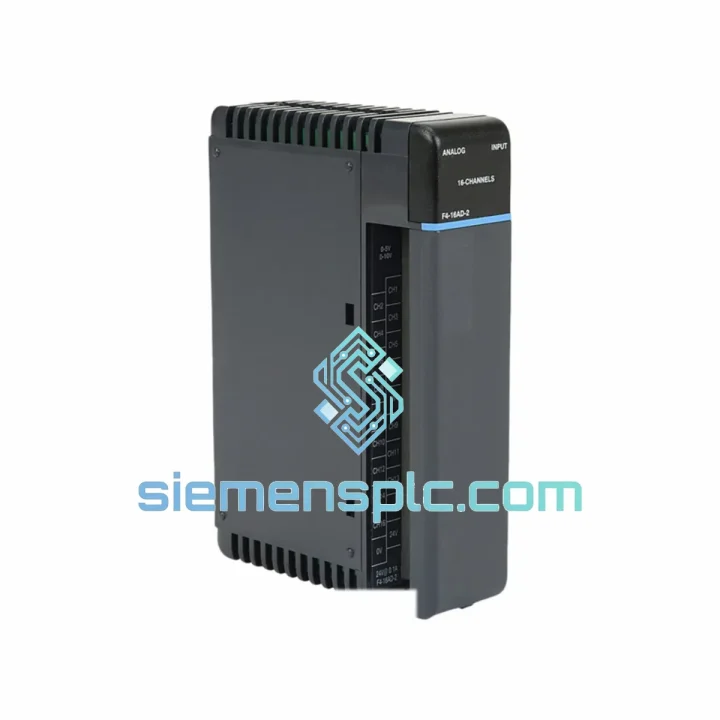

FACTS F4-16AD-2 Analog Input Module

F4-16AD-2 Down? Every Minute Costs You — Get Back Online Before the Next Shift

Your analog input module just failed. Sixteen channels of process data — temperature loops, pressure transmitters, flow signals — all gone dark simultaneously. The PLC is running blind. Your operators are staring at flatlined HMI screens. Production is stopped. You already know what this costs per hour. The question is how fast you can fix it.

The FACTS Engineering F4-16AD-2 is in stock at our Xiamen warehouse. We ship DHL Express and FedEx International Priority daily. If you’re reading this during business hours, your replacement module can be on a plane tonight.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here are the failure patterns I see most often with the F4-16AD-2 — and what to watch for when you swap it out.

Common Failure Signatures:

• All 16 channels reading 0 or max-scale simultaneously — classic backplane communication loss. Before condemning the module, reseat it firmly and check the backplane connector pins for corrosion or bent contacts. If the fault persists after reseating, the module’s internal A/D converter or bus interface IC has failed.
• Intermittent channel dropouts on 4–20 mA loops — check field wiring first. A broken shield drain or loose terminal screw causes exactly this symptom. If wiring checks out, the input protection circuitry on that channel has degraded, typically from a transient overvoltage event.
• Channels reading correctly but with excessive noise (±5% swing on stable process) — ground loop issue 80% of the time. Verify that field device signal commons are not tied to earth at multiple points. If grounding is clean, the module’s internal filter capacitors are failing — replace the module.
• CPU fault code pointing to I/O rack slot — note the exact slot number from the DirectSOFT diagnostic screen before pulling the module. You’ll need it to verify the replacement is recognized in the same slot position.

Replacement Procedure — Critical Steps:

• Power down the rack before removal. The F4 Series backplane does not support hot-swap on analog modules. Pulling the F4-16AD-2 under power risks corrupting the CPU’s I/O table and can damage the backplane bus driver.
• No DIP switch configuration required on the F4-16AD-2 — slot addressing is handled automatically by the F4 backplane. The CPU recognizes the module by its physical slot position, not a hardware address. Confirm the replacement is seated in the identical slot as the failed unit.
• Firmware matching: The F4-16AD-2 does not carry user-upgradeable firmware. However, verify your CPU firmware version is compatible with the module revision. If you’re running an older F4 CPU (pre-2010 vintage), confirm the module revision letter (stamped on the label) matches your existing hardware generation. Mixing early-rev modules with late-rev CPUs can cause scan-time anomalies.
• After installation, force a cold restart of the CPU (power cycle, not warm restart) to ensure the I/O configuration table is rebuilt cleanly. A warm restart may carry over a stale fault state from the failed module.
• Verify channel scaling in DirectSOFT after restart. The F4-16AD-2 stores scaling parameters in the CPU’s data table, not in the module itself — your engineering units configuration is preserved. Spot-check 2–3 channels against known process values before returning to automatic mode.
• Document the failure date and operating hours on the failed module before returning it for analysis. FACTS Engineering field failure data helps identify systemic issues in specific production batches.

Reliability in Harsh Conditions

The F4-16AD-2 was engineered for North American industrial environments — which means it was built to survive conditions that would kill consumer-grade electronics in a week. The module’s conformal-coated PCB resists moisture ingress and condensation in facilities where temperature swings between cold storage areas and hot process zones create daily humidity cycling. The input protection circuitry handles the transient spikes that are endemic to industrial wiring environments — motor starts, solenoid switching, and VFD noise that would saturate unprotected analog inputs.

Vibration tolerance is a real-world concern in pump stations, compressor rooms, and press lines. The F4-16AD-2’s backplane connector is a friction-lock design that maintains contact integrity under continuous low-frequency vibration — the failure mode we see in vibration-prone installations is almost always the field wiring terminals, not the module itself. The module’s operating temperature ceiling of 60°C gives adequate margin for control panels in non-air-conditioned facilities during summer peaks, provided the panel is properly ventilated and the rack is not stacked with high-dissipation modules on all sides.

Every unit we ship from Xiamen has passed visual inspection, connector integrity check, and ESD handling protocols. Modules are packed in anti-static bags with foam cushioning inside double-wall corrugated cartons rated for international air freight handling — because a module that arrives damaged is worse than no module at all.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport (XMN), a major DHL and FedEx hub for South China export. This is not a coincidence — it is the core of our emergency supply model.

Standard dispatch timeline:

• Order confirmed before 14:00 CST → same-day dispatch to DHL/FedEx drop-off
• Order confirmed after 14:00 CST → next morning dispatch (06:00 CST flight window)
• DHL Express Worldwide: 2–4 business days to most destinations in North America, Europe, Southeast Asia, and the Middle East
• FedEx International Priority: 1–3 business days to USA, Canada, and major EU hubs

What’s included with every shipment:

• Commercial invoice with accurate HS code classification (HS 8537.10 for PLC modules)
• Packing list and certificate of conformance
• ESD-safe inner packaging with moisture barrier
• Full AWB tracking number provided within 2 hours of dispatch
• Proactive customs documentation support for destinations with complex import requirements (India, Brazil, Russia, Saudi Arabia)

We have shipped F4 Series modules to manufacturing plants in the USA, Germany, Australia, Malaysia, UAE, and South Korea. The logistics process is repeatable and documented. When your maintenance manager asks “where is the part?”, you will have a tracking link with an ETA — not a vague promise.
