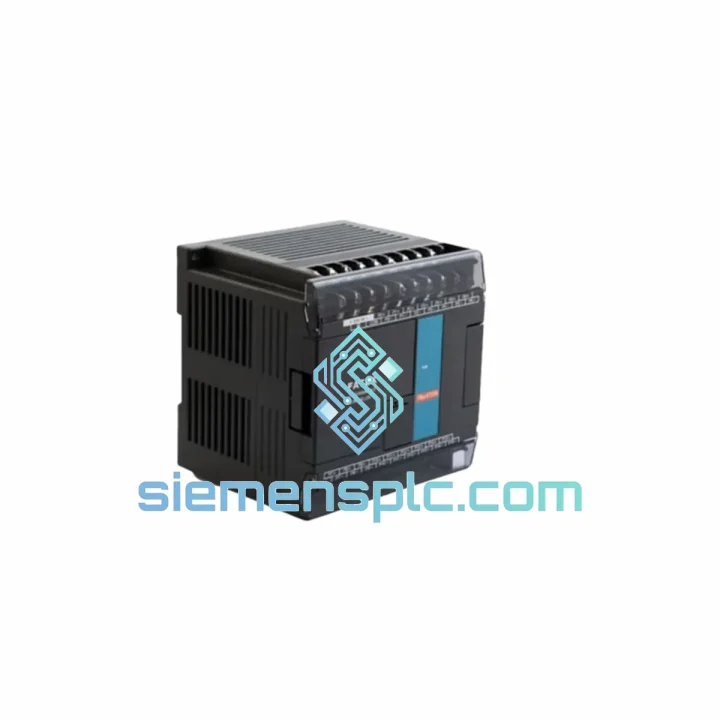

FATEK FBS-14MA PLC Module

FATEK FBS-14MA Down? Every Minute of Downtime Costs You Money — We Ship Today

Your line stopped. The FBS-14MA threw a fault, the relay board is dead, or the CPU won’t come back online after a power surge. You’ve already spent two hours on diagnostics and the production manager is standing behind you. This is exactly the scenario we built our inventory around. The FATEK FBS-14MA is on our shelf in Xiamen — not on a 6-week ocean freight backorder. We process same-day and cut DHL/FedEx Express labels before 4 PM CST. Your replacement unit can be on-site within 24–72 hours depending on your location.

Stop reading spec sheets from manufacturers who can’t ship. Contact us now and we’ll confirm stock, generate a proforma invoice, and have your unit moving within hours.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of FBS-14MA field swaps, these are the failure modes and gotchas that will burn you if you skip them:

Common Fault Codes & Root Causes

ERR LED solid ON at power-up: Almost always a corrupted program memory caused by a power interruption mid-write cycle. Before condemning the CPU, try a full memory clear (hold STOP + RUN simultaneously during power-on per WinProladder procedure). If ERR persists after clear, the CPU flash is gone — you need a replacement unit.

All outputs dead, inputs reading correctly: The relay output board has failed — common after a capacitive load surge or inductive kickback from an unprotected solenoid. Check for burnt smell on the output PCB. This is not repairable in the field; swap the unit.

RS-232 communication lost mid-run: Check the COMM port DIP switch settings first. On the FBS-14MA, SW1 on the side panel controls port 1 baud rate and protocol. Factory default is 9600-8-N-1. If a previous engineer changed it and didn’t document it, you’ll need to cycle through baud rates in WinProladder’s communication settings. Do not assume the default.

Intermittent I/O faults, no clear pattern: Nine times out of ten this is a 24 VDC supply issue on the input commons. Measure COM terminal voltage under load. Anything below 21 V will cause random input dropout. Fix the PSU before swapping the PLC or you’ll kill the replacement too.

Replacement Procedure — Critical Steps

1. Before pulling the old unit, upload the existing program via WinProladder (File → Upload from PLC). Save the .lad file with the date and machine name. If the CPU is completely dead and you can’t upload, check if a backup exists on the HMI or SCADA historian.

2. Note the DIP switch positions on SW1 and SW2 before removal. Photograph them. The new unit ships with factory defaults — if your system uses non-default baud rates or station addresses, you must reconfigure before powering up.

3. The FBS-14MA does not support automatic address self-assignment. If you’re running a multi-drop RS-485 network via an FBS-CB5 expansion module, the station address is set in the program (D1036 register), not hardware. Verify this in your ladder before going live.

4. After installing the replacement and downloading the program, force a full I/O scan before enabling outputs. Use WinProladder’s online monitoring to verify all input states match physical field conditions before releasing to AUTO mode.

5. Firmware version mismatch: If your system uses FBS expansion modules manufactured after 2020, confirm the CPU firmware is v3.6 or later. Earlier firmware has a known handshake issue with newer expansion backplanes. Firmware update files are available from FATEK’s support portal — we can also supply pre-flashed units on request.

Reliability in Harsh Conditions

The FBS-14MA was not designed for a climate-controlled server room. It was built for the factory floor — and it shows in the design choices FATEK made.

The relay output contacts are rated at 2A/250VAC with a mechanical life of 10 million operations. In a typical packaging line running 60 cycles per minute, that’s over 2.7 years of continuous operation before the contacts approach end-of-life — and relay wear is gradual, not sudden, giving you time to plan a scheduled replacement rather than an emergency one.

The PCB conformal coating provides meaningful protection against condensation and airborne contaminants — a real concern in food processing, chemical plants, and coastal facilities where humidity swings are severe. We’ve seen FBS-14MA units pulled from shrimp processing facilities after 8 years of service that still powered up and ran their programs without issue.

Vibration resistance is rated to IEC 60068-2-6: 10–57 Hz at 0.075 mm amplitude, 57–150 Hz at 1G. For most conveyor, press, and pump applications this is more than adequate. For high-vibration environments like compressor skids or mobile equipment, we recommend adding vibration-damping DIN rail mounts — a $15 fix that extends service life significantly.

The operating temperature ceiling of 55 °C is real-world achievable in a properly ventilated panel. If your enclosure runs hotter — common in outdoor installations in Southeast Asia or Middle Eastern summers — consider the panel cooling options before blaming the PLC for thermal shutdowns.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. This is not a drop-shipping operation. Stock is physically on our shelves, inspected, and ready to label.

Standard Express Timeline (from order confirmation):

Orders confirmed before 4:00 PM CST are processed same day. DHL Express and FedEx International Priority are our primary carriers for urgent shipments. Typical transit times: Southeast Asia 1–2 business days, Europe 3–4 business days, North America 3–5 business days, Middle East 2–4 business days, Australia/NZ 3–4 business days.

We prepare all export documentation in-house: commercial invoice, packing list, and HS code declaration (HS 8537.10 for PLC modules). For customers in countries with import duty sensitivities, we can advise on declared value structuring within legal compliance boundaries.

For multi-unit orders or project-based procurement, we offer consolidated shipment with full traceability — each unit’s serial number is recorded against your order before dispatch. If a unit ever needs warranty support, we can trace it back to the exact batch and inspection record.

Air freight via our freight forwarder partners is also available for pallet-quantity orders where express courier rates become prohibitive. Contact us for a freight quote on orders exceeding 10 units.
