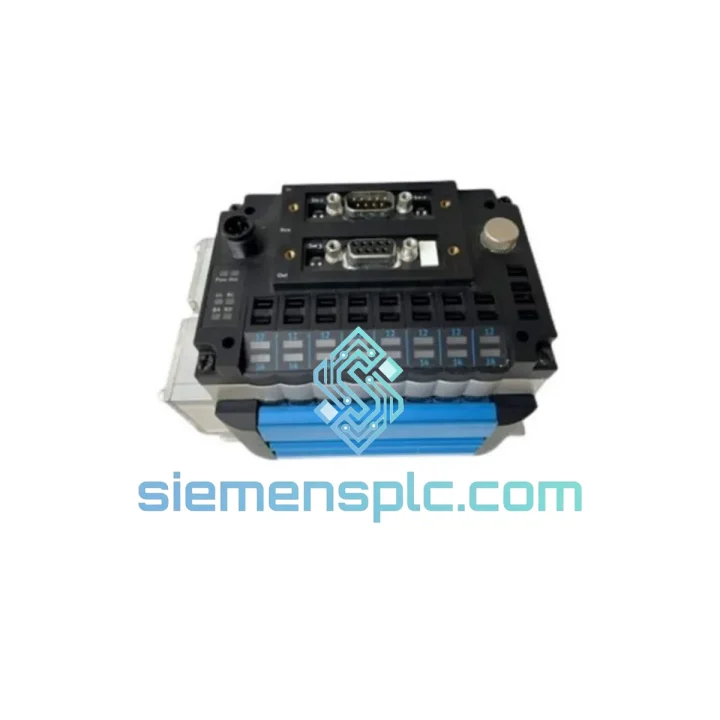

FESTO CPV10-VI 18200 Pneumatic Valve Manifold – CPV10 Series

FESTO CPV10-VI 18200 — Centralized Pneumatic Valve Island for High-Density Automation Circuits

The FESTO CPV10-VI 18200 is a valve island interface module within the CPV10 (Compact Performance Valve, size 10) platform. Its primary function in a control loop is to serve as the centralized pneumatic distribution and switching node, consolidating multiple directional control valve stations onto a single manifold body. Rather than distributing individual valves across a machine frame with separate supply and exhaust plumbing, the CPV10-VI 18200 routes a common pressure supply and exhaust through a shared internal gallery, reducing the number of pneumatic connections by a factor proportional to the station count. This architecture directly shortens the pneumatic signal path between the solenoid pilot stage and the actuator port, yielding measurable improvements in switching latency and cycle repeatability — both critical parameters in high-speed pick-and-place, clamping, and indexing applications.

Within a closed-loop motion control architecture, the CPV10-VI 18200 interfaces with fieldbus communication nodes — including PROFIBUS-DP, DeviceNet, EtherNet/IP, and IO-Link — allowing the PLC or DCS to address each valve station as a discrete digital output. This eliminates the need for individual solenoid wiring runs from the control cabinet to each actuator, replacing them with a single fieldbus cable and a local power supply connection at the valve island. The result is a deterministic, low-latency command path from the controller scan cycle to the pneumatic output, with the added benefit of integrated diagnostic feedback on valve coil status and supply pressure faults.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CPV10-VI 18200 manifold body is machined from anodized aluminum alloy, providing a pressure-rated internal gallery structure that simultaneously carries supply pressure (P), exhaust (R/S), and individual working port channels (A/B) to each valve station. The internal cross-section geometry of the supply gallery is sized to maintain adequate flow capacity across all stations at maximum simultaneous actuation demand, preventing pressure drop cascades that would otherwise cause timing drift in multi-actuator sequences.

Each valve station on the CPV10-VI 18200 interfaces with a CPV10 series directional control valve via a precision-lapped sealing face. The sealing interface relies on elastomeric face seals rather than threaded port connections, which eliminates the torque-induced stress concentrations common in manifold blocks with threaded inserts. This design choice extends the service life of the sealing surfaces under thermal cycling conditions — particularly relevant in applications where the manifold is mounted near heat-generating servo drives or welding equipment.

From an EMC standpoint, the solenoid coils on CPV10 series valves incorporate integrated suppression diodes (for DC variants) or RC snubber networks (for AC variants), clamping the inductive kickback voltage generated at coil de-energization. This suppression is critical in installations where the valve island shares a 24 V DC bus with proximity sensors and encoder inputs, as unsuppressed transients in the 100–300 V range can corrupt digital input signals and trigger spurious PLC interrupts. The CPV10-VI 18200’s manifold body also provides a common ground reference point for all solenoid coils, reducing the risk of ground loop currents that can introduce noise into analog signal circuits in the same cabinet.

The modular station architecture allows individual valve elements to be removed and replaced without disturbing adjacent stations or disconnecting the manifold from its sub-base. This is achieved through a captive screw retention system that maintains the sealing face contact force within specification during the removal of a single station. Mean time to repair (MTTR) for a single valve station replacement is typically under 10 minutes with standard tooling, a significant advantage over manifold designs that require full disassembly for individual valve access.

System Integration Benefits

• Deterministic PLC-to-Actuator Latency: Fieldbus-addressed valve stations eliminate the variable propagation delays inherent in relay-based or hardwired solenoid circuits, allowing the PLC scan cycle to serve as the primary timing reference for pneumatic output sequencing.
• Reduced Cabinet Wiring Density: A single fieldbus cable and 24 V DC power feed replace individual solenoid wiring runs for each station, reducing cabinet terminal block count, cable tray fill, and the associated risk of wiring errors during commissioning.
• Integrated Diagnostic Transparency: Fieldbus nodes for the CPV10 platform report coil open-circuit faults, short-circuit conditions, and supply pressure under-voltage events back to the PLC as structured diagnostic data, enabling condition-based maintenance scheduling rather than reactive fault response.
• Scalable Station Count: The CPV10-VI 18200 supports expansion by adding valve stations and sub-bases without replacing the manifold body or fieldbus node, protecting the capital investment in the base infrastructure as machine requirements evolve.
• IP65 Ingress Protection: With end plates and a compatible fieldbus node installed, the assembled valve island achieves IP65 protection, permitting direct mounting in wash-down zones, dusty environments, and outdoor enclosures without additional protective housings.
• Shared Pressure and Exhaust Gallery: The common internal gallery eliminates external pneumatic interconnects between stations, reducing the number of potential leak points from N×2 (individual supply and exhaust per valve) to 2 (single supply and exhaust inlet to the manifold), directly improving system leak integrity.
• Thermal Stability: The anodized aluminum manifold body maintains dimensional stability across the rated -10 °C to +60 °C ambient range, preventing port misalignment and seal extrusion that can occur in polymer manifold bodies under thermal cycling.
• Compatibility with FESTO Motion Terminal: The CPV10 platform is compatible with FESTO’s Motion Terminal VTEM architecture for applications requiring software-configurable valve functions, enabling function changes via parameter download rather than physical valve replacement.

Quality Assurance & Global Logistics

Every FESTO CPV10-VI 18200 unit supplied by siemensplc.com is sourced as a genuine FESTO original component. FESTO’s manufacturing facilities operate under ISO 9001 quality management systems, and each CPV10 series module undergoes functional testing at the factory prior to packaging. Genuine FESTO components carry traceable part markings, including the FESTO logo, part number, and production batch code on the module body, allowing verification against FESTO’s product database.

Our procurement process maintains a documented supply chain from authorized distribution channels, ensuring that no grey-market or refurbished units enter our inventory. Each unit is inspected upon receipt for physical integrity — sealing face condition, solenoid connector integrity, and manifold body markings — before being logged into our warehouse management system.

Shipments originate from our warehouse in Xiamen, China, a major international logistics hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and consolidated sea freight services. Standard express delivery to Europe, North America, Southeast Asia, and the Middle East typically completes within 3–7 business days from order confirmation. For time-critical MRO requirements, same-day dispatch is available for in-stock items ordered before 14:00 CST. All shipments include full tracking, commercial invoice, and packing list documentation. Export compliance and customs declaration support are provided as standard.

A 12-month warranty applies from the date of shipment, covering manufacturing defects under normal operating conditions as defined in the FESTO CPV10 series product documentation.
