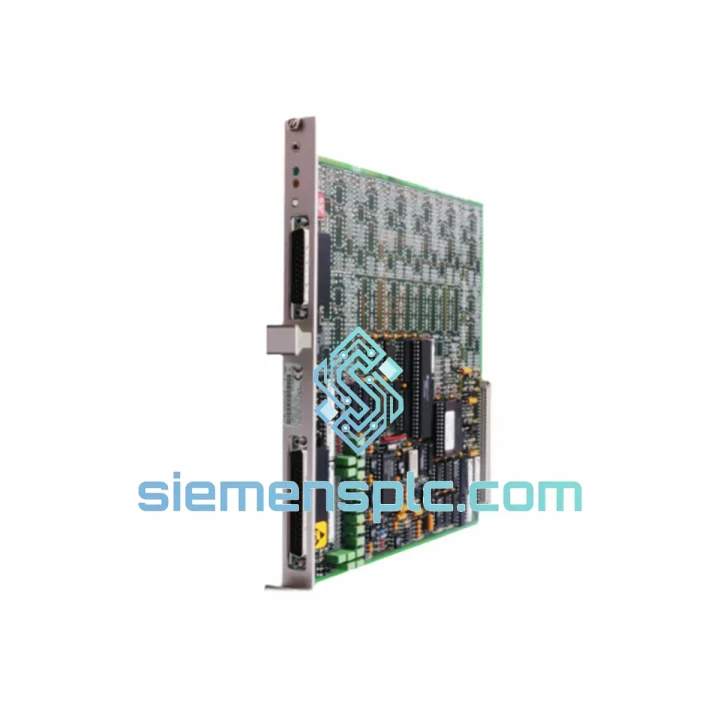

Fisher CL6824X1-A2 12P0767X012 Analog Input Card

CL6824X1-A2 12P0767X012 — Stop the Bleeding: Every Hour of Downtime Costs You Real Money

Your DCS just threw a fault. The board is dead. Production is at zero. You’ve already called three suppliers and nobody has stock. That’s exactly the scenario this page exists for.

The Fisher CL6824X1-A2 (OEM P/N: 12P0767X012) is a rack-mounted Analog Input Card engineered for Emerson / Fisher distributed control system platforms. We stock it. We ship it today. From Xiamen, China — DHL Express to your plant gate in 48–72 hours, anywhere on the planet.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of emergency callouts, here’s what actually goes wrong with the CL6824X1-A2 and what to watch when you swap it:

Common Failure Modes

• Channel drift / offset error: Typically caused by capacitor aging on the signal conditioning stage. Symptom: one or more channels reading 0.5–2 mA high or low with no field wiring change. Replace the card — field calibration will not fix a hardware drift of this nature.
• Backplane communication fault (Fault Code 0x34 / 0x35): The card stops responding to the controller scan. First check the edge connector for oxidation — clean with IPA and a firm-bristle brush. If the fault persists after reseating, the backplane ASIC on the card has failed. Order a replacement immediately.
• All-channels-fail on power cycle: The onboard DC/DC converter (5 V rail) has collapsed. You’ll measure 0 V on the backplane power pins. This is not a fuse issue — the converter IC itself is gone. No field repair; replace the module.
• Intermittent signal dropout on channels 5–8: A known weak point on early A2 revisions is the multiplexer IC on the secondary channel bank. Vibration accelerates failure. If your plant has high-vibration equipment nearby, inspect mounting screws and consider adding vibration-damping washers on the rack.

Replacement Procedure — Key Steps

• Step 1 — Confirm revision match: CL6824X1-A1, A2, and A3 are hardware-interchangeable in most rack configurations, but A3 introduced a firmware change that affects the channel scan rate. If your DCS controller firmware is below v4.2, stick with A2. Check your controller version before ordering an A3 as a substitute.
• Step 2 — Address switch / DIP configuration: The CL6824X1-A2 uses a 4-position DIP switch on the card edge to set the slot address. Before pulling the failed card, photograph the switch positions. The replacement must be set identically, or the controller will not recognize it on the next scan cycle.
• Step 3 — Power down the rack segment: Do not hot-swap this card unless your DCS documentation explicitly supports it for this slot type. Unpowered insertion prevents backplane bus contention and protects the controller module.
• Step 4 — Seat and lock: Insert with firm, even pressure until the card locks. A partial insertion will cause intermittent faults that are extremely difficult to diagnose remotely.
• Step 5 — Force a controller rescan: After power-up, initiate a manual I/O rescan from the DCS engineering workstation. Do not assume the controller will auto-detect — some firmware versions require a manual trigger.
• Step 6 — Verify channel-by-channel: Apply a known 4 mA and 20 mA source to each channel in sequence and confirm the engineering unit readback matches within ±0.1% of span. Document results before returning the loop to service.

Reliability in Harsh Conditions

The CL6824X1-A2 was designed for continuous duty in process industries — not office environments. The PCB uses a conformal coating rated to IPC-CC-830B, which provides a meaningful barrier against humidity, condensation, and airborne contaminants common in chemical and refinery environments.

Vibration tolerance is rated to IEC 60068-2-6 (sinusoidal, 10–150 Hz, 1 g). In practice, units installed in compressor buildings or near reciprocating machinery have shown accelerated connector wear. If your installation is high-vibration, inspect the card edge connector annually and consider a rack-level vibration isolation mount.

Thermal performance holds to spec up to 60°C ambient. Above that threshold, the A/D converter begins to exhibit increased noise on the LSBs. If your control room runs hot in summer, verify rack cooling airflow before blaming the card for signal quality issues.

Units sourced from our Xiamen warehouse are stored in climate-controlled conditions (20–25°C, 40–60% RH) with ESD-safe racking. Every card is inspected visually and powered on for a functional check before it leaves the building. We do not ship untested stock.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-connected export hubs in Asia. We ship daily via DHL Express and FedEx International Priority.

• Asia-Pacific (Japan, South Korea, Australia, Singapore): 1–2 business days door-to-door
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days
• Europe (Germany, Netherlands, UK, France): 2–3 business days
• North America (USA, Canada, Mexico): 3–4 business days
• South America (Brazil, Chile, Colombia): 4–5 business days

Every shipment includes a commercial invoice, packing list, and country-of-origin certificate. For orders requiring ATA Carnet, CITES documentation, or specific customs HS code declarations, contact us before placing the order — we handle export paperwork daily and know what each destination country requires.

For genuine emergencies — plant down, production stopped — call or WhatsApp us directly. We can arrange same-day dispatch for orders confirmed before 14:00 CST.
