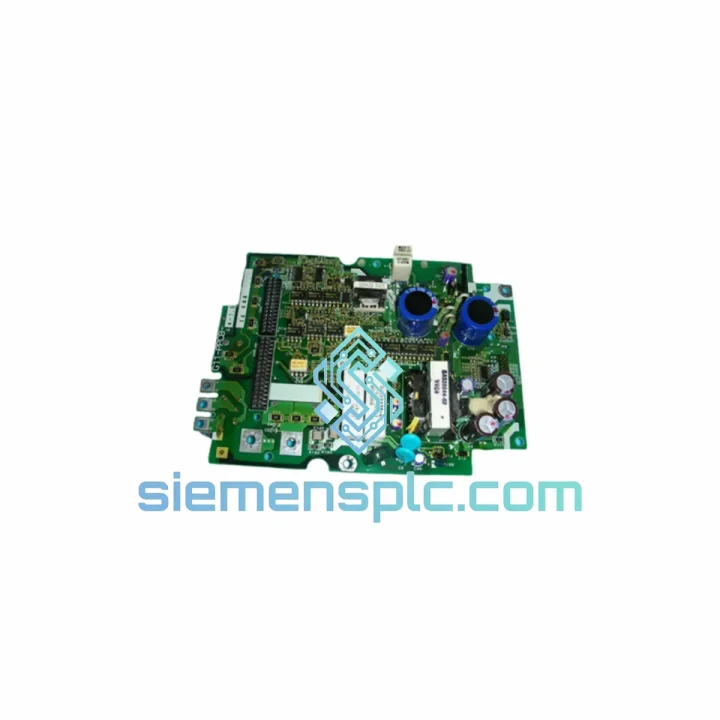

FUJI G11-PPCB-4-1.5 SA528530-06 Power PCB

FUJI G11-PPCB-4-1.5 SA528530-06 — Stop the Clock on Your Downtime

Every minute a FRENIC G11 drive sits dead on the floor, your production line is bleeding money. The G11-PPCB-4-1.5 (SA528530-06) is the power printed circuit board that sits at the heart of your 1.5 kW / 400 V FUJI FRENIC G11 inverter — it handles DC bus regulation, IGBT gate drive signals, and the internal power supply rails that keep the entire drive alive. When this board fails, the drive fails. Full stop. We stock it in Xiamen, we ship it today, and we’ve done this enough times to know exactly what you need to get back online fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of crawling inside drive cabinets on emergency callouts, here’s what actually matters when you’re swapping this board under pressure:

Common failure signatures that point to this board:

• Fault code OC1 / OC2 / OC3 (Overcurrent during accel/decel/constant speed) — If the IGBT gate drive circuit on the power PCB loses timing integrity, the drive misreads current and trips. A new board clears this when the IGBT modules themselves test good.
• Fault code LU (Low Voltage / DC bus undervoltage) — The internal 5 V and 15 V PSU rails on this board feed the control logic. Capacitor degradation on the power PCB causes intermittent LU faults that look like incoming supply issues but aren’t.
• Fault code OH1 (Overheat) — Thermistor signal conditioning runs through this board. A cracked solder joint on the thermistor input circuit produces false OH1 trips even when the heatsink is cold.
• Drive powers up, display blank, no keypad response — The 5 V rail from this board is dead. Measure TP1/TP2 test points on the board before condemning the control PCB.

Step-by-step replacement procedure:

• Isolate and lock out the drive. Verify DC bus voltage below 30 V with a meter before touching anything — the bus capacitors on a G11 hold charge for several minutes after power-off.
• Photograph all connector positions before disconnecting. The G11 power PCB has 6–8 connectors; one wrong reconnection and you’ll be chasing a new fault.
• Remove the four M4 mounting screws. The board lifts straight out — no flex required. If it’s stuck, check for a hidden screw under the bus bar bracket.
• Transfer the thermal pad to the new board if the replacement doesn’t include one. Dry contact between the board and heatsink will cause premature failure.
• After installation, perform a parameter initialization (H03 = 1 on the G11 keypad) before the first test run. Residual parameter corruption from the fault event can trigger false trips on a perfectly good new board.
• Run the drive unloaded first. Confirm no fault codes, then reconnect the load and ramp up slowly.
• No address switches or DIP switches on this board — it’s purely analog/power circuitry. Firmware lives on the control PCB, not here. No firmware flash required.

Reliability in Harsh Conditions

Industrial environments don’t care about your schedule. The G11-PPCB-4-1.5 is engineered to operate continuously in conditions that would kill consumer-grade electronics. The board is rated for ambient operating temperatures from -10 °C to +50 °C, with the drive chassis providing forced-air cooling across the heatsink and PCB surface. Conformal coating on the PCB protects against humidity and condensation — critical in coastal manufacturing facilities, food processing plants, and water treatment stations where moisture ingress is a constant threat.

Vibration resistance meets IEC 60068-2-6 test profiles, which means the board survives the mechanical shock of conveyor systems, compressor rooms, and pump stations without solder joint fatigue. The electrolytic capacitors on this board are rated for 105 °C core temperature — a deliberate over-spec that extends service life in high-ambient installations where the drive cabinet runs warm. Every unit we ship has been inspected for capacitor bulge, burnt gate resistors, cracked solder joints, and PCB delamination before it leaves our warehouse.
