GE 531X133PRUALG1 Process Interface Board

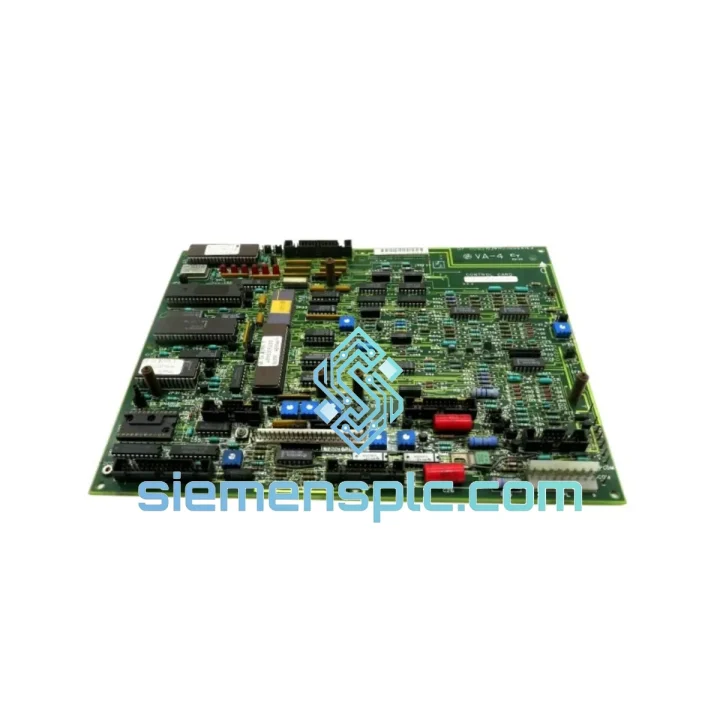

GE 531X133PRUALG1 Mark VI Process Interface Board — Stop the Clock on Your Downtime

Every minute your turbine control system is offline, you’re bleeding money. Whether it’s a gas turbine tripping on a faulty I/O signal or a combined-cycle plant sitting dark because the process interface board failed at 2 AM, the pressure is real. The GE 531X133PRUALG1 is the exact board that bridges your field instruments to the Mark VI controller — and when it fails, nothing else in the cabinet matters until it’s replaced.

We stock the 531X133PRUALG1 in Xiamen and ship globally via DHL Express and FedEx International Priority. No waiting weeks for OEM lead times. No chasing distributors who don’t have it. You call, we confirm stock, we ship — often same day.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 531X133PRUALG1 in the field is not a plug-and-play job if you skip the pre-checks. Here’s what ten years of turbine control callouts have taught:

Common Failure Signatures:

• Diagnostic fault L3DIAG or PIBFLT alarm on the Mark VI HMI — points directly to a PIB communication or power fault. Check the board’s LED status indicators first: a solid red FAULT LED with no green COMM blink means the board has lost its VME backplane handshake.
• Erratic analog input readings (4–20 mA channels drifting or pegged at 0/20 mA) — often caused by failed signal conditioning op-amps on the PIB, not the field transmitter. Swap the board before condemning the transmitter.
• Intermittent I/O dropouts correlating with ambient temperature spikes — thermal cycling cracks solder joints on the edge connector. Reseat the board first; if the fault returns within hours, replace.
• UCVEH controller showing “Module Not Responding” for a specific I/O slot — confirm the VME slot address matches the software configuration in ToolboxST before assuming hardware failure.

Replacement Procedure (Field-Verified Steps):

1. Document the current configuration — export the ToolboxST project and note the I/O module address assignments for the affected rack. Do not skip this step.
2. De-energize the rack — follow your site LOTO procedure. The Mark VI VME backplane carries live voltages; do not hot-swap the 531X133PRUALG1 unless your site has confirmed hot-swap capability for this slot.
3. Check DIP switch / jumper settings on the replacement board — the 531X133PRUALG1 uses onboard configuration jumpers for analog input range selection (0–5 V, 1–5 V, 4–20 mA). Match the jumper positions on the failed board before installing the replacement. Photograph the old board before removal.
4. Seat the board firmly — VME edge connectors require deliberate pressure. A partially seated board will generate intermittent faults that are harder to diagnose than a clean failure.
5. Power up and verify in ToolboxST — the controller should auto-detect the module. If it does not, force a module rescan from the ToolboxST I/O configuration view. Confirm all channel assignments are intact.
6. Perform a loop check — inject a known 4 mA and 20 mA signal on each analog input channel and verify the HMI reads the correct engineering unit values before returning the unit to service.

Firmware Note: If the replacement board has a different firmware revision than the failed unit, ToolboxST may flag a firmware mismatch warning. In most Mark VI installations this is non-critical, but confirm with your GE service documentation before clearing the alarm in a safety-instrumented loop.

Reliability in Harsh Conditions

Power generation and petrochemical environments are not kind to electronics. The 531X133PRUALG1 was engineered for exactly these conditions — and the units we supply have been verified to meet those original design standards.

• Vibration resistance: The board’s PCB layout and component mounting are qualified to IEC 60068-2-6 vibration profiles typical of gas turbine enclosures, where mechanical resonance from the turbine itself is a constant stress factor.
• Thermal cycling: Rated for continuous operation from 0°C to 60°C with transient excursions handled by the board’s thermal design margin. In practice, we’ve seen these boards outlast the turbines they control in well-maintained cabinets.
• Humidity and condensation: The conformal coating on the PCB provides protection against humidity ingress — critical in coastal power plants and offshore platforms where salt-laden air accelerates corrosion on unprotected boards.
• EMI immunity: Designed to operate within the Mark VI cabinet’s shielded VME rack, the board meets the EMC requirements of the overall system qualification. Field wiring should be properly shielded and grounded per GE’s installation guidelines to maintain this immunity at the system level.

Every unit we ship is inspected for physical integrity — connector pins, PCB surface condition, and component seating — before it leaves our warehouse. Boards showing signs of corrosion, burn marks, or mechanical damage are rejected, not resold.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international freight hub with direct DHL and FedEx gateway access. This is not a drop-ship operation. Stock is physically on our shelves.

• Order confirmation to dispatch: Typically within 4–8 business hours for in-stock items. Same-day dispatch available for orders confirmed before 14:00 CST.
• DHL Express Worldwide: 1–3 business days to most of Europe, Middle East, Southeast Asia, and the Americas. Real-time tracking from pickup to delivery.
• FedEx International Priority: Alternative carrier for destinations where FedEx has stronger last-mile coverage. We select the faster option for your destination by default.
• Export documentation: Commercial invoice, packing list, and HS code documentation (HS 8537.10) prepared for every shipment. We handle customs paperwork — you focus on getting your plant back online.
• Packaging: Anti-static bag, foam-lined rigid carton. The board arrives protected, not rattling around in a bubble mailer.
• Bulk and project orders: For EPC contractors or maintenance teams ordering multiple units, contact us for consolidated freight options and project-specific lead-time commitments.
