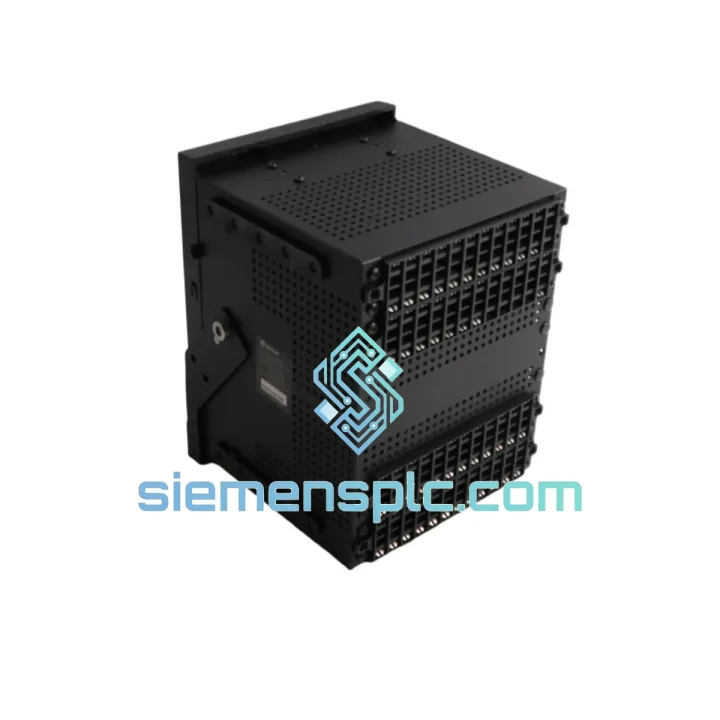

GE 750-P5-G5-D5-HI-A20-R Analog Output Module – Mark VIe

GE 750-P5-G5-D5-HI-A20-R: Multi-Channel High-Integrity Analog Output I/O Pack for Mark VIe Distributed Control Systems

The GE 750-P5-G5-D5-HI-A20-R is a dedicated analog output I/O pack designed for integration within GE’s Mark VIe Distributed Control System architecture. It occupies a defined slot in the Mark VIe I/O rack assembly and delivers individually isolated 4–20 mA current-loop drive signals to field actuators, control valves, variable-frequency drives, and electro-pneumatic positioners. The module receives digital setpoint data from the Mark VIe controller via the IONet 100 Mbps Ethernet-based I/O backbone and converts those values into calibrated analog output currents with bounded update latency, maintaining closed-loop signal fidelity across the full field wiring span.

The part number suffix structure encodes the module’s factory-configured hardware profile: P5 identifies the I/O pack generation; G5 specifies the terminal board interface variant; D5 designates the diagnostic firmware tier; HI declares the high-integrity per-channel galvanic isolation class; A20 encodes the analog output channel count designation; and R marks the hardware revision level. Each suffix field is factory-locked. Procurement must match the complete suffix string to the installed terminal board and rack slot configuration — partial suffix substitution is not supported and will result in a hardware mismatch fault at rack initialization.

In turbine control, combined-cycle power generation, and refinery process applications, the 750-P5-G5-D5-HI-A20-R serves as the final digital-to-field conversion stage for setpoints that govern combustion fuel flow, steam admission valves, and compressor inlet guide vanes. The accuracy and determinism of this conversion stage directly affects the stability margin of the outer control loop. A 16-bit DAC resolution of 0.244 µA per LSB across the 4–20 mA span, combined with a ±0.1% full-scale accuracy specification, provides the signal quality required for SIL 1 and SIL 2 final element applications under IEC 61511.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The isolation architecture of the 750-P5-G5-D5-HI-A20-R is built around per-channel DC-DC converter-based floating power supplies, each paired with an optocoupler-isolated signal path. This topology severs the common ground reference between the controller backplane and the field current loop on a channel-by-channel basis. In plant environments where field cable runs exceed 150 meters, or where output cables share conduit with medium-voltage motor feeders, ground potential differences of 10–50 V between the control room earth and the field instrument earth are common. Without per-channel isolation, these potential differences inject common-mode currents into the 4–20 mA loop that manifest as DC offset errors — typically 0.5–2 mA — which are indistinguishable from legitimate setpoint changes at the receiving instrument. The HI isolation class eliminates this failure mode entirely by ensuring no conductive path exists between the backplane reference and the field loop conductors.

The 16-bit DAC stage provides a theoretical resolution of 0.244 µA per LSB across the 16 mA active span. In practice, the binding accuracy constraint is ±0.1% of full scale (±16 µA), which corresponds to a positioning resolution of approximately 0.1% of valve travel for a linear-characteristic control valve with a 4–20 mA positioner. This is consistent with the requirements of IEC 61511 Clause 11 for SIL 1 and SIL 2 final elements, where the systematic capability of the output channel must not degrade the overall SIL rating of the safety function.

The IONet communication layer implements a deterministic publisher-subscriber protocol over 100 Mbps Ethernet. Unlike standard TCP/IP stacks, IONet does not use collision-domain arbitration or variable-length queuing. The controller publishes setpoint data to each I/O pack at a fixed period synchronized to the controller task cycle. The I/O pack applies the received setpoint to the DAC within the same scan period, ensuring that the end-to-end latency from controller output register write to field current change is bounded and repeatable. For turbine speed governing applications with a 10 ms task period, this means the analog output tracks the governor algorithm output with a worst-case delay of one scan period — a determinism level that is not achievable with asynchronous fieldbus protocols such as HART or PROFIBUS PA.

The D5 diagnostic firmware tier implements a closed-loop output verification mechanism. After each DAC update, the module’s onboard measurement circuit samples the actual output current and compares it against the commanded value. If the deviation exceeds a configurable threshold — typically ±1% of full scale — the module asserts a channel fault flag that propagates to the Mark VIe controller’s diagnostic data table and surfaces in the HMI alarm list within one scan cycle. This mechanism provides continuous wire-break detection, open-loop detection, and DAC drift monitoring without requiring external test equipment. During commissioning, it eliminates the need for manual milliamp injection testing on each channel, reducing per-channel loop checkout time from approximately 15 minutes to under 90 seconds.

EMC hardening is implemented at three levels: the metal enclosure provides a Faraday cage against radiated emissions above 30 MHz; common-mode chokes on the IONet interface suppress conducted interference on the Ethernet cable pair; and ferrite beads on the field output terminal traces attenuate high-frequency transients induced by nearby relay switching or VFD PWM emissions. The combined result is compliance with IEC 61000-4-4 Level 3 (2 kV EFT/Burst) and IEC 61000-4-5 Level 3 (1 kV line-to-line surge) — the levels specified for Class 3 industrial environments under IEC 61000-6-2.

System Integration Benefits

• Direct rack compatibility without firmware patching: The 750-P5-G5-D5-HI-A20-R installs into existing Mark VIe I/O racks without requiring controller firmware updates, configuration file modifications, or hardware rework, provided the installed terminal board matches the G5 interface variant. Rack recognition and IONet address assignment are automatic at power-up.
• TMR fault-tolerant output architecture: In Triple Modular Redundancy configurations, three 750-P5-G5-D5-HI-A20-R packs drive a voted analog output. The Mark VIe controller manages the arbitration logic, and the module participates in the voting scheme without additional external hardware. A single module failure does not interrupt the output signal — the remaining two modules maintain the voted output while the faulted module is flagged for replacement.
• Online hot-swap without process interruption: The module supports extraction and reinsertion under rack power. The Mark VIe controller automatically re-establishes IONet communication with the replacement module and resumes output control within the configured reconnection timeout, typically under 500 ms. No process shutdown or rack de-energization is required for module replacement.
• Bounded output update latency for fast-response loops: IONet’s fixed-period protocol guarantees that analog output updates are applied within one controller scan cycle. For combustion control and turbine governing applications with 10 ms task periods, this determinism prevents limit-cycle oscillation that would result from variable-latency output updates.
• Integrated loop-integrity verification reduces commissioning labor: The D5 diagnostic tier’s closed-loop output measurement eliminates manual milliamp injection testing during loop checkout. For a 20-channel module, this reduces commissioning labor by approximately 4–5 person-hours per module compared to conventional analog output cards without integrated feedback measurement.
• Channel-level fault granularity in HMI alarm management: Fault diagnostics are surfaced in the Mark VIe HMI with module-level and channel-level identification. Maintenance personnel can identify the exact faulted channel from the alarm list without additional diagnostic tools or field investigation, reducing mean time to repair.
• Scalable channel density within existing rack infrastructure: Additional 750-series I/O packs can be added to existing Mark VIe racks to increase analog output channel count without modifying the controller hardware or backplane wiring. Channel assignment is managed through the Mark VIe Toolbox configuration software.
• SIL-capable output channel for safety function integration: The HI isolation class and D5 diagnostic coverage support deployment in safety instrumented functions at SIL 1 and SIL 2 integrity levels under IEC 61508 and IEC 61511, subject to the overall SIL verification calculation for the specific safety function.
• Documented end-of-life support horizon: GE maintains the Mark VIe platform as an active product line with published support timelines. The 750-P5-G5-D5-HI-A20-R is a catalogued replacement part with a defined availability horizon, reducing lifecycle procurement risk for plant operators planning long-term maintenance strategies.

Quality Assurance & Global Logistics

Each 750-P5-G5-D5-HI-A20-R unit dispatched from siemensplc.com is sourced through verified supply channels with documented chain of custody from the original manufacturer. Pre-shipment inspection covers four areas: physical examination of PCB assembly, connector pins, and enclosure for transit or handling damage; verification of GE factory serial number and date code against the part label and accompanying documentation; functional bench test confirming IONet communication establishment and analog output calibration across all channels at ambient temperature; and firmware version recording against the customer’s specified revision requirement.

Units are packaged in anti-static ESD shielding bags, placed in foam-lined cartons rated for IATA air freight handling standards, and sealed with tamper-evident tape. Each shipment includes a certificate of conformance, commercial invoice, and packing list. A functional test report with measured output current values per channel is available upon request at no additional charge. For customers requiring third-party inspection, coordination with SGS or Bureau Veritas can be arranged prior to dispatch.

Logistics operations are based in Xiamen, China — a primary international freight hub with direct air cargo connections to Hong Kong International Airport, Singapore Changi, Frankfurt Airport, Los Angeles International, and Dubai International. Standard dispatch lead time is 2–5 business days from order confirmation. Express services via DHL Express, FedEx International Priority, and UPS Worldwide Express are available for time-critical requirements, with typical transit times of 3–5 business days to Europe and North America. All shipments carry full tracking, with tracking numbers provided within 24 hours of dispatch. Export documentation is prepared in compliance with destination country customs requirements, including HS code classification, ECCN determination, and declared value documentation consistent with the commercial invoice.

A 12-month warranty from the confirmed shipment date covers all units against manufacturing defects and functional failure under normal operating conditions as defined in the GE Mark VIe installation and operation manual. Warranty claims are processed with a target initial response of 48 business hours. Replacement units are dispatched upon receipt and inspection of the returned defective module. Extended warranty coverage and volume-based technical support agreements are available for EPC contractors and plant operators managing multi-unit Mark VIe installations.
