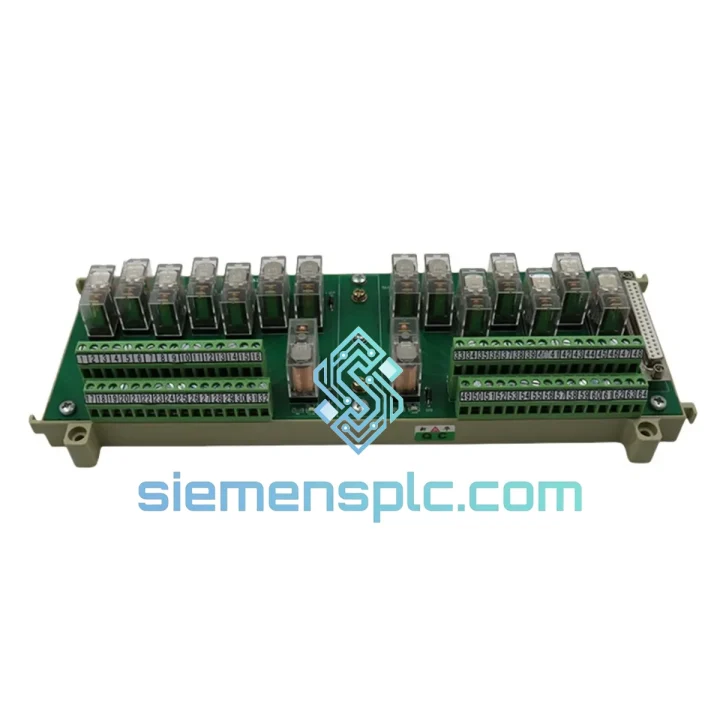

GE BDO11 369B1874G5002 Digital Output Module – Mark VI

GE BDO11 369B1874G5002 — Digital Output Base Module for Mark VI Distributed Control Architecture

In turbine and process control environments, the digital output layer is the final command boundary between controller logic and physical field devices. Every solenoid valve actuation, relay energization, and motor starter command passes through this interface. A degraded or failed digital output module does not produce a warning — it produces an uncontrolled process state. The GE BDO11 369B1874G5002 is the OEM-specified Digital Output Base Module for GE’s Mark VI Distributed Control System, engineered to maintain deterministic output switching under the thermal, vibration, and electromagnetic stress conditions inherent to power generation and heavy industrial plant environments.

The Mark VI platform, deployed across gas turbine frames (Frame 5, 6B, 7EA, 7FA, 9E, 9FA), steam turbine governor systems, and combined-cycle plant DCS architectures, relies on a modular I/O subsystem where each base module occupies a defined slot in the I/O rack and communicates with the controller via the Mark VI backplane bus. The BDO11 occupies the digital output segment of this architecture. Its part number suffix 369B1874G5002 identifies a specific hardware revision with defined output channel count, drive current ratings, and termination board compatibility — parameters that must be matched precisely during maintenance replacement to preserve system certification status.

Within a TMR (Triple Modular Redundancy) Mark VI configuration, three independent BDO11 modules may operate in parallel across R, S, and T I/O racks, with the controller’s voting logic arbitrating output commands. This architecture ensures that a single module failure does not interrupt output signal continuity to field devices. The BDO11’s hardware design accommodates this redundancy model without requiring external switching logic — the arbitration is handled at the controller level, and the module presents a passive, low-impedance output path when healthy.

The output channels on the BDO11 are designed to drive inductive loads typical of solenoid valves and relay coils. Internal transient suppression circuitry clamps back-EMF spikes generated during inductive load switching, protecting both the module’s output drivers and adjacent circuitry on the termination board. This is a non-trivial design requirement in turbine control panels where dozens of solenoids may switch simultaneously during a trip or startup sequence, generating transient energy that can corrupt adjacent signal channels if not properly managed at the module level.

Real-time stock availability and pricing: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The BDO11’s output stage architecture is built around solid-state switching elements rather than mechanical relays, which eliminates contact wear as a failure mode and enables switching cycle counts measured in the tens of millions — a critical characteristic in turbine control applications where output channels may cycle thousands of times per year during normal operation and testing sequences.

From an EMC standpoint, the module’s PCB layout isolates high-current output traces from low-level signal and communication traces using physical separation and ground plane segmentation. This layout discipline reduces capacitive coupling between output switching transients and the backplane communication signals, maintaining data integrity on the Mark VI I/O bus during high-frequency output switching events. The module’s metal housing provides a Faraday enclosure that attenuates radiated emissions from the output switching circuitry, keeping the module within the IEC 61000 EMC compliance envelope required for industrial control equipment.

The backplane connector on the BDO11 uses a high-cycle-count, gold-plated contact system. In Mark VI racks that undergo periodic module extraction for maintenance, connector contact resistance is a known degradation pathway. GE’s specification for the BDO11 connector system targets contact resistance below 10 mΩ over the rated insertion cycle life, ensuring that backplane power and signal integrity are maintained throughout the module’s service life.

Diagnostic transparency is built into the module’s hardware design. The BDO11 reports channel-level status back to the Mark VI controller via the backplane bus, enabling the controller’s diagnostic software to identify individual output channel faults — open-circuit loads, short-circuit conditions, and driver failures — without requiring external test equipment. This diagnostic architecture supports the Mark VI platform’s condition-based maintenance model, where module health data is continuously logged and can be trended over time to predict impending failures before they affect process availability.

System Integration Benefits

• Zero-modification drop-in replacement: The BDO11 369B1874G5002 maintains identical form, fit, and function to the OEM-installed module, eliminating the engineering review burden associated with non-OEM substitutions in certified control systems.
• Deterministic output latency: The module’s output switching latency is defined within the Mark VI I/O scan cycle specification, ensuring that controller-commanded output state changes are reflected at the field terminal within a bounded time window — a requirement for turbine protection and trip logic.
• TMR voting architecture compatibility: In triple-redundant configurations, the BDO11 participates in the Mark VI’s 2-out-of-3 output voting scheme, where the controller compares output commands across R, S, and T modules before asserting field outputs, preventing spurious trips from single-module faults.
• Channel-level fault diagnostics: Individual output channel status is reported to the Mark VI controller in real time, enabling maintenance personnel to identify the specific failed channel rather than condemning the entire module — reducing unnecessary parts consumption.
• Inductive load transient management: Integrated back-EMF suppression protects adjacent I/O channels from switching transients generated by solenoid valve coils, maintaining signal integrity across the full I/O rack during simultaneous multi-channel switching events.
• Thermal stability across operating range: The module’s output driver components are rated for continuous operation across the full Mark VI environmental temperature range, without derating of output drive current — a requirement in turbine enclosures where ambient temperatures can approach 55°C during summer operation.
• Backplane bus signal integrity: PCB layout and shielding design maintain backplane communication signal integrity during output switching, preventing data corruption on the I/O bus that could cause false diagnostic alarms or missed output commands.
• Long service life connector system: Gold-plated backplane connector contacts maintain low contact resistance over the rated insertion cycle life, supporting the Mark VI platform’s maintenance practice of periodic module extraction and re-insertion during scheduled outages.
• Compatibility with Mark VI diagnostic software: Module health data is accessible via GE’s ToolboxST configuration and diagnostic environment, enabling integration of module status into plant-wide condition monitoring and predictive maintenance programs.
• Supports SIL-rated safety loop architectures: When deployed in Mark VI configurations that form part of a Safety Instrumented System, the BDO11’s defined failure mode behavior and diagnostic coverage contribute to the overall SIL assessment of the output loop.

Quality Assurance & Global Logistics

Every GE BDO11 369B1874G5002 unit supplied by siemensplc.com is sourced as genuine OEM hardware — no third-party remanufacturing, no counterfeit risk. Units are procured through documented industrial decommission channels and authorized distribution networks, with full traceability records maintained for each serial number. Prior to shipment, each module undergoes a structured inspection protocol: visual examination of PCB, connector contacts, and housing integrity; power-on functional verification; and output channel load testing. Units that do not pass all inspection criteria are not offered for sale.

Logistics operations are based in Xiamen, China — a major international port city with direct access to DHL, FedEx, UPS, and TNT express networks, as well as sea freight consolidation services for bulk orders. Standard express shipments to Europe, North America, Southeast Asia, and the Middle East typically transit in 3–7 business days. Freight documentation including commercial invoice, packing list, and certificate of origin is prepared for all international shipments. Customers requiring specific customs documentation — such as Form E for ASEAN preferential tariff, or EUR.1 for EU trade — should specify requirements at the time of order.

All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 48 business hours from receipt of the defective unit.
