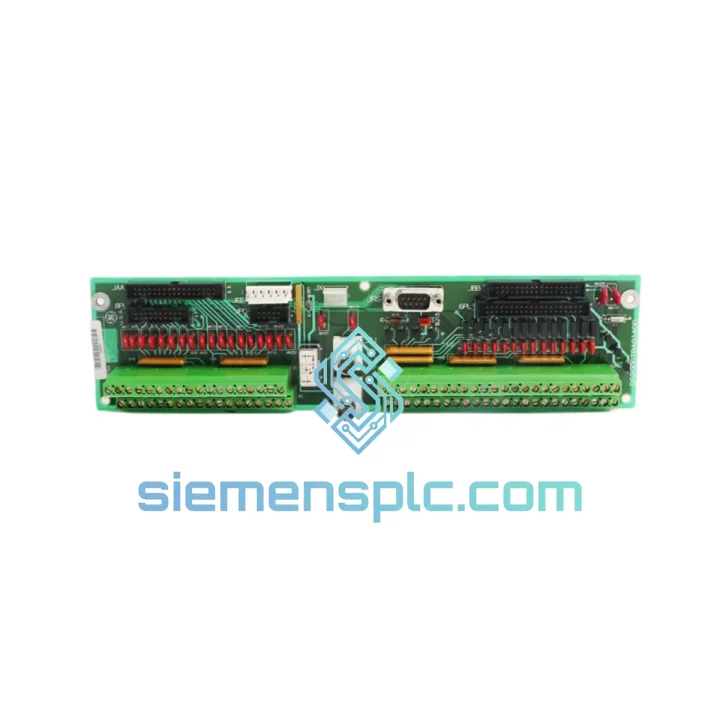

GE DS200CTBAG1ADD Terminal Board – Mark V Series

GE DS200CTBAG1ADD: Field-Wiring Terminal Board in the Mark V Turbine Control Architecture

The DS200CTBAG1ADD is a field-wiring terminal board manufactured by General Electric as an integral component of the Mark V Turbine Control System. Within the Mark V control loop, this board serves as the physical demarcation point between the plant’s field instrumentation — thermocouples, RTDs, discrete I/O, and servo feedback lines — and the Mark V’s internal signal conditioning circuitry. Its role is not passive: the board’s connector topology, trace routing, and terminal block assignments are engineered to maintain signal integrity under the high-noise electrical environment typical of gas and steam turbine enclosures.

The Mark V platform, introduced by GE in the early 1990s, remains operational in hundreds of power generation facilities globally. Its TMR (Triple Modular Redundant) architecture requires that every hardware element — including terminal boards — maintain deterministic signal paths across three independent processing lanes (R, S, T). The DS200CTBAG1ADD is designed to support this redundancy model, ensuring that field signal distribution does not become a single point of failure in an otherwise fault-tolerant control loop.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DS200CTBAG1ADD’s hardware design reflects GE’s engineering priorities for the Mark V platform: deterministic signal routing, EMC resilience, and maintainability in field conditions.

Terminal Block Architecture: The board uses screw-clamp terminal blocks rated for wire gauges from 0.5 mm² to 2.5 mm², accommodating both shielded instrumentation cable and heavier power-return conductors. Terminal assignments are grouped by signal type — thermocouple pairs, RTD three-wire circuits, and discrete I/O — reducing the risk of cross-coupling between high-impedance analog inputs and switched DC lines.

Shield Drain Routing: Cable shield drain wires terminate at dedicated shield bus bars on the DS200CTBAG1ADD, which are bonded to the Mark V panel chassis ground at a single point. This single-point grounding topology prevents ground loop currents from flowing through the shield conductors, a common source of 50/60 Hz interference in thermocouple circuits operating in the microvolt range.

EMC Design: The PCB layout incorporates guard traces around high-impedance analog input nodes, physically separating them from digital switching lines. Bypass capacitors are placed at the connector interface to suppress high-frequency transients injected by long field cable runs. The board’s mechanical mounting integrates with the Mark V panel’s bonded steel backplane, providing a continuous Faraday enclosure effect for the installed assembly.

Connector Keying and Polarization: All ribbon cable connectors on the DS200CTBAG1ADD are mechanically keyed to prevent mis-insertion during maintenance. This is a deliberate design choice for a platform that may be serviced by plant maintenance personnel rather than OEM technicians, reducing the probability of connector reversal damage to downstream I/O processor cards.

Thermal Management: The board does not carry active components that generate significant heat; its thermal design is passive. However, the PCB substrate and component selection are rated for the elevated ambient temperatures found inside turbine control enclosures, where internal temperatures can reach 55 °C during summer operation without forced cooling.

System Integration Benefits

• Drop-in replacement compatibility: The DS200CTBAG1ADD maintains the same mechanical footprint, connector pinout, and terminal block assignments as the original GE factory installation, eliminating the need for field wiring modifications during replacement.
• TMR redundancy preservation: The board’s signal distribution architecture supports simultaneous connection to all three Mark V processing lanes (R, S, T), preserving the platform’s 2-out-of-3 voting logic without additional wiring adapters.
• Deterministic signal latency: Passive terminal board design introduces no active processing delay in the field signal path, maintaining the sub-millisecond signal propagation required for turbine speed and temperature control loops.
• Diagnostic transparency: Terminal block accessibility allows maintenance engineers to perform in-situ signal measurements with a calibrated multimeter or loop calibrator without disconnecting field cables, supporting live diagnostic procedures during turbine operation.
• Reduced MTTR: Screw-clamp terminals with individual wire labeling positions support rapid re-termination during emergency replacement, reducing mean time to repair compared to crimped or soldered connection alternatives.
• Cross-compatibility with Mark V variants: The DS200CTBAG1ADD is compatible with both the standard Mark V and the Mark V LM (aero-derivative) configurations, broadening its applicability across mixed-fleet power generation sites.
• Isolation of field faults: The board’s terminal grouping allows maintenance personnel to isolate individual field circuits by disconnecting specific terminal groups without affecting adjacent signal channels, enabling partial-system diagnostics without full shutdown.
• Long-term parts availability: As a passive PCB assembly with no firmware dependency, the DS200CTBAG1ADD does not require software licensing or version matching, simplifying procurement for long-lifecycle plant assets operating beyond the OEM’s standard support window.

Quality Assurance & Global Logistics

Every DS200CTBAG1ADD supplied through siemensplc.com is sourced from verified channels and subjected to a structured pre-shipment inspection protocol. Part number markings, date codes, and board revision identifiers are cross-referenced against GE’s published documentation to confirm genuine manufacture. Visual inspection covers PCB surface condition, terminal block integrity, connector pin alignment, and the absence of rework indicators such as solder bridges or lifted pads. Where functional testing is applicable, boards are bench-powered and signal continuity is verified across all terminal-to-connector paths.

Shipments originate from our warehouse in Xiamen, China, a major export hub with direct access to international express carriers. Standard dispatch for in-stock units is within 3–5 business days. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international shipments. Units are packaged in anti-static bags, cushioned with EPE foam, and boxed in double-wall corrugated cartons rated for international freight handling. DHL Express, FedEx International Priority, and UPS Worldwide are available as standard shipping options, with typical transit times of 3–7 business days to major industrial regions in Europe, the Middle East, Southeast Asia, and the Americas.

A 12-month warranty covers manufacturing defects and verified functional failures. Warranty claims are processed with a documented return authorization procedure, and replacement units are dispatched upon confirmation of the defect condition.
