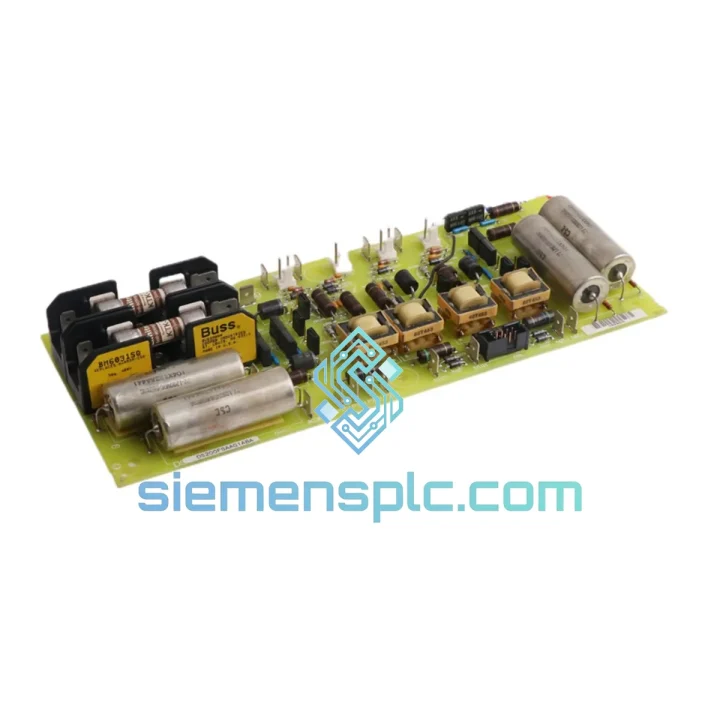

GE DS200FSAAG1ABA Field Supply Amplifier Board – Mark V Speedtronic

GE DS200FSAAG1ABA Field Supply Amplifier Board – Voltage Conditioning Core of the Mark V Speedtronic Control Loop

The DS200FSAAG1ABA is a dedicated Field Supply Amplifier Board engineered for deployment within General Electric’s Mark V Speedtronic turbine control architecture. Its primary function is to receive raw DC bus voltage from the panel power distribution network and deliver a precisely regulated, amplified field supply rail to downstream I/O modules, servo amplifier circuits, and analog signal conditioning stages. Without a stable field supply, the Mark V’s analog measurement chains — thermocouples, RTDs, pressure transducers, and LVDT position sensors — lose their reference baseline, introducing drift errors that propagate directly into turbine protection logic.

In a Mark V panel, the field supply rail typically operates at a nominal ±15 VDC or ±24 VDC depending on the I/O board population. The DS200FSAAG1ABA maintains output regulation within ±0.5% across the full operating temperature range of the cabinet, ensuring that analog-to-digital conversion accuracy at the TCQA and TCQB boards is not compromised by supply variation. This level of regulation is not incidental — it is a deliberate design constraint imposed by GE’s Speedtronic engineering team to meet the deterministic response requirements of turbine protection systems operating under IEC 61511 SIL 2 frameworks.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DS200FSAAG1ABA’s internal architecture centers on a linear regulation topology rather than a switching supply design. This is a deliberate engineering choice: switching regulators introduce high-frequency ripple (typically 50–200 mV peak-to-peak at switching frequencies of 100–500 kHz) that couples into sensitive analog measurement circuits. In a turbine control environment where thermocouple signals may be as low as 5–50 mV, even modest ripple injection degrades signal-to-noise ratio beyond acceptable limits for 12-bit or 14-bit ADC resolution. The linear topology of the DS200FSAAG1ABA eliminates this mechanism entirely, producing a supply rail with ripple below 5 mV RMS under full load.

The board incorporates a multi-stage EMC filter on its input side, consisting of common-mode chokes and X/Y-class capacitors arranged to attenuate both differential-mode and common-mode conducted interference from the panel DC bus. This is particularly relevant in turbine generator environments where large rotating machines, excitation systems, and high-current switching gear generate broadband electromagnetic interference across the 150 kHz–30 MHz range. The filter network ensures that bus-borne disturbances do not reach the regulation stage, maintaining output stability during generator load transients and excitation system switching events.

Thermal management on the DS200FSAAG1ABA is handled through a combination of a heatsink-mounted pass transistor and copper pour planes on the PCB substrate. The pass transistor dissipates the voltage differential between input bus and regulated output as heat; the copper planes distribute this thermal load across the board surface, preventing localized hot spots that would otherwise accelerate electrolytic capacitor aging — the primary failure mode for linear supply boards in continuous-duty industrial service. GE’s design targets a mean time between failures (MTBF) exceeding 100,000 hours at rated load and 40°C ambient, consistent with the Mark V system’s overall reliability architecture.

The board also incorporates an over-voltage crowbar circuit on each output rail. If the regulated output exceeds a preset threshold (typically 110–115% of nominal), the crowbar fires, clamping the output and triggering a fault signal on the Mark V diagnostic bus. This protects downstream I/O boards from overvoltage damage — a failure mode that would otherwise require replacement of multiple boards rather than a single supply module.

System Integration Benefits

• Deterministic analog reference baseline: Regulated ±0.5% output ensures that all analog measurement channels sharing the field supply rail operate from a common, stable reference, eliminating inter-channel offset errors caused by supply variation.
• Direct backplane compatibility: The DS200FSAAG1ABA slots into the Mark V backplane without hardware modification, adapter boards, or firmware changes — reducing installation time to under 15 minutes for a trained technician.
• Diagnostic transparency: The over-voltage crowbar circuit generates a discrete fault signal on the Mark V diagnostic bus, enabling the operator interface to display a specific board-level fault rather than a generic power alarm, accelerating root-cause identification.
• Reduced cross-board interference: Galvanic isolation between the field supply output and the backplane logic supply prevents ground loop currents from coupling noise into the Mark V’s digital communication bus (IONET/ARCNET).
• Extended I/O board service life: Stable, clean supply voltage reduces stress on electrolytic capacitors and voltage reference ICs on downstream TCQA/TCQB boards, extending their operational lifespan in continuous-duty service.
• Compatibility with SIL-rated architectures: The board’s fault detection and isolation characteristics support deployment in Mark V panels configured for IEC 61511 SIL 2 safety instrumented system applications, including turbine overspeed protection and flame detection circuits.
• Thermal resilience across cabinet temperature range: Rated operation from 0°C to +60°C covers the full ambient range of outdoor and indoor turbine control enclosures without derating, eliminating the need for supplemental cooling in most installations.
• Immediate spare availability eliminates extended outage risk: GE Mark V production has been discontinued; OEM lead times for new boards can reach 16–26 weeks. Maintaining a tested DS200FSAAG1ABA spare reduces unplanned outage duration from weeks to hours.

Quality Assurance & Global Logistics

Every DS200FSAAG1ABA unit dispatched from our Xiamen, China facility passes through a structured pre-shipment verification protocol. Visual inspection covers PCB trace integrity, connector pin condition, component seating, and absence of corrosion or flux contamination. Functional bench testing applies rated input voltage and verifies output regulation accuracy, ripple level, and crowbar response on each output rail. Units that do not meet specification are quarantined and not offered for sale.

Packaging follows ESD-safe handling standards: boards are placed in anti-static bags, cushioned with conductive foam, and sealed in moisture-barrier packaging with desiccant. Outer cartons are double-walled corrugated with corner protection inserts rated for international air freight handling. Shipment documentation includes a commercial invoice, packing list, and test verification record. A certificate of conformance is available upon request.

From Xiamen, we dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Middle East 3–4 business days, Southeast Asia 2–3 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments are fully insured and tracked door-to-door.
