GE DS200TCPDG2B Power Distribution Module – Mark V Speedtronic

GE DS200TCPDG2B — Backplane Power Distribution Architecture in Mark V Turbine Control Systems

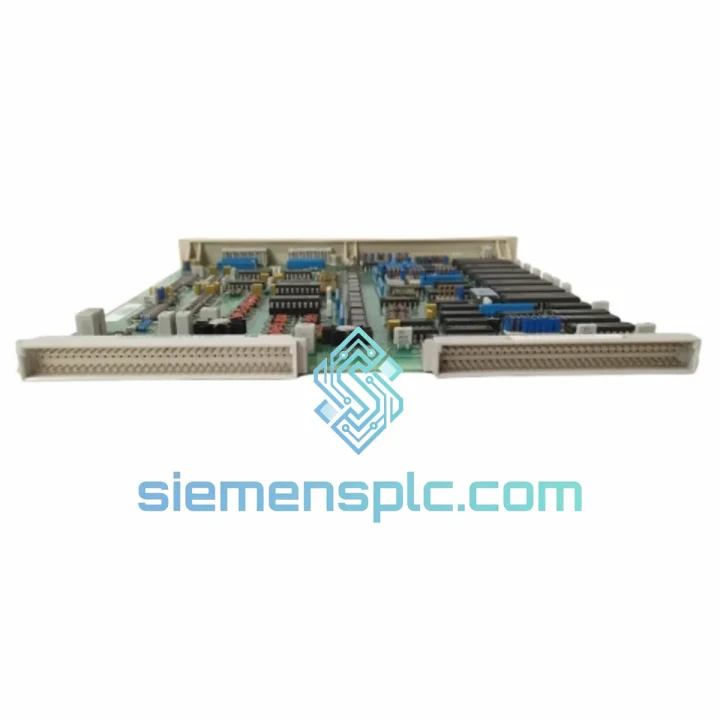

The DS200TCPDG2B is a rack-mounted power distribution card produced by General Electric for deployment within the Mark V Speedtronic turbine control platform. Its primary function is to receive, condition, and distribute regulated DC supply rails across the TCPD backplane, ensuring that downstream I/O cards, processor boards, and communication modules receive stable, isolated power within defined tolerance windows. Without a correctly functioning TCPDG card, the entire Mark V control rack loses its power integrity baseline — making this module a structural dependency rather than a peripheral component.

The G2B revision designation indicates a second-generation hardware spin with a B-level board change, typically reflecting improvements to thermal management traces, capacitor selection, or EMC filtering topology compared to the G1 and G2A variants. Engineers replacing a DS200TCPDG2B should match the revision suffix precisely unless a validated upgrade path has been confirmed through GE’s engineering change notice (ECN) documentation.

In a standard Mark V triple-redundant (TMR) configuration, three independent TCPD racks operate in parallel, each housing its own DS200TCPDG2B. The power distribution cards in each rack are electrically isolated from one another, ensuring that a single-point power fault in one rack does not propagate to the remaining two. This architecture supports the Mark V’s 2-out-of-3 voting logic by guaranteeing that power supply anomalies are contained at the rack boundary rather than cascading across the control system.

The DS200TCPDG2B interfaces with the system’s 28 VDC and ±15 VDC supply buses. Internal linear regulation stages or switching conversion circuits (depending on board revision) step these rails down to the logic-level voltages required by individual card slots. Bulk decoupling capacitors distributed across the PCB suppress high-frequency switching transients generated by adjacent processor cards, maintaining supply ripple within the limits specified in GE’s Mark V hardware reference manual.

From a field-replacement perspective, the DS200TCPDG2B is a hot-swap-capable module in systems where the rack’s backplane supports live insertion. However, GE’s recommended practice for Mark V systems is to perform power distribution card replacements during a planned outage window, with the affected rack taken offline and its voting contribution suspended. This eliminates the risk of transient voltage disturbances during card seating from triggering spurious trip signals in the active control loop.

Procurement teams sourcing the DS200TCPDG2B should be aware that GE has transitioned Mark V support to a managed obsolescence model. OEM new stock carries lead times of 12–20 weeks through authorized channels. Surplus and refurbished inventory from qualified distributors represents the primary supply path for rapid-response maintenance scenarios. All units shipped from siemensplc.com are functionally tested, visually inspected for PCB damage, and shipped in anti-static packaging with humidity indicator cards.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DS200TCPDG2B’s PCB layout follows a distributed decoupling strategy: bulk electrolytic capacitors are positioned at the card-edge connector to absorb inrush current during card insertion, while ceramic bypass capacitors are placed at each regulated output node to suppress high-frequency noise below 10 MHz. This two-stage filtering approach is consistent with GE’s EMC design philosophy for industrial control hardware operating in environments with significant conducted interference from motor drives and switchgear.

The board’s ground plane is segmented to separate the analog supply return path from the digital logic return, preventing ground-loop currents generated by the ±15 VDC analog rails from coupling into the 5 VDC digital domain. This segmentation is particularly important in Mark V racks where analog I/O cards and digital processor cards share the same backplane, as cross-domain ground coupling is a documented failure mode in earlier-generation turbine control hardware.

Thermal management on the DS200TCPDG2B relies on copper pour areas connected to the card’s metal faceplate via thermal vias, conducting heat from power dissipation components to the rack’s forced-air cooling stream. The G2B revision is understood to have increased the copper weight on these thermal paths compared to G1 variants, reducing junction temperatures at the regulation components under sustained full-load conditions — a factor that directly affects long-term capacitor life and MTBF.

The board also incorporates transient voltage suppression (TVS) diodes on the input supply lines, providing clamping protection against voltage spikes generated by relay coil switching and other inductive loads within the turbine control panel. This protection is rated to absorb transients consistent with IEC 61000-4-5 surge immunity requirements, aligning the module with the EMC robustness expected of safety-instrumented system components.

System Integration Benefits

• Deterministic Power Delivery: Regulated output rails maintain voltage within ±2% of nominal under load transients, ensuring that processor cards execute scan cycles without supply-induced timing jitter.
• Rack-Level Fault Isolation: Electrical isolation between TCPD racks in TMR configurations prevents single-rack power faults from affecting the 2-out-of-3 voting outcome, preserving control system availability.
• Reduced Diagnostic Ambiguity: A dedicated power distribution card separates supply-chain faults from logic faults, allowing maintenance engineers to isolate power anomalies without pulling processor or I/O cards.
• Plug-Compatible Replacement: The DS200TCPDG2B installs into the TCPD slot without firmware configuration, reducing mean time to repair (MTTR) in emergency maintenance scenarios.
• EMC Compliance: On-board TVS protection and segmented ground planes reduce susceptibility to conducted and radiated interference, supporting continuous operation in high-noise industrial environments.
• Thermal Stability: Enhanced copper thermal paths in the G2B revision extend component life under sustained load, reducing the frequency of unplanned replacements driven by capacitor degradation.
• Supply Rail Monitoring Compatibility: The card’s output nodes are accessible to the Mark V’s internal diagnostics, enabling the control system to log supply voltage deviations and generate pre-fault alarms before a hard failure occurs.
• Long Service Life: Industrial-grade component selection and conformal coating (where applied) allow the DS200TCPDG2B to operate reliably across the 20–30 year service life typical of GE turbine control installations.
