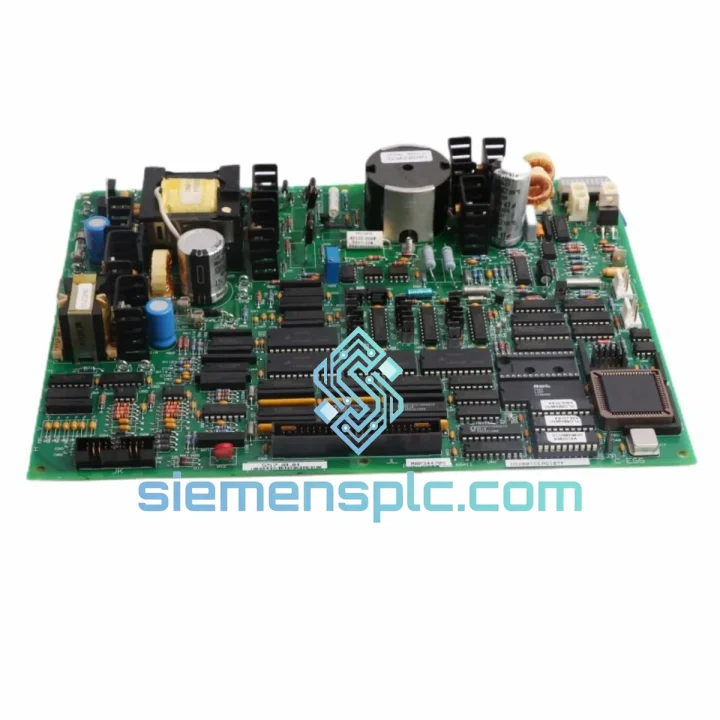

GE DS200TCEAG1APB Turbine Control Board

DS200TCEAG1APB: Every Hour of Turbine Downtime Costs You — We Ship Today

Your Mark V panel is down. The DS200TCEAG1APB TCE board has failed, and your gas turbine is locked out. Operations are halted. Every hour offline translates directly into lost megawatt-hours, contractual penalties, and pressure from plant management. You don’t need a sales pitch — you need the board on a plane today. We stock the DS200TCEAG1APB in Xiamen and dispatch via DHL Express within 24 hours of order confirmation. Most destinations in Southeast Asia, the Middle East, and Europe receive delivery within 3–5 business days. That’s the difference between a two-day outage and a three-week procurement nightmare.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The DS200TCEAG1APB sits at the intersection of excitation control and turbine sequencing logic. When it fails, the symptoms are rarely subtle.

Common Failure Signatures:

• Fault Code 65/66 — Excitation Loss: The TCE board handles AVR feedback. Persistent excitation fault trips with no upstream generator issue point directly to the analog conditioning circuitry on this board — specifically the op-amp stages on the excitation feedback path. Don’t waste time chasing the AVR until you’ve ruled out the TCE board.
• Fault Code 14 — I/O Bus Communication Failure: The DS200TCEAG1APB communicates over the Mark V ARCNET backplane. A degraded ARCNET transceiver on the board generates intermittent I/O bus faults that are nearly impossible to distinguish from cabling issues without board substitution. Swap the board first.
• Spurious Trip on Load Rejection: Degraded discrete input optocouplers misread trip signals during transient load events. If the unit trips cleanly under steady-state but fails on load rejection, the TCE board’s input conditioning is the primary suspect.
• Watchdog Reset Loops: A board with corrupted EPROM or failed firmware will cycle the Mark V controller into watchdog resets. On the TCCA panel, a repeating amber-red-amber LED sequence with no green lock typically indicates a TCE board handshake failure — not a software issue.

Replacement Procedure — Field Checklist:

• 1. Confirm slot assignment: DS200TCEAG1APB installs in the R, S, or T controller panel. Verify against your Mark V panel layout drawing. Wrong slot in a TMR system triggers a voting mismatch alarm immediately on power-up.
• 2. Power isolation: In TMR configurations, the remaining two controllers maintain control during a single-board swap. In simplex systems, coordinate a controlled shutdown. Never pull the TCE board under live backplane power without confirming hot-swap capability for your specific panel revision.
• 3. DIP switch documentation: The DS200TCEAG1APB carries address DIP switches. Photograph the original board’s switch positions before removal — this takes 10 seconds and prevents a configuration mismatch that could cost you another hour of troubleshooting post-installation.
• 4. Firmware revision check: The “APB” suffix denotes a specific PCB revision. Confirm your Mark V software version is compatible with this hardware revision. Mismatches produce silent I/O errors that are difficult to trace after installation.
• 5. Post-installation scan: Run a full Mark V diagnostic scan from the HMI. Confirm the TCE board appears in the I/O map with no fault flags. Execute a manual excitation test sequence before returning to automatic control.

Reliability in Harsh Conditions

Gas turbine control panels are not clean environments. Condensation, airborne particulates, corrosive gases from combustion byproducts, and salt-laden air in coastal installations all attack unprotected electronics within months. The DS200TCEAG1APB’s factory-applied conformal coating provides a continuous physical barrier across the PCB surface, protecting trace integrity and component leads from the chemical attack that causes premature failure in uncoated boards.

Vibration is a constant stress factor in turbine installations. The VME form factor distributes mechanical load across the full board length and edge connector, avoiding the stress concentration at a single mounting point that causes solder joint fatigue in smaller form-factor boards. Units that have been in service for 10+ years in high-vibration environments typically show fatigue at connector pins before PCB-level failures — which is why our pre-shipment inspection specifically targets connector pin condition and contact resistance.

Thermal cycling — the repeated expansion and contraction stress from turbine start-stop cycles — is the primary long-term failure mechanism for industrial control boards. GE’s Mark V hardware was designed with wider PCB trace geometries and through-hole component mounting on critical signal paths, providing substantially better thermal fatigue resistance than surface-mount-only designs. This is not an accident of era — it was a deliberate engineering choice for continuous industrial duty. When you install a DS200TCEAG1APB from our stock, you’re getting a board built to that same specification, not a cost-reduced substitute.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL Express and FedEx International Priority service to over 220 countries. From order confirmation to delivery, here’s the exact sequence:

• Day 0 — Confirmation: Payment cleared or credit terms confirmed. The DS200TCEAG1APB is pulled from shelf stock, inspected, and packed in ESD-safe anti-static packaging with foam-lined outer carton and humidity indicator card included.
• Day 1 — Export Documentation: Commercial invoice, packing list, and Certificate of Origin prepared. HS Code 8537.10 applied for customs classification. Destinations with specific import requirements are flagged proactively — we don’t let paperwork issues delay your shipment at the destination port.
• Day 1–2 — Carrier Handoff: Shipment handed to DHL Express or FedEx International Priority. Tracking number issued within 2 hours of carrier pickup. You’ll know exactly where your board is at every stage.
• Day 3–5 — Delivery: Southeast Asia, Middle East, and Europe typically receive delivery within 3–5 business days from Xiamen. North America is 4–6 business days. Remote destinations may require 6–8 business days.
• Critical Situations: If your turbine is offline and every hour counts, contact us directly on WhatsApp. Same-day dispatch is available for orders confirmed before 14:00 CST.
