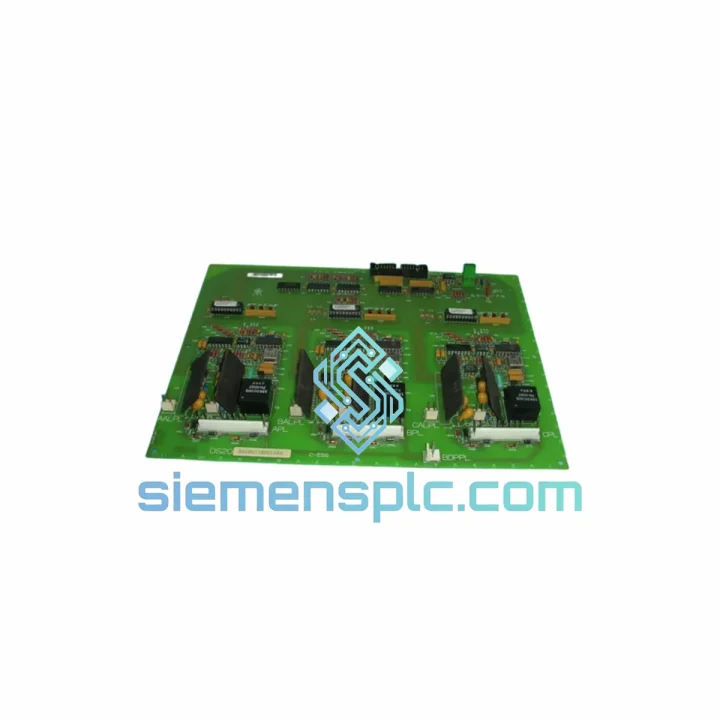

GE DS200IIBDG1AEA IGBT Gate Driver Board

DS200IIBDG1AEA Down? Every Minute of Downtime Costs You Money — We Ship Today

Your turbine excitation system or VFD just tripped. The fault log points to the gate driver board. You’ve already lost two hours pulling the drive apart. The DS200IIBDG1AEA is the choke point — without a verified replacement in hand, your line stays cold. We stock this board in Xiamen and dispatch via DHL Express within 24 hours of order confirmation. Most customers in Southeast Asia and the Middle East have the part on-site within 3–5 business days. Stop calculating downtime losses. Get the board moving.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on GE drive platforms, the DS200IIBDG1AEA fails in predictable patterns. Here’s what to check before you pull the trigger on a replacement — and what to watch when you install the new board.

Common Fault Signatures:

• Fault Code 7 / Gate Drive Fault: The most frequent indicator. Usually triggered by desaturation detection firing on a degraded IGBT or a failing gate driver output stage. Swap the gate driver first before condemning the IGBT module — a weak gate drive signal causes apparent IGBT desaturation even on a healthy power device.
• Asymmetric Phase Output / DC Bus Ripple: If one phase leg is misfiring, check the gate resistors on the DS200IIBDG1AEA. Cracked or drifted gate resistors cause timing skew between top and bottom switches, producing unbalanced output and elevated DC bus ripple.
• Intermittent UVLO Trips: Under-voltage lockout activating sporadically points to the auxiliary 15 V supply feeding the gate driver. Measure the isolated supply rail under load — if it sags below 13.5 V, the UVLO threshold triggers before the main fault logic can respond cleanly.
• No Gate Pulses on Scope: If you’re probing the gate-emitter terminals and seeing no switching activity on one or more channels, the optocoupler isolation stage on the DS200IIBDG1AEA has likely failed. This is a board-level fault — field repair is not practical under production pressure.

Replacement Procedure — Key Steps:

• De-energize the drive fully. Verify DC bus discharge to below 50 V before touching any board connectors. The bus capacitors on EX2100 and Mark VI drives hold charge for several minutes after power-off.
• Document the existing board’s DIP switch positions and jumper configuration before removal. The DS200IIBDG1AEA uses address switches for slot identification within the DS200 backplane — mismatched addressing causes the control processor to ignore the new board entirely.
• Inspect the IGBT module gate pins and emitter sense connections before installing the replacement. A shorted gate-emitter on the power device will destroy the new gate driver board within seconds of first power-up.
• After installation, perform a gate signal verification with an oscilloscope before closing the drive cabinet. Confirm symmetrical PWM output on all active channels, correct dead-time insertion, and clean switching edges without ringing that exceeds 10% of gate drive voltage.
• Firmware compatibility: the DS200IIBDG1AEA hardware revision must match the firmware version running on the DS200 control board. Check the GE drive revision matrix for your specific EX2100 or Mark VI software version before ordering if you are running non-standard firmware builds.

Reliability in Harsh Conditions

Gate driver boards in turbine control and heavy industrial VFD applications don’t live in clean rooms. The DS200IIBDG1AEA is built to GE’s industrial-grade specifications for environments that would kill consumer-grade electronics inside a week.

The board’s isolation transformers and optocoupler stages are rated for continuous operation in high-humidity environments — relevant for coastal power plants, offshore platforms, and tropical industrial facilities where condensation is a daily reality. Conformal coating on the PCB surface provides a barrier against moisture ingress and corrosive airborne contaminants common in petrochemical and pulp-and-paper facilities.

Vibration tolerance is engineered into the board’s mechanical design. Component lead lengths, solder joint profiles, and board mounting points are specified to withstand the continuous low-frequency vibration present in turbine halls and compressor stations. Field failures from vibration-induced solder fatigue are rare on genuine OEM boards — a key differentiator from aftermarket substitutes where component selection and soldering standards are unknown.

Thermal performance is maintained across the full 0°C to +55°C operating range without derating. The gate drive output voltage and timing parameters remain within specification across this range, ensuring consistent IGBT switching behavior whether the drive cabinet is in a cold northern facility in winter or a hot tropical plant room in summer.

Every unit we ship has passed incoming inspection: visual examination of board markings, date codes, component population, and solder quality. We do not ship boards with evidence of prior rework, burn marks, or component substitution.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx service connections to major industrial hubs worldwide.

• Order Cut-off: Orders confirmed before 14:00 CST ship same business day. Orders confirmed after cut-off ship next business day.
• Packaging: ESD-safe anti-static bag, foam-lined rigid carton, moisture barrier outer wrap. The board arrives in the same condition it left our warehouse.
• Carrier Options: DHL Express (preferred for speed), FedEx International Priority, or customer-nominated freight forwarder for large orders.
• Transit Times: Southeast Asia 2–4 days, Middle East 3–5 days, Europe 4–6 days, Americas 5–7 days. Times are estimates based on carrier performance — we provide tracking immediately upon dispatch.
• Customs Documentation: Commercial invoice, packing list, and HS code documentation prepared for all shipments. We have experience clearing industrial electronics through customs in over 40 countries — we know what documentation customs authorities require and we prepare it correctly the first time.
• Cargo Insurance: All shipments are insured at declared value. In the event of transit damage or loss, we handle the claim and ship a replacement without waiting for the insurance process to complete.
