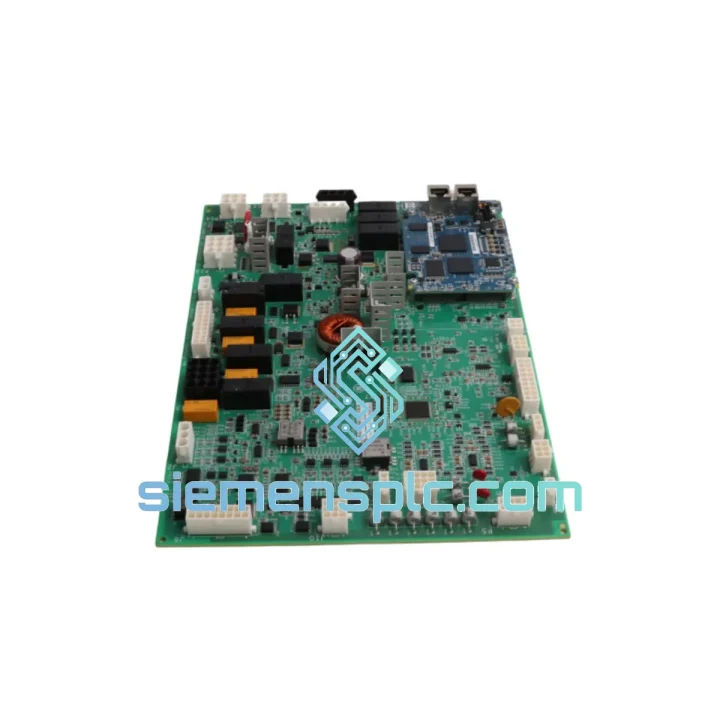

GE IS200AEPAH1BMF-P IS210BPPCH1AD Excitation Control Module – Mark VI EX2100

GE IS200AEPAH1BMF-P & IS210BPPCH1AD — Analog Excitation Protection Board and Backplane Interface Assembly for Mark VI Turbine Control

The GE IS200AEPAH1BMF-P is the Analog Excitation Protection board deployed within GE’s Mark VI and Mark VIe turbine control architecture. Paired with the IS210BPPCH1AD backplane interface board, this two-board assembly forms the signal conditioning and protection front-end for EX2100 and EX2100e static excitation systems. The IS200AEPAH1BMF-P occupies a dedicated slot in the Mark VI I/O rack, where it receives raw analog feedback from the generator field circuit — including field voltage, field current, and stator terminal voltage — and conditions those signals for the excitation controller’s closed-loop AVR (Automatic Voltage Regulator) algorithm. The IS210BPPCH1AD provides the physical VME-bus backplane connection, routing conditioned signals and power rails between the protection board and the rack’s internal communication fabric.

In a static excitation system, the generator field winding is powered directly from the generator terminals through a thyristor bridge rectifier. The AVR continuously adjusts thyristor firing angle to regulate terminal voltage under varying load conditions. Any degradation in the analog signal chain — noise injection, offset drift, or A/D conversion error — directly corrupts the firing angle calculation, producing voltage instability, reactive power oscillation, or, in worst cases, field forcing events that stress the rotor insulation. The IS200AEPAH1BMF-P addresses this risk through hardware-level signal isolation, precision instrumentation amplifiers, and onboard diagnostics that flag channel faults before they propagate into the control loop.

This assembly is qualified for GE heavy-duty gas turbine frames including the 7FA, 9FA, 7E, 9E, and 6B, as well as steam turbine generators in combined-cycle HRSG configurations. It is also deployed in LNG compression trains and industrial co-generation units where generator excitation stability is a contractual reliability requirement. The board set is not a generic analog I/O module; it carries GE-specific firmware, calibration constants, and connector pinouts that are integral to the Mark VI platform’s deterministic control behavior.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS200AEPAH1BMF-P’s signal path begins at the I/O terminal block, where field-side analog signals — typically in the range of ±10 V or 4–20 mA depending on transducer type — enter through shielded twisted-pair wiring. Each channel passes through a passive RC anti-aliasing filter with a cutoff frequency tuned to reject switching noise from the thyristor bridge (typically 300 Hz–1 kHz fundamental and harmonics). The filtered signal then enters a precision instrumentation amplifier stage with a common-mode rejection ratio (CMRR) exceeding 80 dB, which is critical in the high-EMI environment of a generator excitation cabinet where thyristor switching generates substantial conducted and radiated interference.

Following amplification, the signal is routed to a 16-bit SAR A/D converter. The SAR architecture is selected over delta-sigma for this application because it provides deterministic conversion latency — a fixed number of clock cycles per conversion — which is essential for the Mark VI’s time-deterministic scan cycle. Delta-sigma converters introduce variable group delay that would corrupt the phase margin of the AVR’s PI control loop. The converted digital value is latched into a dual-port SRAM buffer accessible by both the onboard FPGA and the VME backplane controller, enabling zero-wait-state data transfer to the UCVE processor board.

The IS200AEPAH1BMF-P also implements hardware-level channel watchdog logic. If any analog channel’s sampled value exceeds a configurable engineering-unit limit — stored in non-volatile EEPROM during commissioning — the board asserts a discrete fault output on the backplane within one scan cycle (typically 10 ms). This hardware fault assertion is independent of the software application running on the UCVE, providing a fail-safe layer that operates even during controller firmware faults. The IS210BPPCH1AD backplane board routes this fault signal to the Mark VI’s I/O health monitoring bus, where it is visible to the HMI and historian without requiring any application-layer polling.

EMC hardening on the IS200AEPAH1BMF-P includes a multi-layer PCB stackup with dedicated ground planes separating analog and digital domains, ferrite bead filtering on all power supply rails entering the analog section, and TVS diode arrays on all external-facing I/O pins rated for transient suppression per IEC 61000-4-5 (surge immunity, 1 kV line-to-earth). The board’s conformal coating provides additional protection against condensation and corrosive atmospheres common in coastal power plant environments.

System Integration Benefits

• Deterministic scan-cycle compatibility: The SAR A/D architecture delivers fixed-latency conversions that align precisely with the Mark VI’s 10 ms I/O scan period, preserving AVR loop phase margin and preventing control instability under dynamic load transients.
• TMR arbitration transparency: In triple-redundant Mark VI configurations, the IS200AEPAH1BMF-P participates in the IONET voting arbitration scheme. Each of the three R, S, T controllers reads its own IS200AEPAH1BMF-P channel data; the UCVE median-select algorithm discards outliers without operator intervention, maintaining excitation control continuity through single-board failures.
• Hardware-independent fault isolation: Onboard watchdog logic asserts backplane fault signals within one scan cycle, independent of application software state, enabling the Mark VI’s protection logic to initiate a controlled field de-energization before generator damage occurs.
• High CMRR for thyristor-noise environments: The 80+ dB CMRR of the instrumentation amplifier stage suppresses common-mode interference from thyristor switching transients, eliminating the need for external signal conditioning hardware and reducing panel wiring complexity.
• Non-volatile calibration storage: Channel scaling constants and engineering-unit limits are stored in onboard EEPROM, surviving power cycles without requiring re-commissioning. This reduces planned maintenance downtime during board replacement events.
• Direct HMI diagnostic visibility: Fault status is routed to the Mark VI I/O health bus and surfaced in the ToolboxST diagnostic display, giving control room operators and maintenance engineers real-time channel-level health data without requiring physical access to the I/O rack.
• Drop-in form-fit-function replacement: The IS200AEPAH1BMF-P maintains identical connector pinout, slot assignment, and firmware interface as the original GE production board, enabling hot-swap replacement in simplex configurations and planned replacement in TMR configurations without system reconfiguration or firmware re-flashing.
• Conformal coating for harsh environments: IPC-CC-830 compliant acrylic coating protects the PCB assembly against humidity, salt fog, and light chemical exposure, extending mean time between failures (MTBF) in coastal and industrial plant environments where uncoated boards typically show accelerated corrosion within 3–5 years.
• Reduced spare-parts inventory complexity: The IS200AEPAH1BMF-P and IS210BPPCH1AD are stocked as a matched assembly, eliminating the risk of backplane-to-board revision mismatches that can cause intermittent communication faults in the field.

Quality Assurance & Global Logistics

Every IS200AEPAH1BMF-P and IS210BPPCH1AD unit supplied by siemensplc.com undergoes a structured incoming inspection and functional verification process before dispatch. Visual inspection covers PCB surface condition, connector pin integrity, component seating, and conformal coating continuity. Functional bench testing uses GE-compatible VME test fixtures to verify analog channel accuracy, fault output assertion timing, and backplane communication handshake. Each unit is serialized and logged with inspection date and technician ID, providing full traceability for warranty claims and audit purposes.

Units are packaged in ESD-safe anti-static bags, enclosed in custom-cut polyethylene foam inserts, and sealed in moisture-barrier outer packaging with desiccant packs. This packaging specification meets IATA requirements for air freight of sensitive electronic assemblies and has been validated through repeated DHL and FedEx Express shipments to power plants in Southeast Asia, the Middle East, and Europe without transit damage incidents.

Dispatch from our Xiamen, China warehouse typically occurs within 1–3 business days for in-stock units. Express air freight via DHL Express, FedEx International Priority, or UPS Worldwide Express delivers to most destinations within 3–5 business days from dispatch. Full commercial invoice, packing list, and certificate of origin documentation are provided with every shipment to support customs clearance. Emergency same-day dispatch is available for critical plant outage situations — contact us directly via WhatsApp for expedited processing.

All units carry a 12-month warranty from the date of shipment, covering functional defects under normal operating conditions. Warranty claims are processed within 5 business days, with advance replacement available for critical applications to minimize plant downtime.
