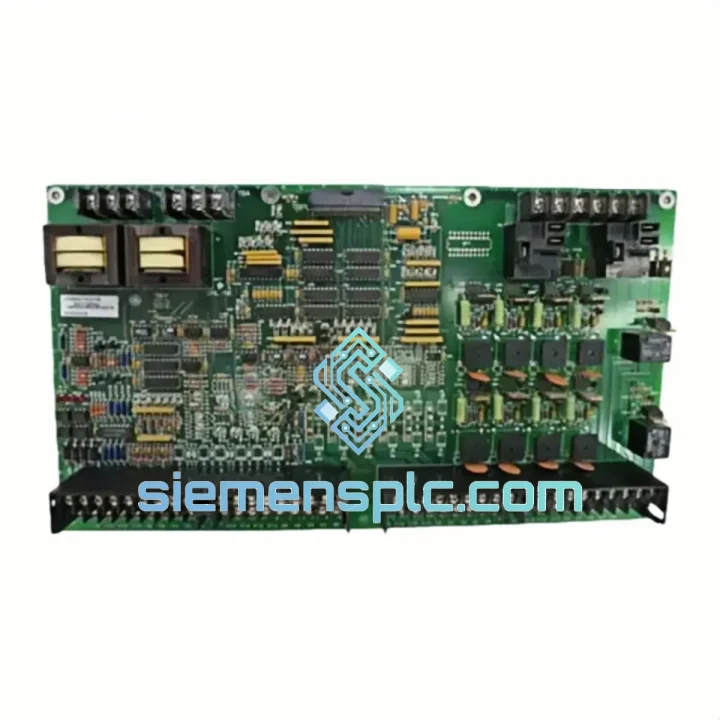

GE DS200RTBAG2AGL Relay Terminal Board – Mark VI Series

GE DS200RTBAG2AGL Relay Terminal Board – Discrete Output Interface for Mark VI Turbine Control

The DS200RTBAG2AGL is a relay terminal board manufactured by GE Power & Water, designed as a dedicated discrete output interface within the Mark VI turbine control architecture. Its primary function is to terminate field-side relay wiring and route dry-contact switching signals between the Mark VI I/O packs — specifically the VCMI, VTUR, and VSVO families — and the physical actuators, solenoids, and motor starters installed in turbine balance-of-plant systems. Unlike generic relay modules, this board is engineered to the exact electrical and mechanical envelope of the DS200 rack system, ensuring deterministic signal integrity across the full operating temperature range of a turbine enclosure.

In a Mark VI control loop, the DS200RTBAG2AGL occupies the terminal layer between the I/O pack and the field device. The I/O pack drives relay coils on this board; the board’s dry contacts then switch field-level voltages — typically 24 VDC or 120 VAC — to energize solenoid valves, trip relays, or motor contactor coils. This two-stage architecture isolates the low-voltage logic circuitry of the I/O pack from the higher-energy field circuits, a design choice that directly reduces fault propagation risk in safety-critical turbine applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DS200RTBAG2AGL implements a galvanic isolation boundary between the Mark VI I/O pack’s 5 VDC logic rail and the field-side relay coil drive circuit. Each relay channel uses an optocoupler front-end: the I/O pack drives an LED inside the optocoupler at a controlled forward current (typically 5–10 mA), and the phototransistor output then drives the relay coil through a transistor switch. This two-stage isolation chain achieves a minimum isolation voltage of 1,500 VAC between the logic side and the relay coil, which is the standard threshold for industrial relay terminal boards operating in environments with high common-mode noise from variable-frequency drives (VFDs) and large motor starters.

The relay contacts themselves are rated for resistive loads at the coil voltage levels typical of turbine auxiliary circuits. The dry-contact architecture means the board does not supply field voltage — the field circuit’s own power source is switched by the relay contact. This design eliminates the risk of a board-level power supply fault propagating into the field circuit, a failure mode that has caused spurious trips in older, non-isolated relay output designs.

EMC performance is addressed at the PCB layout level. Ground planes are segmented to prevent high-frequency switching transients from relay coil collapse (back-EMF) from coupling into the logic traces. Flyback suppression diodes are placed across each relay coil to clamp the inductive spike to within 1 V above the coil supply rail, protecting the transistor driver from avalanche breakdown. The conformal coating provides additional protection against condensation-induced leakage currents, which are a documented failure mechanism in turbine enclosures that experience thermal cycling during start-stop operations.

The G2AGL revision suffix indicates a specific hardware revision that aligns with the firmware handshake protocol used by second-generation Mark VI I/O packs. In TMR (Triple Modular Redundant) configurations, all three relay terminal boards in a redundant channel must carry the same revision suffix to ensure that the voting logic in the VCMI pack receives consistent contact state feedback. Revision mismatches in TMR systems have been documented to cause nuisance diagnostic alarms without affecting control output, but they represent a configuration non-conformance that GE field service engineers will flag during outage inspections.

System Integration Benefits

• Direct rack compatibility: The DS200RTBAG2AGL mounts directly into the DS200 terminal board rack without adapter hardware, preserving the original cable routing and eliminating the need for field wiring modifications during board replacement.
• Deterministic relay response time: The optocoupler-to-relay drive chain introduces a fixed propagation delay of less than 5 ms from I/O pack command to contact closure, which is within the Mark VI’s 10 ms discrete output scan cycle, ensuring no additional latency is introduced at the terminal board layer.
• Diagnostic transparency: The Mark VI VCMI pack continuously monitors relay coil current draw through the I/O pack’s output driver diagnostics. A failed relay coil or open-circuit field wiring is detected within one scan cycle and reported as a hardware fault in the ToolboxST diagnostic display, enabling maintenance teams to isolate the fault to the specific relay channel without removing the board.
• TMR voting integrity: In triple-redundant configurations, the board’s consistent contact state reporting ensures that the Mark VI’s 2-out-of-3 voting logic operates on accurate discrete state data, preventing spurious trips caused by single-channel relay failures.
• Reduced spare parts complexity: The DS200RTBAG2AGL is interchangeable across multiple Mark VI I/O pack types (VTUR, VSVO, VCMI), allowing a single spare board to cover multiple relay output functions in a turbine control panel, reducing the total spare parts inventory required for outage readiness.
• Conformal coating longevity: The IPC-CC-830 conformal coating extends the board’s service life in environments with relative humidity up to 95% (non-condensing), which is relevant for turbine enclosures in coastal or tropical installations where ambient humidity management is imperfect.
• Field wiring retention: Screw-terminal barrier strips accept ring-lug and fork-lug terminations, which are the standard field wiring termination methods in turbine control panels. This eliminates the need to re-terminate field wires during board replacement, reducing outage duration by 30–60 minutes per board swap compared to connector-based terminal board designs.
• Backward traceability: The revision suffix (G2AGL) is permanently marked on the board’s silkscreen and barcode label, enabling maintenance records to document the exact hardware revision installed at each relay output channel, which is required for NERC CIP asset configuration documentation in power generation facilities.

Quality Assurance & Global Logistics

Every DS200RTBAG2AGL unit shipped from our Xiamen, China facility undergoes a structured inspection protocol before dispatch. Visual inspection covers PCB surface condition, relay body integrity, screw-terminal torque verification, and conformal coating continuity. Electrical verification includes relay coil resistance measurement (compared against GE’s published nominal values), contact continuity check across all relay channels in both energized and de-energized states, and isolation resistance measurement between the logic side and field-side terminals at 500 VDC.

Units sourced as new surplus are inspected against GE’s original packaging and date code documentation. Tested refurbished units are accompanied by a functional test report upon request, documenting the test date, technician ID, and pass/fail results for each relay channel. All units are packaged in anti-static bags compliant with JEDEC JESD625 ESD handling requirements, placed in foam-lined cartons rated for international air freight handling.

Shipping is via DHL Express, FedEx International Priority, or UPS Worldwide Express, with typical transit times of 3–5 business days to North America and Europe, and 2–4 business days to Southeast Asia and the Middle East. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) — is prepared for every shipment to facilitate customs clearance. Emergency same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

The 12-month replacement warranty covers manufacturing defects and relay contact failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with a replacement unit dispatched upon confirmation of the defect.
