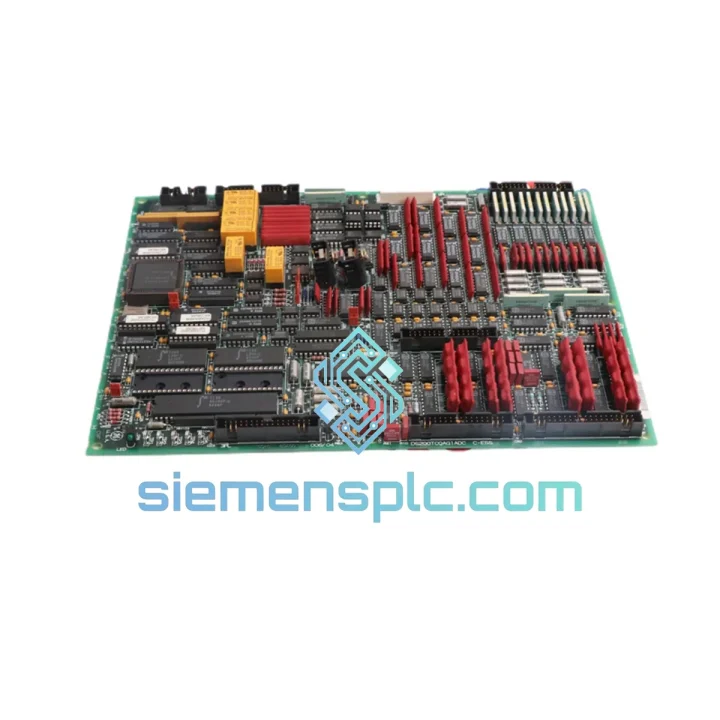

GE DS200TCCAG1BAA Analog I/O Board – Mark V TC2000

GE DS200TCCAG1BAA TC2000 Analog I/O Board — Signal Conditioning Core of Mark V Speedtronic Turbine Control

The DS200TCCAG1BAA is a thermocouple and analog signal conditioning board engineered by General Electric for deployment within the Mark V Speedtronic turbine control architecture. Its primary function is to serve as the analog front-end interface between field-mounted thermocouple sensors and the Mark V’s core processing cards, executing real-time temperature acquisition, cold-junction compensation, and linearization across multiple input channels simultaneously. In gas turbine and steam turbine applications, where exhaust gas temperature (EGT) gradients and bearing temperature profiles must be resolved to within ±1°C under high-EMI field conditions, the DS200TCCAG1BAA provides the hardware-level signal integrity that digital processing alone cannot guarantee.

This board occupies a defined slot within the TC2000 I/O chassis, interfacing directly with the Mark V’s R, S, and T redundant control processors via the high-speed backplane bus. Its architecture is designed to sustain deterministic scan cycles regardless of field wiring noise, making it a load-bearing component in any turbine protection and sequencing loop.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DS200TCCAG1BAA’s analog front-end is built around a multiplexed 16-bit successive-approximation ADC architecture. Each thermocouple input channel is routed through a precision instrumentation amplifier stage with a programmable gain array (PGA), allowing the board to accommodate the full millivolt-range output span of Type B thermocouples (0–13.82 mV at 1820°C) through to the higher-output Type J range (0–69.55 mV at 1200°C) without external ranging resistors. The PGA gain is set digitally by the Mark V processor during initialization, eliminating manual calibration jumpers and reducing maintenance intervention points.

Cold-Junction Compensation (CJC): Rather than relying on software-based ambient temperature lookup tables, the DS200TCCAG1BAA implements a hardware isothermal reference block at the field terminal strip. A precision thermistor embedded in the terminal block continuously measures the local junction temperature and feeds this value into a dedicated CJC correction amplifier. This hardware-first approach eliminates the latency and quantization error that software CJC introduces, particularly critical in turbine applications where EGT spread calculations across 12–24 thermocouple zones must be resolved within a single 20 ms scan cycle.

EMC and Noise Rejection: The board employs differential input topology across all analog channels, providing common-mode rejection ratios (CMRR) exceeding 100 dB at 50/60 Hz. This is essential in turbine generator environments where high-current AC bus bars and excitation systems generate substantial electromagnetic interference. A multi-stage RC filter network at each input further attenuates high-frequency noise above 1 kHz before the signal reaches the ADC sampling stage. The opto-isolation barrier between the field-side analog circuitry and the backplane-side digital logic provides galvanic isolation rated to withstand transient overvoltages consistent with IEC 61000-4-5 surge immunity requirements.

Redundancy Arbitration: Within the Mark V’s TMR (Triple Modular Redundancy) architecture, the DS200TCCAG1BAA participates in voted signal arbitration. Each of the three Mark V control processors (R, S, T) reads the same analog channel data independently via the backplane. The Mark V’s voter logic then compares the three digitized values; if one processor’s reading deviates beyond a configurable threshold, the voter flags a mismatch alarm and excludes that processor’s data from the control output calculation. The DS200TCCAG1BAA’s low channel-to-channel cross-talk specification (typically <-80 dB) ensures that a fault on one input channel does not corrupt adjacent channel readings, preserving the integrity of the voter’s comparison dataset.

System Integration Benefits

• Zero-modification backplane compatibility: The DS200TCCAG1BAA conforms to the Mark V TC2000 chassis mechanical and electrical specification without requiring firmware patches or hardware rework, enabling direct slot-for-slot replacement in live systems during scheduled outage windows.
• Deterministic scan cycle support: The board’s hardware multiplexer and ADC complete a full channel scan within the Mark V’s 20 ms control frame, ensuring that thermocouple data is never stale relative to the protection logic’s decision epoch.
• Diagnostic transparency via CIMPLICITY integration: Fault flags generated by the DS200TCCAG1BAA — including open-thermocouple detection, over-range alarms, and CJC sensor failure — are mapped directly to Mark V diagnostic registers accessible through GE’s CIMPLICITY HMI, providing operators with channel-level fault resolution without requiring board extraction.
• Open-thermocouple detection: A bias current injection circuit on each input channel detects open-circuit field wiring conditions within one scan cycle and asserts a hardware fault flag, preventing the control system from acting on a frozen or invalid temperature reading.
• Reduced calibration overhead: Hardware CJC and factory-calibrated PGA gain settings eliminate the need for periodic field calibration of the board itself; only the field thermocouples require scheduled calibration per plant maintenance procedures.
• Multi-thermocouple type support without rewiring: The software-configurable input type selection allows plant engineers to reassign channel thermocouple types during commissioning or system modification without physical hardware changes, reducing outage duration for control system reconfigurations.
• Galvanic isolation protects control system integrity: The opto-isolation barrier prevents ground loops and transient overvoltages originating in the field wiring from propagating into the Mark V backplane, protecting the R, S, T processor cards from damage during lightning events or motor start transients.
• Spare-parts program compatibility: The DS200TCCAG1BAA’s long production history and standardized form factor mean it is stocked by authorized distributors globally, supporting power plant operators’ spare-parts inventory programs with predictable lead times and interchangeable units across multiple turbine frames.

Quality Assurance & Global Logistics

Every DS200TCCAG1BAA unit supplied by siemensplc.com is sourced as genuine General Electric OEM hardware through verified industrial supply channels. Prior to dispatch, each board undergoes a structured inspection protocol: visual examination of PCB surface, component seating, and connector integrity; label and date-code authentication against GE manufacturing records; and where test fixtures are available, powered functional verification against reference parameters. Units are packaged in anti-static ESD shielding bags, placed in foam-lined cartons, and accompanied by an inspection certificate and packing list.

Logistics operations are managed from Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. In-stock units are dispatched within 1–3 business days of order confirmation. For urgent plant outage requirements, same-day dispatch is available for orders confirmed before 14:00 CST. International shipments are supported with full export documentation including commercial invoice, packing list, and certificate of origin. HS Code classification assistance and customs pre-clearance documentation are provided on request to minimize border delays for buyers in the EU, Americas, Middle East, and Southeast Asia.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued accordingly.
