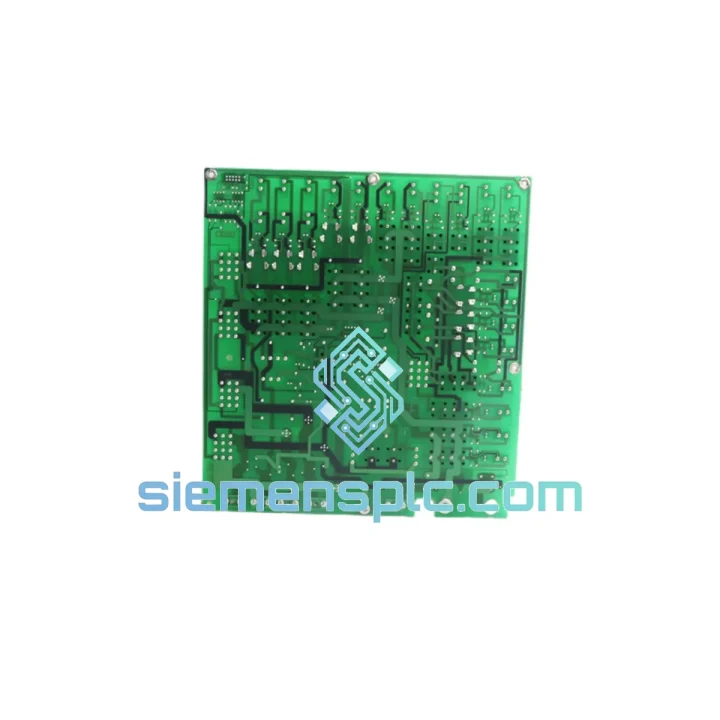

GE DS200TCEAG28TF Input Control Card

DS200TCEAG28TF: Stop the Clock on Your Turbine Downtime — Ship Within 24 Hours

Every hour your Mark VI turbine control system sits offline, you’re bleeding money. A failed DS200TCEAG28TF Input Control Card doesn’t just halt one machine — it can cascade into a full unit trip, triggering safety shutdowns, missed generation targets, and contractual penalties. We’ve seen it happen at Frame 7 sites in the Middle East and combined-cycle plants across Southeast Asia. The fix is always the same: get the right card, get it fast, get it installed correctly.

We stock the GE DS200TCEAG28TF at our Xiamen warehouse. Verified original. Inspected before dispatch. DHL/FedEx express to your site — most destinations in 2–4 business days.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The DS200TCEAG28TF fails in predictable ways. Here’s what field experience actually looks like:

Fault Code L30DIAG / L30TCEF: This is the most common alarm you’ll see when this card starts degrading. It indicates a TCE diagnostic failure — the controller has detected a mismatch in the 2-of-3 voting logic. Don’t immediately assume the card is dead; first check the IONet ribbon cable seating and the terminal board connector. A loose P1 connector on the TBCI terminal board accounts for roughly 30% of these calls. If reseating doesn’t clear it within two scan cycles, the card itself is the culprit.

Replacement Procedure (TMR Configuration):

1. In GE Toolbox, navigate to the I/O rack view and confirm which R, S, or T controller the failing card is assigned to. Note the slot address — you’ll need it for post-swap verification.
2. Force the affected controller to a non-voting state via the Toolbox diagnostic panel before pulling the card. Never yank a card from a live TMR rack without doing this — you risk dropping from TMR to Simplex mid-operation, which some safety systems will interpret as a trip condition.
3. Ground yourself. ESD damage to the analog front-end of this card is irreversible and won’t always show up immediately — it manifests as intermittent signal drift weeks later.
4. Seat the replacement DS200TCEAG28TF firmly until the card latch clicks. Partial seating causes intermittent IONet communication errors that are notoriously difficult to diagnose remotely.
5. Re-enable the controller in Toolbox and monitor the diagnostic screen for 2–3 scan cycles. Confirm L30DIAG clears and the card appears healthy in all three controllers.
6. Check firmware revision. The replacement card must match the firmware version of the other two TCE cards in the TMR set. Mismatched firmware between R/S/T cards causes subtle voting discrepancies that won’t trip the system immediately but will generate nuisance alarms. Use Toolbox to download the correct firmware build if needed.
7. Verify all analog input channels against known-good field transmitter readings. A 4–20 mA loop check on each channel takes 20 minutes and saves you a callback.

Simplex Configuration Note: In Simplex Mark VI installations, replacing this card requires a controlled shutdown of the associated I/O group. There is no redundancy to absorb the swap. Coordinate with operations before proceeding.

Terminal Board Compatibility: Confirm your terminal board part number before ordering. The DS200TCEAG28TF mates with DS200-series TBCI or equivalent terminal boards. Mismatched terminal boards are a common procurement error — send us your system drawing and we’ll verify compatibility before we ship.

Reliability in Harsh Conditions

Mark VI installations don’t live in clean rooms. They live in turbine enclosures where ambient temperatures swing from desert heat to sub-zero winter startups, where vibration from the turbine shaft transmits directly into the control cabinet, and where humidity from coastal or offshore environments attacks every exposed connector.

The DS200TCEAG28TF was designed with this reality in mind. The PCB uses conformal coating on the analog signal conditioning circuitry — this is not a standard commercial-grade board. The coating resists moisture ingress and prevents conductive contamination from airborne particulates common in industrial environments. Component selection prioritizes extended temperature range parts over standard commercial tolerances.

Vibration performance: the card is mechanically retained by the VME card guide and front-panel latch system, which prevents the micro-fretting on edge connectors that kills cards in high-vibration installations. We’ve seen DS200TCEAG28TF units pulled from Frame 9 sites after 12+ years of continuous service that still bench-test within spec.

That said, electrolytic capacitors on the power conditioning section do age. If your card is showing intermittent power rail instability — visible as erratic analog readings that don’t correlate with field conditions — and the card is more than 8 years old, replacement is more cost-effective than repair. We can supply a tested replacement faster than most repair shops can turn around a board evaluation.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-connected cities on the eastern seaboard, with direct DHL and FedEx gateway access. Here’s how a typical urgent order moves:

• Day 0 (Order Confirmed): Card pulled from stock, inspected, ESD-bagged, and packed in double-wall carton with foam cushioning. Export documentation prepared — commercial invoice, packing list, and HS code declaration (8537.10 for control cards).
• Day 1: DHL Express or FedEx International Priority pickup. Tracking number issued to you within 2 hours of collection.
• Day 2–3: Most destinations in Southeast Asia, Middle East, and Europe receive the shipment. North America typically Day 3–4 depending on customs clearance speed.
• Customs: We declare accurately. We do not under-declare value to reduce duties — this creates customs holds that cost you more time than the duty savings. If your site requires specific import documentation (Form E, EUR.1, etc.), advise us at order time.
• Tracking: Full end-to-end tracking shared via email. WhatsApp updates available for urgent shipments on request.

For bulk orders or sites with recurring Mark VI maintenance needs, we can discuss consignment stock arrangements or blanket purchase orders to eliminate lead time entirely.

Contact Information

Ready to order or need a part number cross-reference check before committing?

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
