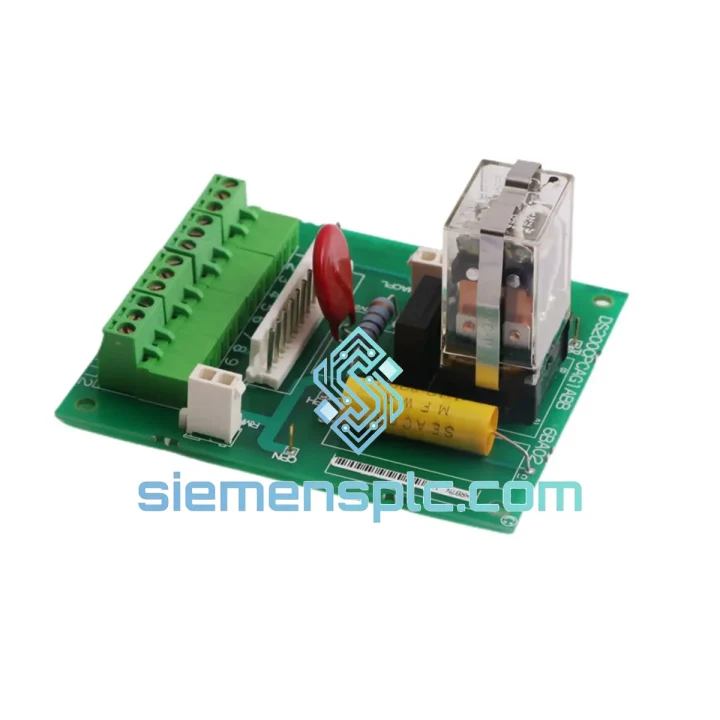

GE DS200TCERG2BTF Overspeed Trip Board

GE DS200TCERG2BTF — Turbine Tripped, Clock Running: Get the Right Board Shipped Before the Next Shift

A hardwired overspeed trip board failure is not a software problem. You cannot reset it from the HMI. You cannot patch around it. The DS200TCERG2BTF sits outside the processor loop by design — it is the last line of defense before mechanical overspeed destroys the machine, and when it fails, the turbine stays down until a verified replacement is seated in the rack. Every hour of forced outage at a gas or steam turbine site carries a cost that dwarfs the price of this board by orders of magnitude. We stock the DS200TCERG2BTF in Xiamen specifically because GE’s own lead times do not match the urgency of a plant-down event. We do. Orders confirmed before 14:00 CST ship same day via DHL Express or FedEx International Priority.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Step 1 — Confirm the fault is the board, not the sensor. Fault codes L30VSCL (channel low-side diagnostic) and L30VSC (hard channel fault) both point toward the DS200TCERG2BTF, but a degraded magnetic pickup unit (MPU) with insufficient output voltage produces identical alarm signatures. Measure MPU signal amplitude at the terminal block before condemning the board. A failed sensor cable has triggered more than one unnecessary board replacement. Confirm the signal is within specification. If it is, the board is the fault source.

Step 2 — No hot-swap. LOTO before extraction. The DS200TCERG2BTF is wired directly into the turbine’s emergency trip circuit. Removing it under power risks latching a spurious trip signal into the TMR voting logic and can damage the backplane connector. Coordinate with the control room, confirm safe shutdown state, and execute your site lockout/tagout procedure before touching the board. Non-negotiable.

Step 3 — Photograph the DIP switch bank before removal. This is the step skipped under pressure that causes a second outage. The DS200TCERG2BTF uses onboard DIP switches to define the overspeed trip setpoint multiplier and the TMR channel assignment (R, S, or T). The replacement unit ships in factory default switch state. Replicate the original configuration exactly. An incorrect setpoint is a safety-critical error that will not surface until the turbine reaches operating speed.

Step 4 — Verify BTF revision compatibility against your TCR. The BTF hardware suffix is not interchangeable with all DS200TCERG2 variants. Cross-reference against your turbine’s Configuration Record and the TCCB firmware version per GE reference document GEH-6421. A revision mismatch may not throw an immediate fault — it can produce intermittent diagnostic alarms that are extremely difficult to trace back weeks later.

Step 5 — Run EEPROM initialization before attempting turbine start. After seating the replacement board and restoring cabinet power, open Mark VI Toolbox and execute the EEPROM initialization sequence. The controller re-flashes the board’s application configuration from the stored TCR. Do not attempt start until the TCERG board clears all self-diagnostics and overspeed channel status signals show healthy on the HMI. A board that initializes but holds a residual alarm requires further investigation — do not override it.

Fault code reference for DS200TCERG2BTF failures:

• L30VSCL — Channel low-side diagnostic; verify MPU wiring before board swap
• L30VSC — Hard channel fault; board replacement is the primary resolution path
• EEPROM Checksum Fault — Memory corruption from power transient or component aging
• TMR Speed Channel Vote Mismatch — One channel deviating from the other two; isolate to TCERG after confirming MPU signals are clean across all three channels
• Overspeed Test Fail — Board not responding to the periodic test sequence; verify DIP switch configuration and firmware compatibility before ordering replacement

Reliability in Harsh Conditions

Gas turbine control rooms are not data centers. Cabinet temperatures swing with ambient load cycles. Vibration from the turbine foundation transmits through the floor and into the control rack. Coastal and tropical facilities deal with humidity that penetrates every enclosure gap over years of operation. The DS200TCERG2BTF was engineered for this environment — not in spite of it.

GE applied conformal coating to the TCERG2BTF PCB to address condensation and airborne contamination endemic to power generation and oil & gas sites. The coating creates a dielectric barrier over PCB traces and component leads, blocking electrochemical migration that causes intermittent shorts on uncoated boards in humid environments. This is a measurable engineering specification — the field-failure rate difference between coated and uncoated boards at the same facility is not marginal.

Vibration-induced solder joint fatigue is the primary cause of intermittent faults on aging Mark VI hardware. The symptom is a board that passes every bench test but fails within hours of reinstallation. Our refurbished units are inspected under magnification for micro-cracking at BGA and through-hole joints. Any board showing fatigue cracking is rejected regardless of functional test result. All inventory is stored in temperature-stable, ESD-controlled conditions in our Xiamen facility. What ships is what we tested — no pre-shipment thermal degradation from uncontrolled ambient storage.

Global Express Logistics

Xiamen operates direct DHL Express and FedEx International Priority pickup routes every business day. The sequence from order confirmation to your site is fixed and repeatable:

• Orders confirmed before 14:00 CST: Board packed, export documents prepared, and handed to courier same day — no queuing, no next-day processing.
• Export documentation: Commercial invoice, packing list, and HS 8537.10 declaration prepared within 90 minutes of order confirmation. Controlled-destination shipments are flagged proactively with routing advice before dispatch.
• Transit benchmarks from Xiamen: Southeast Asia 24–36 hrs | Middle East 48–60 hrs | Europe 48–72 hrs | North America 60–84 hrs | South America / Africa 72–96 hrs.
• Tracking: AWB number sent immediately upon courier pickup scan. We monitor active shipments and alert you to customs holds before you need to follow up.
• Packaging: Anti-static shielding bag → closed-cell foam insert → double-wall corrugated outer carton. Board condition on arrival matches board condition at dispatch.
• Complex import markets: India, Brazil, Saudi Arabia, Nigeria, Indonesia — we have cleared customs into all of these. Advise your destination country upfront and we will confirm documentation requirements before shipment.

Contact Information

The turbine is not waiting. Neither are we.

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com

Plant-down inquiries are triaged immediately. Lead with your situation in the first message — turbine frame, fault code, and destination country. We move faster when we know what is at stake.
