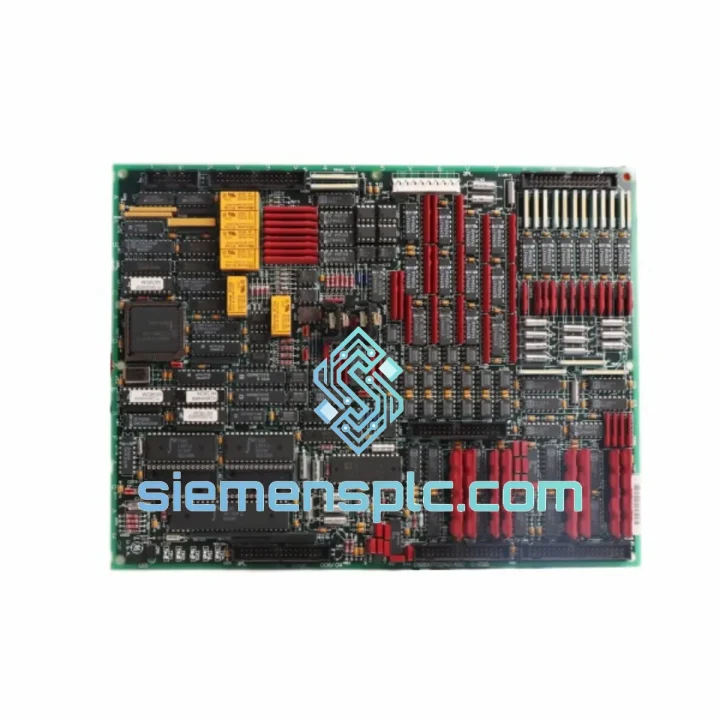

GE DS200TCQAG1A Analog I/O Board – Mark V

GE DS200TCQAG1A: Analog Signal Conditioning Interface for Mark V Turbine Control Architecture

The DS200TCQAG1A is a factory-specified analog input/output board engineered for deployment within General Electric’s Mark V turbine control system. Positioned within the TCQA panel sub-rack, this board functions as the primary analog signal interface layer between field instrumentation and the Mark V’s core processing logic. Its role is not peripheral — it sits directly in the deterministic signal path that governs turbine speed regulation, exhaust temperature profiling, and vibration envelope monitoring. Any degradation in this board’s signal conditioning accuracy propagates directly into control loop error, making component integrity non-negotiable in operational environments.

Unlike generic I/O modules, the DS200TCQAG1A is calibrated at the factory to match the analog front-end requirements of the Mark V’s R, S, and T processor triplex voting architecture. Each analog channel is conditioned to deliver consistent resolution across the full industrial temperature range, ensuring that the triplex median-select logic receives coherent data from all three redundant paths.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DS200TCQAG1A implements a multi-stage analog front-end architecture. Field signals enter through a passive filter network that attenuates high-frequency conducted noise — a necessary design measure given that turbine control panels are routinely exposed to switching transients from large motor drives and ignition systems operating in the same electrical environment.

Following the input filter stage, each channel passes through an instrumentation amplifier with a high common-mode rejection ratio (CMRR), typically exceeding 80 dB at 50/60 Hz. This characteristic is critical in turbine applications where thermocouple leads may run several meters through cable trays shared with high-voltage power wiring, inducing common-mode interference that would otherwise corrupt temperature readings.

Optical isolation is implemented between the field-side analog circuitry and the backplane-side digital logic. This galvanic barrier prevents ground loop currents — a persistent problem in large rotating machinery installations where ground potential differences between the turbine skid and the control room can reach several volts — from introducing offset errors into the analog measurement chain.

The board’s output section uses precision digital-to-analog converters (DACs) with output buffering capable of driving resistive loads typical of electro-hydraulic servo valve (EHSV) positioners and pneumatic I/P transducers. Output current compliance is maintained across the full load range without requiring external signal conditioning hardware.

From an EMC standpoint, the board layout follows controlled-impedance PCB design practices. Analog and digital ground planes are separated and joined at a single star point, minimizing digital switching noise coupling into the sensitive analog measurement paths. Decoupling capacitors are placed at each IC power pin, and the board edge is routed with a guard ring to reduce susceptibility to electrostatic discharge events during maintenance operations.

System Integration Benefits

• Triplex Voting Compatibility: The DS200TCQAG1A’s calibrated output data feeds directly into the Mark V’s R, S, T processor median-select logic, preserving the integrity of the 2-out-of-3 fault tolerance architecture without requiring additional signal normalization.
• Zero-Reconfiguration Installation: As the OEM-specified board for the TCQA panel slot, it installs without firmware parameter changes or I/O mapping adjustments — reducing commissioning time and eliminating configuration-induced faults.
• Deterministic Scan Cycle Contribution: The board’s analog-to-digital conversion latency is matched to the Mark V’s fixed scan period, ensuring that analog data is available to the control algorithm within the same execution frame without introducing variable latency that would degrade PID loop performance.
• Diagnostic Transparency: The board supports the Mark V’s built-in diagnostic routines, enabling the system to detect open-circuit thermocouple inputs, out-of-range analog signals, and board-level faults without external test equipment.
• Field Sensor Flexibility: Multi-sensor input compatibility (thermocouple, RTD, milliamp, voltage) allows a single board to serve multiple measurement functions within the same panel, reducing spare parts inventory complexity.
• Galvanic Isolation for Ground Loop Immunity: Optical isolation on all field inputs eliminates ground loop interference paths, maintaining measurement accuracy in installations where turbine skid and control room grounds are not at the same potential.
• Reduced MTTR: Hot-swap-compatible with the Mark V panel’s card-cage design (with appropriate system precautions), the DS200TCQAG1A can be replaced during a controlled maintenance window without full system shutdown in non-critical channel configurations.
• Long-term Parts Availability: Stocked as a managed spare at our Xiamen facility, with documented traceability records, ensuring that aging Mark V installations can maintain operational continuity without extended lead times from OEM channels.
• ESD-Protected Handling Chain: All units are handled, tested, and shipped in anti-static packaging with humidity indicators, preserving the integrity of CMOS-sensitive analog front-end components throughout the logistics chain.
• Documented Test Traceability: Each unit shipped is accompanied by a functional test record, providing the receiving engineer with objective evidence of board performance prior to installation.

Quality Assurance & Global Logistics

Every DS200TCQAG1A unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Boards sourced from OEM surplus and authorized distribution channels are inspected for physical integrity, connector condition, and component-level anomalies before entering stock. Refurbished units are subjected to functional bench testing that replicates the Mark V backplane power environment and exercises all analog input and output channels across their specified operating ranges.

Traceability documentation — including lot records, serial numbers, and test reports — is maintained for each unit and provided to the customer upon request. This documentation supports the receiving inspection process and satisfies the audit requirements of ISO 9001-compliant maintenance programs.

Shipment from Xiamen is executed via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–7 business days to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas. Export documentation including commercial invoices, packing lists, and certificates of origin is prepared in compliance with destination country customs requirements. For projects requiring Incoterms-specific arrangements (EXW, CIF, DAP), our logistics team coordinates directly with the customer’s freight forwarder.

All units are packed in ESD-safe anti-static bags, placed in foam-lined rigid cartons, and sealed with tamper-evident tape. Fragile and electrostatic-sensitive labels are applied to all outer packaging. This packaging standard ensures that boards arrive at the destination in the same condition as when they left our facility, regardless of transit handling conditions.
