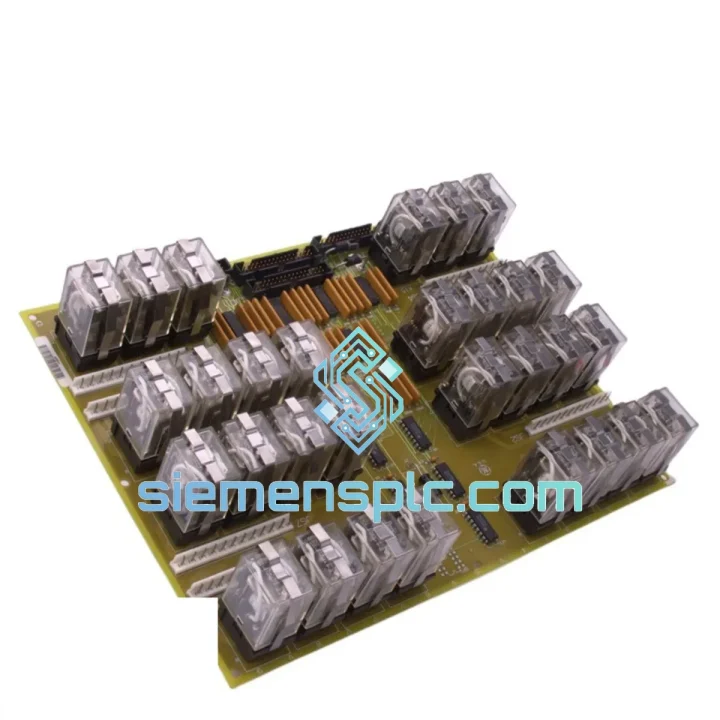

GE DS200TCQFG1ACC Turbine Control PC Board – Mark VI

GE DS200TCQFG1ACC – Signal Conditioning Interface Board in the Mark VI Turbine Control Architecture

The DS200TCQFG1ACC is a printed circuit board within General Electric’s Mark VI Speedtronic turbine control platform, serving as a dedicated signal conditioning and I/O interface module in the distributed control rack. Its function is not peripheral — it sits directly in the signal path between field instrumentation and the Mark VI’s core processor, handling analog and discrete I/O conditioning that feeds turbine protection, speed governing, and sequencing logic. Any degradation in this board’s signal fidelity translates directly into measurement error at the control layer, with consequences ranging from nuisance trips to undetected fault masking in redundant configurations.

The Mark VI platform was designed for continuous, unattended operation in environments characterized by high ambient temperature, vibration, and electromagnetic interference — conditions typical of gas turbine enclosures, combined-cycle balance-of-plant areas, and offshore platform control rooms. The DS200TCQFG1ACC reflects this design intent through its board-level architecture: conformal coating on the PCB substrate, high-reliability passive components rated for extended temperature ranges, and connector systems designed to maintain contact integrity through thermal cycling. These are not marketing claims — they are observable design features consistent with GE’s Mark VI hardware design standards.

For procurement engineers and maintenance planners managing aging Mark VI fleets, the DS200TCQFG1ACC represents a recurring MRO requirement. GE’s OEM supply chain for legacy Mark VI boards operates on extended lead times — often 16 to 26 weeks for new manufacture — making third-party specialist suppliers the practical source for unplanned outage recovery and scheduled maintenance stock. siemensplc.com maintains verified inventory of this board and can support both emergency dispatch and planned procurement programs.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Signal Path Architecture: The TCQF board family in the Mark VI system functions as the electrical interface between field wiring terminations and the I/O processor. Field signals — thermocouples, RTDs, 4–20 mA transmitters, contact inputs, and relay outputs — arrive at the terminal board and pass through the TCQF conditioning stage before being digitized and placed on the Mark VI I/O bus. The DS200TCQFG1ACC handles this conditioning function, which includes input filtering, signal scaling, and channel isolation. The G1ACC hardware revision incorporates component-level updates relative to earlier TCQF revisions, typically addressing long-term reliability of analog front-end components under sustained thermal load.

Optical Isolation on Discrete Channels: Discrete input and output channels on the TCQF board use optocoupler-based isolation to break ground loops between field devices and the control system’s logic ground. This is a critical design feature in turbine environments where field wiring runs alongside high-voltage power cables, generating common-mode noise that would otherwise corrupt digital state readings. The optocoupler barrier provides a minimum of 1,500 V isolation between field and logic sides, consistent with IEC 61131-2 requirements for industrial I/O modules.

EMC Design Considerations: The Mark VI I/O rack environment is inherently noisy — switching power supplies, relay coils, and high-frequency processor clocks all generate conducted and radiated interference. The DS200TCQFG1ACC’s PCB layout follows GE’s standard practice of separating analog and digital ground planes, using guard traces around high-impedance analog inputs, and placing decoupling capacitors at each IC power pin. Conformal coating on the PCB surface provides additional protection against condensation-induced leakage currents that could alter analog channel impedance and introduce measurement offset.

Backplane Interconnect Integrity: The board connects to the Mark VI I/O rack backplane via a multi-pin edge connector. Contact reliability over the board’s service life depends on the plating material and contact normal force. GE specifies gold-plated contacts on Mark VI backplane connectors to resist oxidation in humid environments. When replacing a DS200TCQFG1ACC, inspection of the backplane connector for fretting corrosion — a common failure mode in boards subject to vibration — is recommended before re-seating the replacement board.

Revision Compatibility: The ACC suffix in the part number denotes a specific assembly revision. Cross-revision substitution (e.g., using a G1AAA in place of a G1ACC) requires engineering review, as component changes between revisions may affect analog channel gain, filter corner frequency, or discrete I/O threshold voltage. siemensplc.com’s technical team can assist with revision compatibility assessment when the site’s Mark VI configuration drawings are available.

System Integration Benefits

• Deterministic I/O scan cycle: The TCQF board’s conditioning stage delivers consistent signal latency to the Mark VI I/O processor, supporting the platform’s deterministic scan cycle — typically 10 ms for protection-class I/O — without introducing variable delay that would degrade control loop phase margin.
• Transparent channel diagnostics: The Mark VI system continuously monitors I/O channel health through the TCQF board’s diagnostic outputs. Open-circuit field wiring, out-of-range sensor signals, and power supply deviations are detected and annunciated at the HMI without requiring manual channel polling, reducing diagnostic time during fault investigation.
• Hot-swap compatibility in redundant configurations: In Mark VI TMR (Triple Modular Redundant) installations, I/O boards can be replaced under power without interrupting the control loop, provided the replacement board is correctly configured and the redundancy manager arbitrates the channel transition. This eliminates the need for a controlled turbine shutdown solely to replace a degraded I/O board.
• Reduced sensor wiring interference: The board’s input filtering and optical isolation reduce the impact of field-side electromagnetic interference on measured values, lowering the incidence of spurious alarms caused by noise pickup on long thermocouple or 4–20 mA runs — a common source of nuisance trips in large turbine installations.
• Compatibility with ToolboxST configuration: The DS200TCQFG1ACC is fully recognized by GE’s ToolboxST engineering workstation software, allowing channel configuration, calibration, and diagnostic data retrieval without hardware modification or custom driver development.
• Extended service life in legacy fleets: Mark VI systems installed in the late 1990s and 2000s remain in active service at hundreds of sites. The DS200TCQFG1ACC’s availability as a verified spare extends the operational life of these installations without requiring a full control system upgrade, deferring capital expenditure while maintaining system reliability.
• Consistent analog accuracy over temperature: The board’s analog front-end components are selected for low temperature coefficient of gain and offset, maintaining measurement accuracy across the full operating temperature range of the control cabinet. This is particularly relevant in outdoor or semi-outdoor installations where cabinet ambient temperature varies seasonally.
• Simplified spare parts management: A single DS200TCQFG1ACC board covers multiple I/O channel types within its functional scope, reducing the number of distinct spare part numbers that a plant’s maintenance inventory must carry for Mark VI I/O coverage.

Quality Assurance & Global Logistics

Genuine GE Hardware: Every DS200TCQFG1ACC unit offered by siemensplc.com is sourced from traceable supply channels — decommissioned plant inventories, authorized surplus distributors, and long-term industrial partners with documented asset histories. Each board undergoes incoming visual inspection covering PCB surface condition, connector pin integrity, component seating, and label authenticity before entering our available inventory. Units showing evidence of unauthorized repair, counterfeit markings, or physical damage are rejected and not offered for sale.

Functional Verification: Where GE-compatible test fixtures are available, boards are powered and exercised to verify I/O channel response, power rail stability, and communication bus participation. Test records are retained and available to customers upon request for regulated procurement processes.

ESD-Safe Handling and Packaging: All PCBs are handled exclusively in ESD-controlled environments. Boards are shipped in anti-static shielding bags, cushioned with conductive foam, and packed in double-wall corrugated cartons rated for international air freight. This packaging standard is maintained regardless of shipment destination or urgency level.

Logistics from Xiamen, China: siemensplc.com operates from Xiamen — a designated free-trade port city on China’s southeastern coast with direct access to Xiamen Gaoqi International Airport and Xiamen Port, one of China’s top-ten container ports by throughput volume. This geographic position enables same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express for urgent shipments, with transit times of 2–5 business days to most destinations in Europe, the Middle East, Southeast Asia, and North America. For non-urgent orders, sea freight consolidation from Xiamen Port provides a cost-effective option for bulk spare parts procurement.

Export Documentation: All international shipments include a commercial invoice, packing list, and certificate of origin compliant with Xiamen Customs requirements. HS code classification for electronic control boards (typically 8537.10 or 8543.70 depending on destination country requirements) is applied accurately to avoid customs clearance delays. Additional documentation — including material safety data sheets, certificates of conformance, and inspection reports — is available upon request.

Payment and Commercial Terms: siemensplc.com supports T/T (telegraphic transfer), PayPal, Western Union, and major trade finance instruments. Multi-currency invoicing is available in USD, EUR, and CNY. Pro-forma invoices are issued within 24 hours of order confirmation.

12-Month Warranty: All DS200TCQFG1ACC units are covered by a 12-month warranty from the date of shipment. Warranty claims covering verified manufacturing or functional defects are resolved by replacement or credit at siemensplc.com’s discretion. Warranty does not cover damage resulting from incorrect installation, incompatible system configuration, or physical mishandling after delivery.
