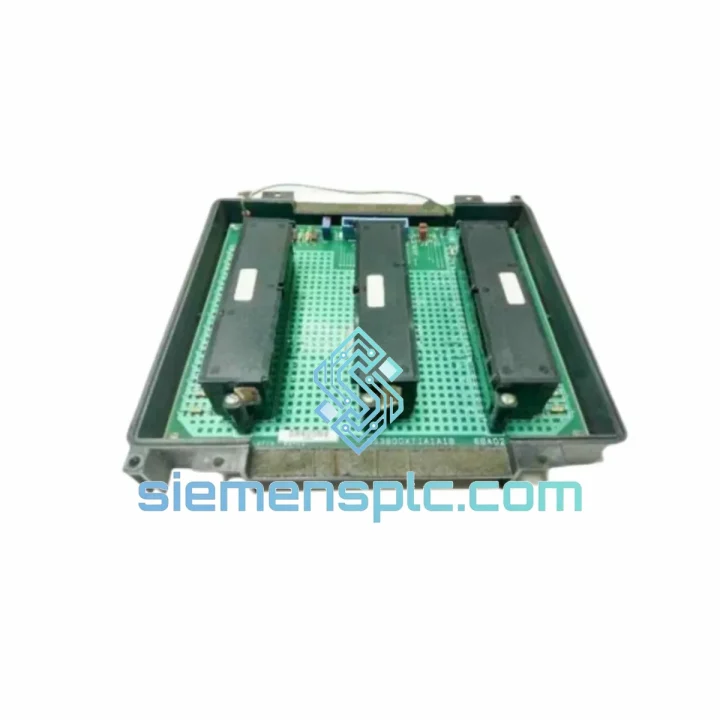

GE DS3800XTIA1A1B Turbine Control Card – Mark VI Speedtronic

GE DS3800XTIA1A1B — Turbine I/O Control Card for Mark VI Speedtronic Systems

The DS3800XTIA1A1B occupies a deterministic position within the GE Mark VI Speedtronic turbine control architecture: it serves as the primary interface between field-level transducers, actuators, and the VME-based controller backplane. Unlike generic industrial I/O cards, this module is engineered to the specific signal conditioning, timing, and fault-tolerance requirements of continuous-duty gas turbine operation. Its role is not peripheral — without a functioning DS3800XTIA1A1B, the Mark VI controller loses the ability to acquire and validate the analog and discrete signals that govern fuel control, compressor surge protection, and exhaust temperature management.

In a Mark VI panel, the card occupies a dedicated VME slot and communicates with the VCMI (VME Communications Module Interface) via the IONet ARCNET-based deterministic network. Scan cycle latency is bounded at the hardware level, ensuring that turbine protection logic — including overspeed trip and flame detection — receives signal updates within the controller’s defined execution period, typically 10 ms for protection-class functions and 40 ms for supervisory loops.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DS3800XTIA1A1B’s signal chain begins at the terminal board interface, where field wiring lands on the associated IS200-series terminal board (e.g., IS200TBAIH1C). Signals are routed via a ribbon or direct-mate connector to the I/O card’s front-end conditioning stage. On the analog side, each input channel passes through a differential amplifier with programmable gain, followed by a 12-bit successive-approximation ADC. The ADC sampling is synchronized to the controller’s scan clock via a hardware interrupt line on the VME P2 connector, eliminating jitter-induced measurement error that would otherwise corrupt thermocouple cold-junction compensation calculations.

Discrete input channels use optocoupler isolation with a forward voltage threshold of approximately 3.5 V, providing immunity to contact bounce and low-level ground noise common in turbine switchgear environments. The output side employs relay-contact or solid-state driver circuits depending on the channel assignment, with each output protected by a transient voltage suppressor (TVS) diode rated for inductive load switching — a necessary design feature given the solenoid valve and relay coil loads typical in fuel control and inlet guide vane circuits.

EMC hardening is implemented at three levels: (1) the PCB ground plane is segmented to isolate analog return from digital return, preventing ADC noise floor degradation from FPGA switching transients; (2) all I/O signal traces are routed with controlled impedance and guarded by ground traces on adjacent layers; (3) the card’s front panel provides a chassis-bonded shield connection, ensuring the module contributes to the panel’s overall Faraday cage integrity. This three-layer approach allows the DS3800XTIA1A1B to maintain signal accuracy in environments with conducted emissions from variable-frequency drives and high-current bus bars operating in close proximity.

The ARCNET IONet interface on the card operates at 2.5 Mbit/s with a deterministic token-passing protocol. Unlike Ethernet-based fieldbus alternatives, ARCNET guarantees a bounded worst-case latency regardless of network load — a non-negotiable requirement for turbine protection functions where a missed scan cycle could delay an overspeed trip signal beyond the mechanical response window of the trip solenoid valve.

System Integration Benefits

• Deterministic scan-cycle compliance: Hardware-synchronized ADC sampling ensures analog data arrives at the VCMI controller within the defined 10 ms protection-class execution window, maintaining turbine trip logic integrity without software-level timing compensation.
• Zero-reconfiguration hot-swap compatibility: In most Mark VI panel revisions, the controller stores I/O configuration in non-volatile memory on the VCMI, not on the I/O card itself. A DS3800XTIA1A1B replacement requires only a system restart and I/O verification scan — no firmware re-flashing or parameter re-entry.
• Opto-isolated discrete channels eliminate ground loop faults: Field-side and controller-side grounds are galvanically separated, preventing ground potential differences in large turbine halls (which can reach several volts) from inducing false discrete state changes in protection circuits.
• Analog accuracy preservation under thermal stress: The on-board ADC reference voltage circuit includes temperature-compensated precision resistors, maintaining ±0.1% full-scale accuracy across the 0–60°C operating range without field calibration intervention.
• Diagnostic transparency via IONet status registers: The card exposes hardware fault flags — including ADC overrange, power supply rail deviation, and communication timeout — directly to the Mark VI HMI diagnostic display, enabling maintenance personnel to isolate faults to the card level without oscilloscope-level troubleshooting.
• Backward signal compatibility with Mark V terminal boards: The DS3800XTIA series maintains signal-level compatibility with select late-revision Mark V terminal board assemblies, reducing the scope of hardware changes required during partial panel upgrades.
• Reduced spare-parts inventory complexity: The card’s multi-function I/O architecture — handling both analog and discrete signals on a single module — reduces the number of distinct spare card types a plant must stock compared to single-function I/O architectures.
• IEC 61511 loop architecture compatibility: When integrated into a properly designed safety instrumented system, the card’s isolated I/O channels and hardware fault detection support the diagnostic coverage requirements for SIL 1 and SIL 2 loop qualification at the system level.

Quality Assurance & Global Logistics

Every DS3800XTIA1A1B unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Visual inspection confirms PCB integrity — no lifted components, cracked solder joints, or corrosion on the VME connector pins. A powered functional test applies the correct VME supply voltages and verifies that the card initializes correctly, with all status LEDs responding per the GE Mark VI hardware reference manual. Analog channel linearity is spot-checked against a calibrated signal source, and discrete I/O channels are exercised through their full on/off cycle.

Units are packed in anti-static bags with humidity indicator cards, placed in foam-lined cartons rated for international air freight handling. For shipments to power plants and industrial facilities with strict incoming inspection requirements, we provide a pre-shipment documentation package including high-resolution photographs of the specific unit, a functional test report, and a sourcing declaration.

Logistics from Xiamen covers all major industrial markets: DHL Express and FedEx International Priority typically deliver to Europe and North America within 3–5 business days; Southeast Asia and Middle East destinations within 2–4 business days. For project-critical shipments, we coordinate with customer-nominated freight forwarders and can provide export documentation including commercial invoice, packing list, certificate of origin, and ECCN/EAR99 classification records.

All units carry a 12-month warranty against defects in materials and workmanship, with advance exchange available to minimize plant downtime during warranty claims.
