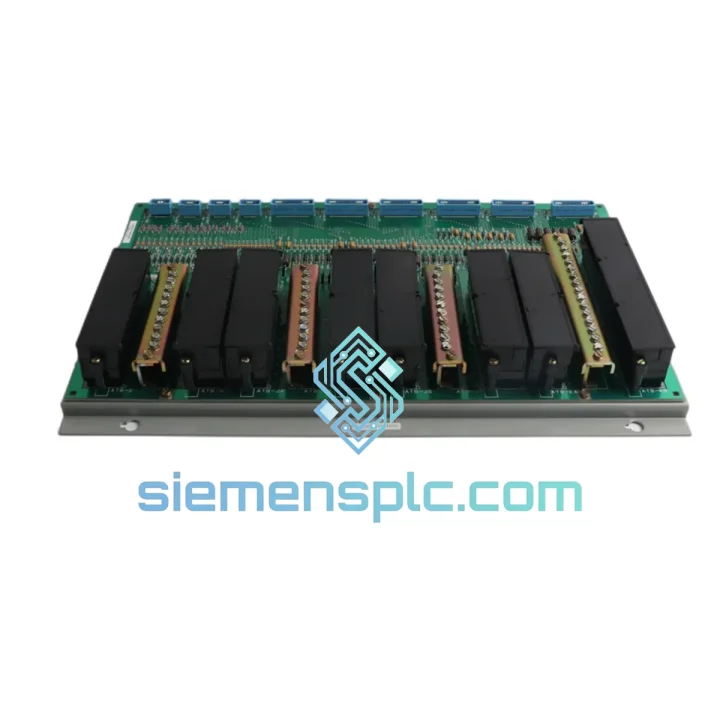

GE DS3820AIQA1A1A Analog I/O Module

GE DS3820AIQA1A1A Analog I/O Module: Stop the Bleed — Every Minute of Turbine Downtime Costs You

Your Mark VI turbine control system is down. The plant manager is on the phone. Maintenance is standing by. You need one thing: a verified, bench-tested GE DS3820AIQA1A1A Analog I/O Module on a truck to your site — today. That is exactly what we do. We stock this board specifically because it fails at the worst possible time, and we have built our entire logistics chain around getting it to you before your next shift starts.

The DS3820AIQA1A1A is a multi-channel analog input/output PCB module native to the GE Mark VI Speedtronic Turbine Control platform. It handles the precision signal conditioning that sits between your field instruments — thermocouples, RTDs, pressure transmitters — and the core control logic. When this board fails, your turbine goes into protective shutdown. There is no workaround. You replace the card or you stay down.

We have shipped this exact part to power plants across Southeast Asia, the Middle East, and Europe. Our Xiamen warehouse carries buffer stock precisely for emergency callouts. Place your order before 18:00 CST and we initiate same-day DHL or FedEx dispatch.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field callouts on Mark VI systems, these are the failure patterns and swap pitfalls that catch engineers off guard:

Common Failure Signatures for DS3820AIQA1A1A:

• Diagnostic Code L3DIAG_AIQA / IOPACK_FAULT: The most frequent alarm. Indicates the I/O pack has lost communication with the DS3820AIQA1A1A board. Before condemning the card, check the ribbon cable seating and the I/O pack power rail voltage — a sagging 24 VDC bus mimics a dead board.
• Analog channel drift / frozen value: One or more AI channels report a fixed value regardless of field input. This is almost always the DS3820AIQA1A1A’s onboard ADC section failing under thermal stress. Confirm by swapping the suspect channel’s field wiring to a known-good channel — if the fault follows the wiring, it is a field instrument issue; if it stays on the original channel, the board is the culprit.
• Intermittent IOPACK_COMM fault on hot days: The DS3820 series is sensitive to connector oxidation in high-humidity coastal plants. Clean the edge connector with IPA before inserting the replacement board.

Replacement Procedure — Key Steps:

• 1. Confirm firmware revision compatibility. The Mark VI controller firmware version must match the I/O pack firmware. Check the ToolboxST application under Device → I/O Pack Properties before ordering. Mismatched firmware causes the pack to reject the new board at initialization.
• 2. Power down the I/O pack, not the entire controller. The Mark VI supports hot-swap at the I/O pack level on most configurations. Verify your specific cabinet wiring before assuming hot-swap is safe — some plants have non-standard interlocks.
• 3. No DIP switch or address configuration required. The DS3820AIQA1A1A uses automatic self-addressing via the I/O pack backplane. Do not attempt to manually set addresses — there are no user-configurable jumpers on this board.
• 4. Force a ToolboxST download after insertion. Even if the system auto-detects the new card, perform a forced configuration download from ToolboxST to flush any cached fault states in the controller’s I/O map.
• 5. Verify analog channel calibration offsets. After replacement, spot-check at least two AI channels against a calibrated reference signal. Some refurbished boards may carry residual calibration offsets from their previous installation — a 4 mA zero-point check takes two minutes and prevents a phantom process alarm on startup.

Reliability in Harsh Conditions

The DS3820AIQA1A1A was designed for the inside of a gas turbine control enclosure — not an air-conditioned server room. GE engineered the Mark VI I/O boards to operate continuously in environments that would destroy consumer-grade electronics within weeks.

The board’s PCB substrate uses a high-Tg laminate rated for sustained thermal cycling between cold startup and full-load operating temperatures. Conformal coating on the component side provides a barrier against condensation and airborne contaminants — a critical feature in coastal LNG terminals and offshore platforms where salt-laden air infiltrates even sealed cabinets over time.

Vibration tolerance is built into the card’s mechanical design: the edge connector uses a high-retention contact system, and critical passive components are wave-soldered with additional mechanical anchoring to prevent solder joint fatigue under the low-frequency vibration spectrum typical of large rotating machinery. Plants running Frame 7 and Frame 9 gas turbines — where the control enclosure sits within 10 meters of the turbine casing — have run DS3820-series boards for 15+ years without board-level failures attributable to vibration.

Every unit we ship from Xiamen has been stored in climate-controlled conditions with desiccant packaging. Boards that have been on a shelf for more than 12 months are re-inspected and powered up for a 4-hour burn-in before dispatch. We do not ship boards that have been sitting in uncontrolled warehouse conditions — that is how you end up with a latent failure two weeks after installation.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. The board is physically in our warehouse, inspected, and ready to pack the moment your order is confirmed.

• DHL Express Worldwide: Xiamen to Singapore in 24–36 hours. Xiamen to Dubai in 36–48 hours. Xiamen to Rotterdam or Houston in 48–72 hours. These are real transit times based on our actual shipment history — not carrier marketing estimates.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. We select the carrier based on your destination and urgency — just tell us your deadline.
• Documentation package included: Commercial invoice, packing list, certificate of inspection, and HS Code 8537.10 declaration ship with every order. If your plant requires an end-user certificate or specific Incoterms (DAP, DDP, EXW), advise us at order placement.
• Customs clearance support: We have cleared shipments into India, Indonesia, Saudi Arabia, Germany, and the United States. We know which documents each customs authority requires and we prepare them correctly the first time — delays at customs are almost always a paperwork problem, not a regulatory one.
• Order cutoff: 18:00 CST for same-day dispatch on in-stock units. Orders placed after cutoff ship the following business morning.
