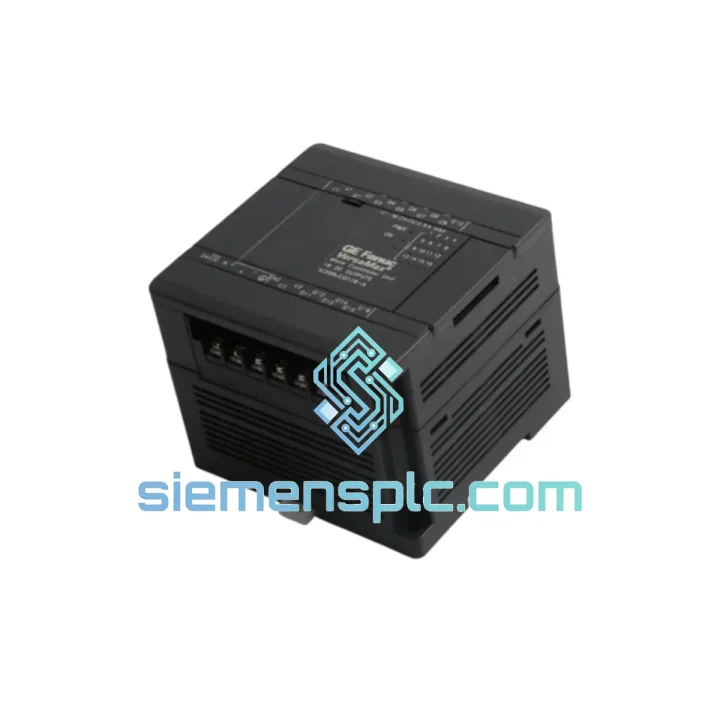

GE Fanuc IC200UEO116-A PLC Output Module – VersaMax Micro

GE Fanuc IC200UEO116-A — 16-Point Transistor Output Expansion Module for VersaMax Micro PLC Systems

The IC200UEO116-A is a 16-channel sourcing (PNP) transistor discrete output expansion module engineered for the GE Fanuc VersaMax Micro PLC platform. Operating at 24 VDC with a per-point current rating of 0.5 A, this module extends the digital output capacity of any VersaMax Micro base unit through the proprietary expansion bus without requiring an external power supply for the module backplane. Its solid-state output architecture eliminates mechanical contact wear, making it the preferred choice for high-cycle-rate machine control applications where output switching frequency exceeds the practical limits of relay-based alternatives.

In a typical control loop, the IC200UEO116-A sits between the CPU’s scan cycle and the field device layer. The CPU writes output image data to the expansion bus on each scan; the module latches those states and drives the corresponding transistor outputs within the same scan period. This deterministic output latency — bounded by the expansion bus cycle time rather than any asynchronous communication overhead — is essential in applications such as servo-axis enable sequencing, conveyor diverter timing, and solenoid valve actuation where output jitter directly affects process quality.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC200UEO116-A implements a two-stage output drive architecture. The first stage is a logic-level latch array clocked by the expansion bus controller; the second stage is a bank of discrete PNP power transistors, each with an integrated flyback suppression diode to clamp inductive load transients generated by solenoid coils and motor contactors. This on-chip suppression eliminates the need for external freewheeling diodes on inductive loads rated within the module’s current envelope, reducing field wiring component count and potential failure points.

From an EMC standpoint, the module’s PCB layout routes high-current output traces on the component side with a dedicated ground plane on the solder side, minimizing loop area and radiated emissions. The expansion bus interface uses differential signaling with common-mode chokes at the connector, providing immunity to conducted interference on the backplane cable — a critical design consideration in environments with variable-frequency drives (VFDs) and large motor starters operating in close proximity to the control panel.

The output groups share a common field power bus internally segmented into two 8-point banks, each with an independent overcurrent detection circuit. When a short-circuit condition is detected on any point within a bank, the protection circuit limits current to a safe level and sets a diagnostic flag in the module status register, which the CPU can read via the expansion bus without halting the scan cycle. This non-latching protection behavior allows the CPU program to implement supervised restart logic — for example, de-energizing the faulted output, waiting a configurable dwell time, and re-energizing to verify fault clearance — without requiring a manual panel reset.

The transistor output switching time (ON and OFF) is specified at less than 1 ms under resistive load, which supports output update rates well within the 10 ms scan cycles typical of VersaMax Micro applications. For inductive loads, the actual field device response time is dominated by the load’s L/R time constant rather than the module’s switching speed, so the module does not introduce measurable latency in solenoid or contactor actuation sequences.

System Integration Benefits

• Deterministic scan-synchronous output update: Output states are written to the field transistors within the same CPU scan cycle in which the output image is updated, eliminating asynchronous communication delays that degrade timing accuracy in coordinated multi-axis or multi-valve sequences.
• Zero-slot expansion architecture: The module connects directly to the VersaMax Micro base unit’s right-side expansion port without consuming a rack slot, preserving panel real estate and reducing overall system depth.
• Integrated diagnostic transparency: Per-group overcurrent status bits are mapped into the CPU’s I/O status table, enabling the application program to implement fault logging, alarm annunciation, and supervised restart without any additional diagnostic hardware.
• Solid-state output longevity: Transistor outputs have no mechanical wear mechanism. In applications with 10 million output switching cycles per year — common in packaging and labeling — the IC200UEO116-A eliminates the relay replacement intervals that would otherwise require scheduled downtime.
• Inductive load protection without external components: Integrated flyback diodes on each output channel protect the transistors from back-EMF spikes up to the module’s rated clamp voltage, removing the need for external suppression components on solenoid and contactor loads within the rated current range.
• Consistent field wiring interface: The removable screw-clamp terminal block accepts conductors from 0.5 mm² to 2.5 mm², compatible with standard 24 VDC field wiring practices. The terminal block can be removed for module replacement without disturbing field wiring, reducing maintenance time.
• Backward-compatible hardware revision: The -A suffix designates a component-level revision with no change to the electrical interface, terminal pinout, or firmware behavior. IC200UEO116-A is a direct drop-in replacement for IC200UEO116 with no modification to the application program or wiring drawings.
• Scalable I/O expansion: Up to four expansion modules can be chained to a single VersaMax Micro CPU (subject to power budget), allowing the output count to scale from the base unit’s onboard I/O up to 64 additional discrete outputs without changing the CPU or communication infrastructure.
• Wide operating temperature range: The 0 °C to +55 °C operating range covers the majority of industrial panel environments, including unheated enclosures in temperate climates and air-conditioned control rooms in tropical regions.
• Compact DIN-rail footprint: The module’s narrow profile allows dense I/O packing on standard 35 mm DIN rail, a practical advantage in retrofit projects where existing panel space is constrained.

Quality Assurance & Global Logistics

Every IC200UEO116-A unit dispatched from our Xiamen, China facility is sourced as genuine GE Fanuc original hardware. Prior to shipment, each module undergoes a structured inspection protocol: visual examination of the housing, connector pins, and label integrity; power-on functional verification of output switching across all 16 channels; and continuity verification of the expansion bus interface. Units that do not pass all inspection criteria are quarantined and not offered for sale.

Traceability documentation — including supplier chain records and inspection reports — is retained for each batch and available on request for customers with quality management system requirements (ISO 9001, IATF 16949, etc.).

From Xiamen, we ship globally via DHL Express, FedEx International Priority, and UCP air freight consolidation, with typical transit times of 3–7 business days to North America and Europe, and 2–5 business days to Southeast Asia. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) — is prepared for every international shipment. DDP (Delivered Duty Paid) terms are available for select destinations; contact us to confirm eligibility for your country.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed by advance replacement where stock permits, minimizing production downtime for our customers.
