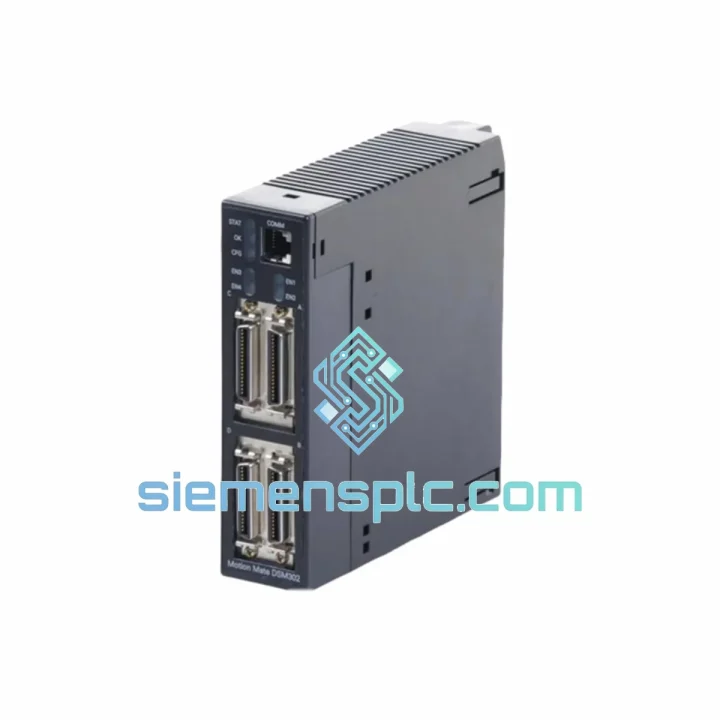

GE Fanuc IC693DSM302 Motion Control Module – Series 90-30

IC693DSM302 — Dual-Axis Servo Motion Controller in the Series 90-30 Control Architecture

The GE Fanuc IC693DSM302 is a dedicated two-axis Digital Servo Module (DSM) engineered for closed-loop motion control within the Series 90-30 programmable controller platform. Unlike general-purpose I/O modules, the IC693DSM302 operates as an autonomous motion co-processor: it executes trajectory calculations, encoder feedback processing, and velocity/torque command generation independently of the host CPU scan cycle. This architectural separation ensures that axis positioning tasks are not subject to PLC ladder-scan jitter, a critical requirement in applications where position repeatability must be held within ±1 encoder count across consecutive cycles.

The module occupies a single slot in any Series 90-30 5- or 10-slot rack and communicates with the host CPU via the Series 90-30 backplane bus at a fixed 8 MHz data rate. Command data — target position, velocity setpoint, acceleration ramp — is written to the module’s dual-port RAM by the CPU during each scan, while the DSM’s onboard motion processor executes the interpolation loop at its own 1 ms servo update rate. This decoupled architecture allows the host CPU to maintain its standard I/O scan without being burdened by real-time servo computation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC693DSM302 is built around a dedicated motion co-processor — separate from the Series 90-30 CPU — that runs a closed-loop PID position/velocity algorithm at a fixed 1 ms interrupt rate. This is not a software-polled loop; the servo interrupt is hardware-timed, meaning axis update latency is deterministic and immune to CPU scan overruns or communication bus arbitration delays.

Encoder Interface Architecture: Each axis encoder port accepts differential RS-422 quadrature signals (A, B, Z). The hardware quadrature decoder multiplies the raw encoder frequency by four (×4 decode), yielding an effective count resolution four times the encoder line count. A 32-bit up/down counter accumulates position data, providing a theoretical travel range of over ±2.1 billion counts before rollover — sufficient for any practical linear or rotary axis without software position-extension workarounds.

Analog Output Stage: The ±10 VDC velocity/torque command is generated by a 12-bit DAC per axis, giving a command resolution of approximately 4.88 mV per LSB. The output is buffered through an operational amplifier stage with low output impedance, ensuring stable drive into the high-impedance analog input of any standard servo amplifier. The DAC update is synchronized to the 1 ms servo interrupt, so command latency from position error computation to analog output update is bounded within a single servo cycle.

EMC Design: The module’s PCB employs ground-plane partitioning between the digital logic section and the analog output section to minimize switching noise coupling into the DAC output. Encoder input lines are terminated with 120 Ω differential resistors at the receiver to suppress reflections on long cable runs. The backplane connector pins are arranged to interleave signal and ground returns, reducing common-mode noise injection from the rack power bus.

Dual-Port RAM Interface: Communication between the Series 90-30 CPU and the DSM motion processor uses a shared dual-port SRAM block. The CPU writes command data (target position, velocity limit, acceleration rate) into one memory partition while the DSM reads from it asynchronously. A hardware semaphore prevents simultaneous read/write collisions without requiring software handshaking, keeping CPU overhead for motion command updates to a minimum — typically less than 0.5 ms of CPU scan time per axis per cycle.

System Integration Benefits

• Scan-Independent Servo Timing: The 1 ms hardware servo interrupt runs regardless of CPU scan load, eliminating position error accumulation caused by variable scan-cycle jitter in high-I/O-count systems.
• Zero Additional Interface Hardware: The module plugs directly into any Series 90-30 5- or 10-slot rack. No external motion controller, gateway, or fieldbus adapter is required, reducing panel wiring complexity and potential failure points.
• Simultaneous Dual-Axis Coordination: Both axes share a common time base from the onboard motion processor, enabling synchronized multi-axis moves — such as coordinated X-Y table positioning — without requiring external synchronization signals.
• Broad Drive Compatibility: The ±10 VDC analog command output is the industry-standard interface for servo amplifiers from Fanuc, Yaskawa, Siemens, Bosch Rexroth, and Allen-Bradley, allowing the IC693DSM302 to be integrated into mixed-vendor drive environments without signal conditioning.
• Onboard Diagnostics via Backplane: The module reports axis fault status, following error magnitude, and encoder loss detection directly to the CPU’s %I reference table, enabling the PLC ladder program to implement fault-response logic without polling external hardware.
• 32-Bit Position Registers: The wide position counter eliminates the need for software position-extension routines on long-travel axes, reducing CPU program complexity and the risk of position-rollover faults in high-cycle applications.
• Electronic Gearing Mode: The IC693DSM302 supports a master-follower electronic gearing mode where one axis tracks the encoder feedback of a master axis at a programmable gear ratio. This eliminates mechanical gearboxes in registration and synchronization applications, reducing maintenance intervals and mechanical backlash.
• Proficy ME Programming Compatibility: The module is fully supported by GE Fanuc Proficy Machine Edition Logic Developer, including motion function blocks compliant with the IEC 61131-3 standard. Existing Series 90-30 programs can add motion control without migrating to a different PLC platform.

Quality Assurance & Global Logistics

Every IC693DSM302 unit offered through siemensplc.com is sourced as genuine GE Fanuc production hardware. Units undergo a structured pre-shipment inspection protocol covering visual PCB integrity, connector pin condition, label and date-code verification, and a powered functional check confirming backplane enumeration and analog output calibration within factory tolerance.

All shipments originate from our warehouse in Xiamen, China — a major export hub with direct access to international express freight networks. Standard dispatch is within 1–3 business days for in-stock units. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment to facilitate smooth customs clearance in the destination country. Freight options include DHL Express, FedEx International Priority, and UPS Worldwide Expedited. For bulk orders, sea freight consolidation is available with full container load (FCL) and less-than-container load (LCL) options.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit.
