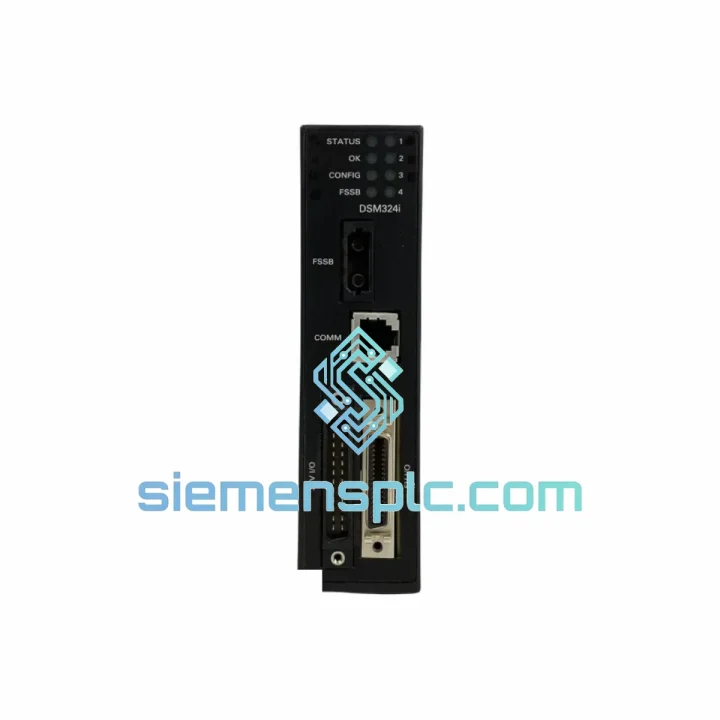

GE Fanuc IC693DSM324-BE Motion Controller Module

IC693DSM324-BE Down? Every Minute of Downtime Costs You Money — We Ship Same Day

Your Series 90-30 line is stopped. The DSM324-BE motion controller has faulted, and your servo axes are locked out. Production is bleeding cash at whatever your hourly downtime rate is — and that number is almost certainly higher than the cost of this module. We stock the GE Fanuc IC693DSM324-BE in Xiamen, verified, bench-tested, and ready to clear customs today. No lead-time games, no “check back in 8 weeks.” You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to a failed IC693DSM324-BE:

• Fault Code 0x0041 / Module Not Responding: The CPU loses backplane communication with the DSM slot. First rule out a loose module seating — reseat firmly and power-cycle. If the fault persists across two power cycles, the DSM324 logic board is the prime suspect.
• Axis Position Error Fault (Fault Code 0x0080–0x008F range): Encoder feedback is being received but the module cannot close the position loop. Check encoder cable shield continuity before condemning the module — a broken shield on a long encoder run mimics a dead DSM.
• Analog Output Stuck at 0 V or Rail Voltage: Measure the ±10 VDC command output at the field connector with a DMM while commanding a slow jog. If the output is fixed regardless of command, the DAC section of the DSM324 has failed. Module replacement is the only fix.
• Proficy Machine Edition Config Download Fails on DSM Slot: Usually a firmware mismatch. Confirm the -BE hardware revision on the replacement module matches the revision expected by your .mep project file. Mismatched revisions will reject the configuration block.

Step-by-step hot-swap replacement procedure:

1. Document current axis parameters: Before pulling the failed module, upload the full project from the CPU using Proficy Machine Edition and save the .mep file. The DSM324 stores motion parameters in the CPU’s configuration memory, not on the module itself — but verify this is current before proceeding.
2. De-energize servo drives: Disable the servo amplifier enable signals (hardware interlock, not just software). The ±10 VDC analog output will go to 0 V when the module is removed, but a drive in fault-hold state may respond unexpectedly on re-enable.
3. Power down the rack: The Series 90-30 backplane does not support hot-swap on special function modules. Full rack power-down is required. Do not attempt to pull the DSM324 under power — you risk corrupting the CPU’s I/O table.
4. Seat the replacement IC693DSM324-BE: Align the module with the backplane connector and press firmly until the locking tabs click. A partially seated module will generate intermittent faults that are extremely difficult to diagnose.
5. Verify firmware revision label: Confirm the -BE suffix on the replacement module’s label matches your original. If you are unsure, check the GE Fanuc hardware compatibility matrix for your CPU firmware version.
6. Power up and download configuration: Power the rack, wait for the CPU to reach RUN mode, then download the saved .mep project. The DSM324 will initialize its axis configuration from the CPU’s configuration memory on the first scan cycle.
7. Perform a slow-speed jog test on each axis: Before releasing the machine to production, jog each axis at 10% speed in both directions and verify encoder counts increment correctly in the motion status words. Check for following error accumulation at low speed — this catches wiring issues before they become high-speed crashes.
8. Re-establish home position: The DSM324 does not retain absolute position across power cycles unless an absolute encoder system is in use. Execute your homing sequence on all axes before resuming automatic operation.

Configuration notes specific to the -BE revision: The -BE hardware revision introduced updated FPGA logic for improved encoder noise immunity. If you are replacing an earlier revision (e.g., -AA, -BC), re-test your following error thresholds — the improved noise filtering may slightly alter the effective velocity feedback response at high encoder frequencies. Adjust the velocity feedforward gain in your motion configuration if you observe unexpected following error behavior after replacement.

Reliability in Harsh Conditions

The IC693DSM324-BE was designed for the factory floor, not a climate-controlled server room. GE Fanuc’s Series 90-30 platform was built to IEC 61131-2 environmental standards, and the DSM324 module meets those requirements without derating:

• Vibration: Rated to 1.0 g sinusoidal (10–57 Hz) and 0.5 g random vibration per IEC 68-2-6. The backplane connector system uses a positive-locking mechanism that maintains electrical continuity under continuous machine vibration — a known failure point on competing platforms that rely on friction-fit edge connectors.
• Thermal cycling: The module’s conformal-coated PCB handles the 0–60 °C operating range without delamination or solder joint fatigue across thousands of thermal cycles. Units sourced from decommissioned equipment are inspected for heat stress indicators (discolored components, lifted pads) before being offered for sale.
• Humidity and condensation: The conformal coating provides protection against moisture ingress in environments up to 95% RH non-condensing. For applications with condensation risk (e.g., cold-storage facilities, outdoor enclosures), we recommend additional panel-level sealing — the module itself is not rated for condensing environments.
• Electrical noise immunity: The -BE revision’s updated FPGA includes enhanced differential encoder input filtering, reducing susceptibility to common-mode noise on long encoder cable runs — a frequent source of nuisance faults in high-EMI environments such as welding cells and large VFD installations.
• ESD protection: All field connector pins include transient voltage suppression. Units are handled and shipped in anti-static packaging with humidity indicator cards to ensure the module arrives in the same condition it left our warehouse.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is exactly what happens after you place your order:

• Same-day dispatch cutoff: 16:00 CST. Orders confirmed with payment before 16:00 Xiamen time ship the same business day. Orders after cutoff ship the following morning.
• Packaging: The IC693DSM324-BE is wrapped in anti-static foam, placed in a rigid cardboard shell, and double-boxed for international transit. Fragile and ESD-sensitive labels are applied externally. We do not use bubble wrap alone for PLC modules — backplane connector pins are vulnerable to crush damage.
• DHL Express (preferred for urgent orders): Xiamen → major industrial hubs in Europe, North America, Southeast Asia, and the Middle East in 2–4 business days. DHL’s direct Xiamen gateway minimizes transit hub transfers, reducing handling damage risk.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. Typical transit: 3–5 business days from Xiamen.
• Customs documentation: We prepare a commercial invoice with accurate HS code classification (HS 8537.10 for PLC modules), country of origin declaration, and EEI filing where required. Accurate documentation prevents customs holds that would defeat the purpose of express shipping.
• Tracking: A tracking number is emailed within 2 hours of dispatch. For urgent orders, WhatsApp us the tracking number request and we will send it directly to your phone.
• Incoterms: Standard orders ship DAP (Delivered At Place). DDP (Delivered Duty Paid) available on request for customers who need a single all-inclusive landed cost — contact us before ordering to arrange.
