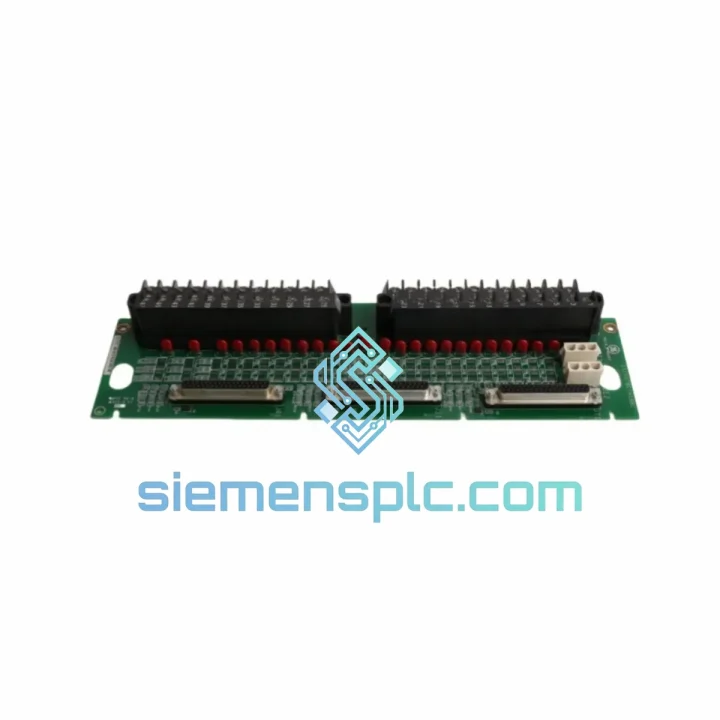

GE Fanuc IS200TBCIS2CCD PLC Processor Module

IS200TBCIS2CCD: Every Hour of Downtime Costs You — We Ship Today

Your Mark VI turbine control system is down. The IS200TBCIS2CCD processor board has failed, and your plant is bleeding money by the hour. OEM lead times stretch weeks. Distributor stock is uncertain. You need a verified, bench-tested replacement in your hands — not a promise on a purchase order.

We stock the GE Fanuc IS200TBCIS2CCD at our Xiamen warehouse. Same-day dispatch on confirmed orders. DHL and FedEx Express to your site, anywhere in the world. This is not a refurbished gamble — every unit passes a full power-on functional test against a Mark VI backplane simulator before it leaves our facility. If you are reading this at 2 AM during an emergency shutdown, send us a message now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work on Mark VI systems teaches you that most IS200TBCIS2CCD failures fall into three categories. Knowing which one you are dealing with before you pull the board saves you from replacing a good module.

Fault Code 0x0041 — Controller Heartbeat Loss: This is the most common alarm that points to the IS200TBCIS2CCD. Before condemning the board, check the IONET cable seating at both the controller chassis and the network switch. A loose RJ-45 on the IONET port generates identical symptoms. If the cable checks out and the fault persists across a controller reset via ToolboxST, the processor board is the culprit.

Fault Code 0x0083 — TMR Vote Mismatch: In a triple-redundant rack, this alarm means one of the three IS200TBCIS2CCD modules is producing outputs that disagree with the other two. The system will continue running on the two healthy modules, but you are now operating without full redundancy protection. Identify the faulted slot using the LED status indicators on the front panel — a solid amber LED on the FAULT indicator with no green HEALTHY LED confirms the bad board. Do not delay replacement; a second failure at this point causes a process trip.

Firmware Compatibility Check Before Swap: The IS200TBCIS2CCD must run the same firmware revision as its peer modules in a redundant configuration. Before installing the replacement, connect a laptop running ToolboxST and navigate to the controller properties to note the current firmware version. If the replacement board ships with a different firmware load, you will need to perform a firmware download via ToolboxST before inserting it into the live rack. Attempting to hot-insert a mismatched firmware version in TMR mode will trigger an immediate vote mismatch alarm and may cause a controlled shutdown.

Slot Address — No DIP Switch Required: The IS200TBCIS2CCD does not use external DIP switches for address configuration. The controller address is set in software via ToolboxST during commissioning and stored in non-volatile memory on the board. However, verify the backplane slot assignment matches the original board’s configured slot ID before powering up. A slot mismatch causes the controller to come up in a degraded state and refuse to join the redundancy group.

Hot-Swap Procedure (TMR Configuration):

1. Confirm the system is in TMR mode with two healthy controllers still voting — do not proceed if only one healthy module remains.
2. In ToolboxST, navigate to the faulted controller and select Force Offline to gracefully remove it from the voting group.
3. Wait for the HEALTHY LED on the faulted module to extinguish completely before extracting the board.
4. Insert the replacement IS200TBCIS2CCD into the same slot. The backplane will power the board automatically.
5. Monitor ToolboxST — the new board will perform a self-test sequence (approximately 45–90 seconds) and then synchronize with the peer controllers.
6. Confirm all three HEALTHY LEDs are green and the TMR VOTE indicator shows no mismatch before returning the system to normal operation.

Reliability in Harsh Conditions

The IS200TBCIS2CCD was designed for environments that would destroy consumer-grade electronics within weeks. GE Fanuc engineered this board for continuous operation inside turbine control enclosures where ambient temperatures regularly reach 55°C, vibration from rotating machinery is constant, and humidity swings are unpredictable.

The PCB uses conformal coating on all critical signal traces, providing a barrier against moisture ingress and conductive contamination — a common failure mode in coastal petrochemical plants and offshore platforms. The board-mounted connectors use gold-plated contacts rated for 500+ insertion cycles, which matters when you are doing quarterly maintenance inspections that require partial disassembly.

Vibration tolerance is validated to IEC 60068-2-6 standards, covering sinusoidal vibration profiles that match the operational signature of GE Frame 7 and Frame 9 gas turbines. The onboard oscillator and clock circuitry are temperature-compensated, maintaining timing accuracy across the full 0°C to +60°C operating range without drift that could cause inter-controller synchronization errors in TMR mode.

Every IS200TBCIS2CCD we ship has been stored in a climate-controlled environment with ESD protection from the moment it left its original installation. Boards that show any sign of corrosion, damaged traces, or compromised connector pins are rejected at incoming inspection — they do not reach our test bench, and they certainly do not reach your plant.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia, with direct DHL and FedEx flight connections to major industrial hubs across Europe, the Middle East, Southeast Asia, and the Americas. When you place an order before 14:00 CST, the IS200TBCIS2CCD ships the same day.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Indonesia): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–4 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 3–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 4–6 business days via DHL Express
• Australia and New Zealand: 2–4 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin — the documentation your customs broker needs to clear the shipment without delays. For customers in countries with import restrictions on electronic components, we can provide an HS code pre-classification letter on request. Air freight consolidation is available for multi-unit orders where cost efficiency matters more than speed.

Track your shipment in real time via the DHL or FedEx tracking number provided at dispatch. Our logistics team monitors all active shipments and will proactively contact you if a delay is detected at customs or at a transit hub.
