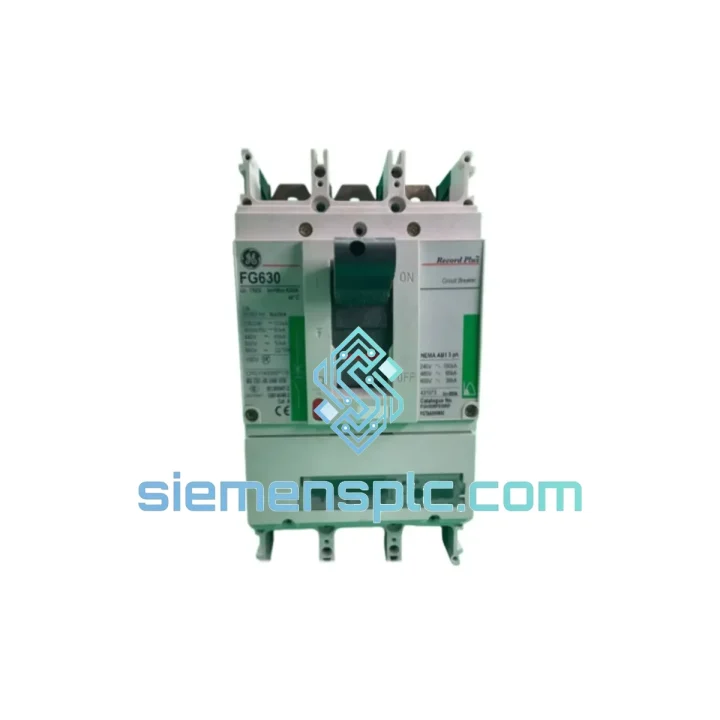

GE FGN36AA630NNF Molded Case Circuit Breaker – FGN Series

GE FGN36AA630NNF — 630A Three-Pole MCCB in Industrial Power Distribution Architecture

The GE FGN36AA630NNF is a 630-ampere, 600V AC, three-pole molded case circuit breaker (MCCB) from General Electric’s FGN Series. Within a power distribution system, this device occupies the feeder or sub-main protection tier — the layer between the main incoming supply and downstream branch circuits or motor control centers. Its thermal-magnetic trip mechanism provides two distinct and independent protection functions: a bimetallic thermal element that responds to sustained overcurrent conditions (typically 1.05× to 1.25× rated current over time), and a magnetic solenoid that delivers instantaneous trip response to short-circuit fault currents, typically engaging at 10× to 12× rated current within milliseconds. This dual-element architecture ensures that both slow-developing overloads and instantaneous bolted faults are interrupted before thermal damage propagates to cable insulation, motor windings, or transformer cores downstream.

In three-phase 480V or 600V distribution systems, the FGN36AA630NNF is commonly deployed as a feeder breaker in switchboards, motor control centers (MCCs), and main distribution panels (MDPs). Its 630A continuous current rating accommodates loads up to approximately 500 kW at 480V three-phase (at unity power factor), making it appropriate for large motor starters, transformer secondary protection, bus tie applications, and main disconnect service in qualifying installations. The FGN frame is a well-established platform in North American industrial electrical infrastructure, with a broad ecosystem of compatible accessories including shunt trips, undervoltage releases, auxiliary contacts, and rotary handle operators.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FGN36AA630NNF’s thermal-magnetic trip unit is a mechanically latched, stored-energy mechanism. Under normal load, the bimetallic strip deflects proportionally to I²R heating — a physical integration of current over time that inherently models cable and motor thermal capacity. When deflection reaches the calibrated threshold, it releases the latch mechanism, allowing the stored spring energy to drive the contacts apart at high velocity. This contact separation speed is critical: at 630A rated current, arcing energy during interruption is substantial, and the arc chute assembly — a stack of parallel metallic splitter plates — must subdivide and cool the arc rapidly to prevent re-strike.

The magnetic (instantaneous) element operates on a different physical principle. A solenoid plunger, biased by a calibrated spring, responds to the magnetic field generated by fault current. At short-circuit levels (typically 5,000–65,000 A depending on the system impedance), the solenoid overcomes the spring bias within one to two electrical half-cycles (8–16 ms at 60 Hz), tripping the mechanism before the first current peak can cause weld damage to downstream contactors or insulation failure in motor windings.

The molded case housing is constructed from glass-filled thermoset polyester, which provides dimensional stability under thermal cycling, resistance to tracking (surface arc propagation), and mechanical rigidity sufficient to maintain contact alignment under the electromagnetic repulsion forces generated during high-current interruption. The three-pole common trip bar ensures simultaneous interruption of all three phases, preventing single-phasing conditions that would otherwise cause motor overheating.

EMC considerations in the FGN design include the arc chute geometry, which limits the duration of the arc plasma — a broadband RF emitter — to minimize conducted and radiated interference on adjacent control wiring. The breaker’s metal frame provides a low-impedance ground path, and the terminal design accommodates both copper and aluminum conductors with appropriate lug torque specifications, reducing the risk of high-resistance connections that generate localized heat and EMI.

System Integration Benefits

• Selective Coordination with Upstream Devices: The FGN36AA630NNF’s time-current characteristic (TCC) is published in GE’s coordination software, enabling engineers to verify selective coordination with upstream fuses or larger-frame breakers, ensuring only the faulted circuit is isolated without upstream tripping.
• Accessory Ecosystem for Remote Operation: Compatible shunt trip coils (120V AC or 24V DC) allow integration with PLC digital outputs or fire alarm systems for remote trip commands, enabling automated load shedding or emergency shutdown sequences without manual intervention.
• Undervoltage Release for Process Protection: Optional UVR accessories trip the breaker automatically when supply voltage drops below approximately 35–70% of rated voltage, protecting motors from low-voltage stall conditions that cause winding overheating.
• Auxiliary Contact Feedback to SCADA: Form-C auxiliary contacts (NO/NC) provide breaker position status to PLC inputs or SCADA systems, enabling real-time monitoring of breaker state, trip events, and alarm annunciation without additional current transformers.
• Direct Replacement in Existing GE Panels: The FGN frame dimensions and bolt pattern are consistent across the FGN Series, allowing direct substitution in existing GE switchboards and MCCs without panel modification, minimizing maintenance downtime.
• Motor Feeder Protection with Defined Overload Curve: The thermal element’s inverse-time characteristic aligns with NEMA motor thermal damage curves, providing coordinated protection for NEMA Design B motors without requiring separate overload relays at the feeder level.
• Bus Tie and Tie-Breaker Applications: The 630A rating and robust interrupting capacity make the FGN36AA630NNF suitable for bus tie service in double-ended substations, where it must interrupt fault current from two parallel sources simultaneously.
• Compliance with NEC Article 240 and 430: The device meets National Electrical Code requirements for both feeder overcurrent protection (Article 240) and motor branch-circuit protection (Article 430), simplifying code compliance documentation for AHJ inspections.

Quality Assurance & Global Logistics

Every GE FGN36AA630NNF unit supplied by siemensplc.com is sourced through verified industrial supply channels with full manufacturer traceability. Units are inspected upon receipt for housing integrity, nameplate legibility, handle mechanism operation, and contact condition. Original GE labeling, date codes, and UL markings are verified against published specifications before any unit is allocated to an order.

Packaging follows ESD-safe and shock-resistant protocols: each breaker is wrapped in anti-static film, cushioned with high-density foam inserts, and sealed in a double-wall corrugated carton with desiccant packs to prevent moisture ingress during ocean or air transit. For international shipments, commercial invoices, packing lists, certificates of origin, and — upon request — certificates of conformance are prepared to facilitate customs clearance in destination countries.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, enabling both express air freight (DHL, FedEx, UPS — typically 3–7 business days to major global destinations) and consolidated sea freight for bulk orders. All shipments are tracked end-to-end, with tracking numbers provided within 24 hours of dispatch. A 12-month warranty covers manufacturing defects; units exhibiting functional failure under normal operating conditions within the warranty period are replaced or credited without dispute.
