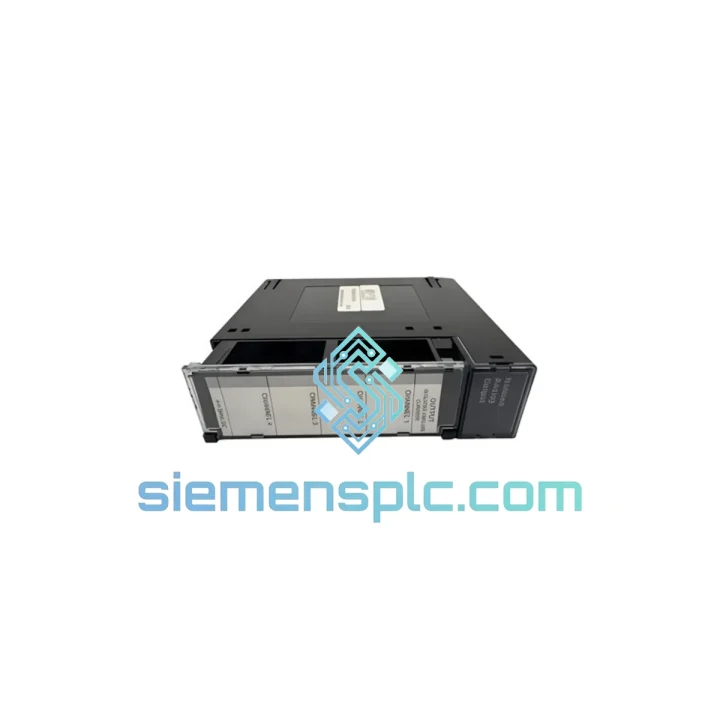

GE HE693ADC420 Analog Input Module

GE HE693ADC420 — Stop the Bleed: Get Your Series 90-30 Back Online Before the Next Shift

Your analog input module just failed. The process loop is open. Operators are staring at flatline trends on the HMI. Every minute this rack sits dark, you’re burning through production capacity, SLA penalties, and maintenance budget simultaneously. You don’t need a sales pitch — you need a module on a plane tonight.

The GE HE693ADC420 is a multi-channel analog input module purpose-built for the GE Series 90-30 PLC platform. We stock it in Xiamen. It ships the same business day via DHL Express or FedEx International Priority. That’s the only thing that matters right now.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of pulling failed analog cards out of live racks, here’s what actually trips people up on the HE693ADC420 swap:

1. Jumper Configuration Before You Seat the Module
The HE693ADC420 uses on-board jumpers (JP1–JP4) to select voltage vs. current input per channel. This is the single most common cause of “module installed, no signal” calls. Before you slide the new card in, match the jumper positions to your field wiring documentation. If you’ve lost the original config sheet, check the Logicmaster 90 or Proficy Machine Edition I/O configuration — the channel type is declared there and must match the hardware jumpers exactly. Mismatch = the channel reads zero or pegs at full scale.

2. Slot Auto-Addressing — Don’t Move the Module
Series 90-30 uses slot-based I/O addressing. The CPU assigns %AI references based on physical slot position. If you’re replacing a failed HE693ADC420 in slot 4, the replacement must go back into slot 4. Inserting it into a different slot will shift all downstream %AI addresses and corrupt your ladder logic references without throwing a fault. Verify slot position against your rack layout drawing before powering up.

3. Common Fault Codes to Expect
After hot-insertion (if your CPU supports it), watch for these in the fault table:

• I/O Bus Fault (0x0010): Module not seated fully. Press firmly until the ejector clips click. Check backplane connector pins for bent contacts.
• Configuration Mismatch Fault: The CPU’s stored I/O config doesn’t match the inserted module type. Force a hardware configuration download from your programming terminal.
• Channel Over-Range: Field signal exceeds the configured input range. Check transmitter output and loop power supply before blaming the module.

4. Firmware Compatibility
The HE693ADC420 is compatible with all Series 90-30 CPU firmware revisions from 6.xx onward. If you’re running a very early CPU (pre-Rev 6), verify with GE documentation. In practice, this is rarely an issue on any system still in active service — but worth confirming if the rack has been in storage.

5. Power Budget Check
Each analog module draws from the 5 VDC backplane bus. On a fully loaded 10-slot rack, verify your power supply (IC693PWR321 or equivalent) has headroom. A marginal PSU will cause intermittent analog faults that look like module failures but aren’t.

Reliability in Harsh Conditions

The Series 90-30 platform was engineered for the factory floor, not a climate-controlled server room. The HE693ADC420 reflects that design philosophy throughout its construction.

The PCB uses conformal coating on production variants, providing a moisture barrier against condensation cycles common in coastal and tropical plant environments. The backplane connector is a high-cycle-rated edge connector designed to maintain contact integrity through repeated insertion cycles — relevant when you’re swapping modules during troubleshooting under time pressure.

Vibration tolerance meets IEC 68-2-6 test profiles, covering the 5–150 Hz range at 1g acceleration — adequate for most pump skids, compressor rooms, and conveyor drive panels. The module’s internal signal conditioning circuitry includes EMI filtering on each analog input channel, which matters in environments with variable-frequency drives, large motor starters, or welding equipment running on the same electrical infrastructure.

Thermal design allows continuous operation at 60°C ambient without derating. In practice, a well-ventilated Series 90-30 enclosure running at 45°C internal temperature gives you substantial margin. Units we’ve seen fail prematurely almost always trace back to blocked enclosure vents, failed cooling fans, or installation in direct sunlight — not the module itself.

Every HE693ADC420 we ship undergoes visual inspection for PCB damage, connector pin integrity, and component-level anomalies. We do not ship modules with corroded terminals, cracked housings, or evidence of prior thermal events — full stop.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — a major international cargo hub with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. Stock is physically on our shelves.

Standard Express Timeline (from order confirmation):

• Order confirmed before 14:00 CST: Same-day dispatch
• DHL Express Worldwide: 2–4 business days to Europe, Middle East, Southeast Asia
• FedEx International Priority: 1–3 business days to North America, Australia
• Customs documentation: Commercial invoice, packing list, and HS code declaration prepared for every shipment
• Full tracking: AWB number provided within 2 hours of dispatch

For destinations with import restrictions on industrial electronics, we can advise on documentation requirements. We’ve shipped to over 40 countries and handle customs paperwork as a standard part of the process — not an afterthought.

Emergency same-day courier arrangements are available for critical plant shutdowns. Contact us directly on WhatsApp for fastest response when every hour counts.
