GE IC693PWR321 PLC Power Supply Module – Series 90-30

GE IC693PWR321 — AC Power Supply Module for Series 90-30 PLC Backplane Architecture

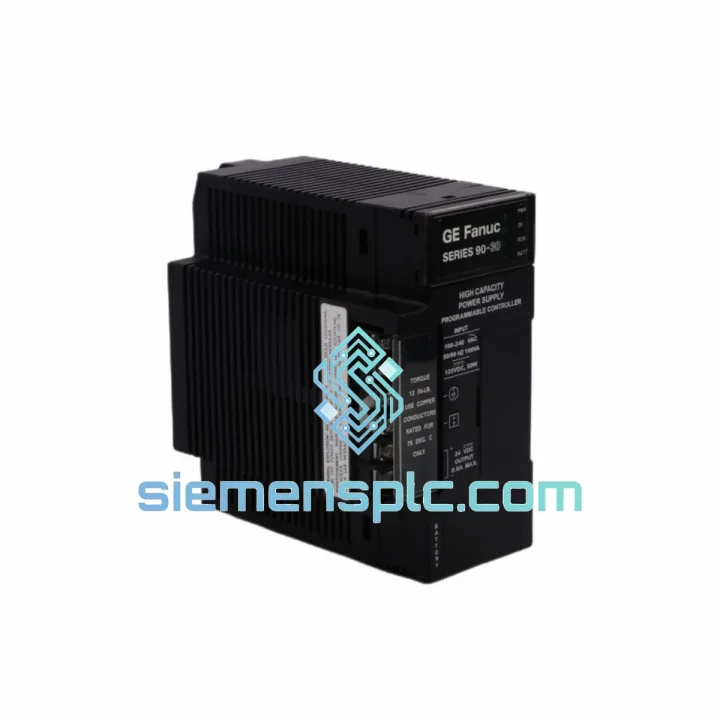

The IC693PWR321 is a single-slot AC power supply module designed exclusively for the GE Fanuc Series 90-30 programmable logic controller platform. It accepts wide-range AC mains input (120 VAC or 240 VAC, auto-selected) and delivers regulated +5 VDC and +24 VDC rails directly onto the Series 90-30 backplane bus. The module occupies the dedicated power slot at the leftmost position of any standard Series 90-30 baseplate — IC693CHS391 (5-slot), IC693CHS392 (10-slot), or IC693CHS397 (10-slot with expansion connector). Its 40 W total output budget is sufficient to sustain a fully populated mixed-I/O rack under continuous industrial duty cycles.

In a Series 90-30 control loop, the power supply is the first node in the energy chain. Voltage stability on the +5 VDC rail directly determines the timing accuracy of the CPU scan cycle and the integrity of backplane token-passing arbitration. The IC693PWR321 maintains output regulation within ±2% across its full load range, ensuring that CPU modules such as the IC693CPU374 or IC693CPU364 operate within their specified logic-level thresholds at all times. The isolated +24 VDC auxiliary output provides a galvanically separated source for field transmitters and discrete sensors, preventing ground-loop currents from coupling noise into the analog input channels of co-located I/O modules.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC693PWR321 employs a forward-mode switching topology operating at a fixed internal frequency above the audible range. The primary-side controller monitors input voltage continuously; when mains voltage crosses the 150 VAC threshold, the tap-selection relay engages the 240 VAC winding path without operator intervention. This auto-ranging mechanism eliminates the manual voltage-selector switch found on older linear supply designs, reducing mis-configuration risk during panel commissioning in multi-voltage facilities.

Output regulation is achieved through a pulse-width modulation (PWM) feedback loop that samples the +5 VDC rail at the backplane connector, not at the internal filter capacitor. This remote-sense architecture compensates for resistive voltage drop across the backplane bus traces, maintaining the ±2% regulation window at the actual load point rather than at the supply output terminals. The consequence for system designers is that CPU and I/O modules receive consistent logic-level supply voltage regardless of backplane trace impedance variation across different baseplate revisions.

The +24 VDC auxiliary rail is generated by a separate secondary winding with its own rectification and LC filter stage. Galvanic isolation between the +24 VDC output and the +5 VDC backplane rail is maintained by the transformer core; no common ground reference exists between the two outputs. This architecture is significant for EMC compliance: field wiring connected to the +24 VDC terminal block cannot inject common-mode noise onto the backplane data bus, a failure mode that frequently causes intermittent communication faults in installations where sensor cabling runs parallel to AC power conduits.

Thermal management relies entirely on natural convection through the module’s aluminum extrusion heatsink. The absence of a cooling fan eliminates the most statistically frequent mechanical failure mode in enclosed control panels operating in dusty or high-humidity environments. The thermal shutdown circuit monitors junction temperature of the main switching transistors; if the internal temperature exceeds the design threshold, the supply enters a controlled shutdown state and asserts a fault signal on the backplane, allowing the CPU to log a diagnostic event before power is removed from the rack.

System Integration Benefits

• Deterministic scan-cycle support: The ±2% +5 VDC regulation ensures CPU logic levels remain within specification across the full 0–60 °C operating range, preventing scan-time jitter caused by marginal supply voltage.
• Diagnostic transparency: The power-good signal asserted to the CPU on stable output enables the Series 90-30 operating system to distinguish between a controlled power-up sequence and an uncontrolled brownout event, supporting accurate fault logging in the CPU’s diagnostic table.
• Sensor power isolation: The galvanically isolated +24 VDC auxiliary output eliminates ground-loop coupling between field instrumentation and the backplane data bus, reducing analog channel noise floors in mixed discrete/analog I/O configurations.
• Zero-wiring backplane integration: The plug-in form factor delivers all power rails through the backplane connector; no inter-module power wiring is required, reducing panel assembly time and eliminating a class of wiring-error faults.
• Global mains compatibility: Auto-ranging AC input from 85 to 264 VAC allows the same module to operate on 120 VAC North American panels and 230 VAC European or Asian panels without hardware modification, simplifying spare-parts inventory for multi-site operators.
• Fanless reliability: Convection cooling removes the fan as a failure mode, extending mean time between failures (MTBF) in environments with airborne particulates, condensation, or vibration that would degrade fan bearings.
• Comprehensive protection stack: Over-voltage, over-current, short-circuit, and thermal shutdown circuits protect downstream CPU and I/O modules from supply-side fault propagation, limiting fault damage to the power supply module itself.
• Direct OEM replacement: The IC693PWR321 is a factory-specification component; no firmware update, parameter configuration, or hardware jumper setting is required after installation — the module is operational immediately upon seating in the baseplate power slot.

Quality Assurance & Global Logistics

Every IC693PWR321 unit supplied by siemensplc.com is sourced as genuine GE Fanuc original hardware. Prior to dispatch, each module undergoes a structured inspection protocol: visual examination of the PCB, terminal block, and backplane connector for mechanical damage; label and date-code verification against GE Fanuc manufacturing records; and continuity checks on the AC input terminal block and backplane edge connector pins. Units that do not pass inspection are quarantined and not listed for sale.

Logistics operations are based in Xiamen, China. Xiamen is a designated free-trade port with direct air-freight connections to major international hubs including Hong Kong, Singapore, Frankfurt, Los Angeles, and Dubai. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment. HS Code 8537.10 applies to this product category for customs classification purposes. Express courier services (DHL, FedEx, UPS) are used for all shipments; typical transit times are 3–5 business days to Europe and North America, and 2–3 business days to Southeast Asia. For orders requiring expedited clearance, pre-shipment customs documentation can be provided electronically to the consignee’s customs broker before the shipment departs Xiamen.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed by advance replacement: a replacement unit is dispatched upon receipt of the defective module and confirmation of the fault condition. This policy minimizes production downtime for customers operating time-critical manufacturing or process control systems.
