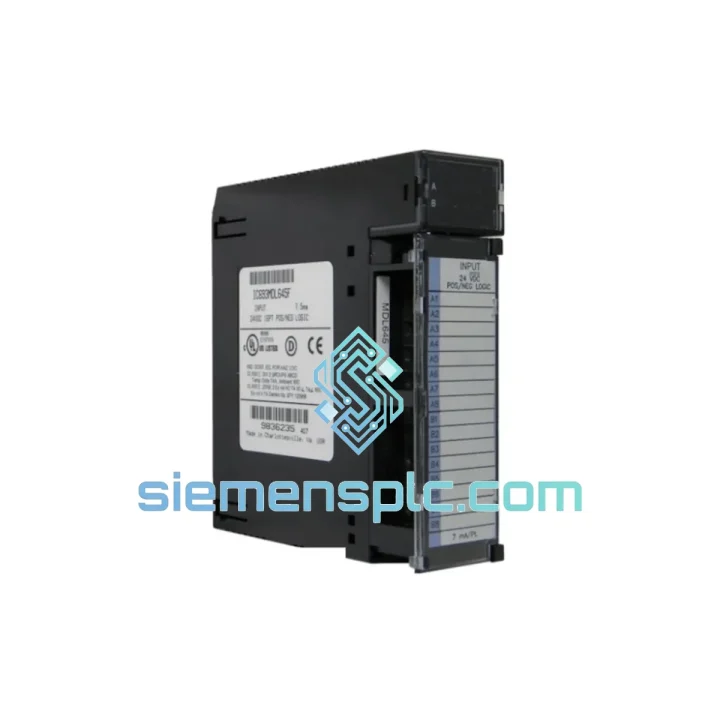

GE Fanuc IC693MDL645 PLC Input Module

IC693MDL645 Down? Every Minute Costs Money — We Ship Same Day

Your Series 90-30 rack just threw a fault. The IC693MDL645 is dead. The line is stopped. You’ve already called your local distributor — 3 to 6 weeks lead time. That’s not an option. We stock IC693MDL645 in Xiamen, tested and ready to go. Order before 14:00 CST and it leaves today via DHL Express. Most destinations in Southeast Asia receive within 48 hours. Europe and North America within 72–96 hours. This is the module. This is the source. Let’s get your line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, the IC693MDL645 fails in predictable ways. Here’s what you’ll actually encounter and how to deal with it fast:

Fault Code 0x0041 / Input Module Not Responding
This is the most common call. The CPU logs a hardware fault against the slot. Before you condemn the module, pull it, inspect the backplane connector pins for corrosion or bent contacts, and reseat. If the fault persists after reseating, the module is gone. Swap it. No configuration change needed — the 90-30 CPU auto-identifies the MDL645 by slot position. You do not need to re-download the hardware configuration if the replacement is the same part number and revision.

Intermittent Input Chatter — Points Toggling Without Field Signal Change
Nine times out of ten this is a wiring issue, not the module. Check the common terminal for each 8-point group. A loose common causes all 8 points in that group to behave erratically. If the common is solid, check for ground loops — the MDL645’s optical isolation handles 1500VAC, but a floating field common referenced to a different ground plane will still cause noise. Bond field commons to a single earth reference point.

All 16 Points Dead — No LED Activity
Check backplane power first. The MDL645 draws 80mA from the 5VDC backplane rail. If the rack power supply is marginal or another module is pulling excess current, the 5V rail sags and the input module goes dark. Measure the 5VDC rail at the rack connector — it must be within ±5% (4.75–5.25VDC). If rail voltage is good and the module still shows no LED activity, the backplane interface IC on the module has failed. Replace the module.

Replacement Procedure — Step by Step

1. Place the CPU in STOP mode. Do not cut rack power — the 90-30 supports hot-swap of I/O modules, but confirm your site safety procedure first.
2. Disconnect the 40-pin terminal block from the failed module. The terminal block stays wired — this is the key advantage of the removable connector design. Zero rewiring.
3. Press the module release tab and slide the MDL645 out of the slot.
4. Inspect the replacement module’s backplane connector and terminal block socket for damage before insertion.
5. Slide the new IC693MDL645 into the same slot until it clicks. Reconnect the terminal block.
6. Return the CPU to RUN mode. The CPU will automatically recognize the module. Verify all 16 input LEDs reflect actual field signal states within one scan cycle.
7. Check the fault table in Proficy Machine Edition — clear any latched hardware faults from the previous failure.

Firmware & Hardware Revision Note: The IC693MDL645 has no user-configurable firmware or DIP switches. There are no address jumpers to set. The module’s slot position in the rack determines its %I address mapping — this is handled entirely by the hardware configuration in Proficy Machine Edition. If you are replacing a module in an existing, running system, the %I addresses are already assigned and no software change is required.

Cross-Reference Warning: IC693MDL640 (8-point) and IC693MDL641 (16-point 120VAC) are NOT drop-in replacements. Voltage class and point count must match. For RX3i systems, the equivalent is IC694MDL645 — different backplane, not interchangeable.

Reliability in Harsh Conditions

The IC693MDL645 was not designed for a climate-controlled server room. It was built for the floor — automotive stamping plants with 60°C ambient, coastal water treatment facilities with salt-laden humid air, and offshore platform control panels where vibration is constant and condensation is a daily reality.

The optical isolation stage is the first line of defense. At 1500VAC field-to-logic isolation, the module absorbs inductive kickback from solenoids, motor contactors, and relay coils without passing transients to the CPU backplane. The RC filter network on each input channel suppresses high-frequency noise that would otherwise cause false triggering on long cable runs in electrically noisy environments.

The PCB conformal coating on production-grade units provides resistance to humidity and airborne contaminants. Operating range of 0–60°C covers the vast majority of industrial enclosure environments, even without forced air cooling. Storage down to -40°C means modules can be warehoused in unheated facilities without degradation.

Vibration tolerance meets IEC 68-2-6 standards — the module stays seated and functional on machinery with significant mechanical vibration, including presses, compressors, and conveyor drive systems. The removable terminal block design also eliminates the mechanical stress point that fixed-wiring modules suffer from: field cable weight and vibration are absorbed by the terminal block housing, not the module’s PCB solder joints.

Units shipped from our Xiamen warehouse are inspected for physical integrity, connector condition, and LED function before dispatch. Every module is packed in an anti-static bag inside a foam-lined carton rated for international air freight handling.

Global Express Logistics

Downtime doesn’t wait for sea freight. Every IC693MDL645 order ships via DHL Express or FedEx International Priority from our Xiamen warehouse. Here’s the actual process:

Order Cutoff: Orders confirmed and paid before 14:00 CST (UTC+8) ship same business day. Orders after cutoff ship the following morning.

Export Documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) are prepared at time of dispatch. For customers requiring a certificate of origin or specific customs documentation, notify us at order time.

Transit Times (estimated, door-to-door):

• Southeast Asia (SG, MY, TH, VN, ID): 1–2 business days
• Northeast Asia (JP, KR, TW): 2–3 business days
• South Asia (IN, PK, BD): 3–4 business days
• Middle East (AE, SA, QA): 3–5 business days
• Europe (DE, NL, FR, UK, PL): 3–5 business days
• North America (US, CA, MX): 4–6 business days
• Australia / New Zealand: 3–5 business days

Tracking: A DHL or FedEx tracking number is emailed within 2 hours of dispatch. Real-time tracking is available on the carrier’s website. For urgent shipments, our team monitors the consignment and proactively contacts you if any customs delay is detected.

Import Duties: Shipments are declared at actual transaction value. Buyers are responsible for import duties and taxes per their country’s regulations. We can provide a proforma invoice for customs pre-clearance on request.

Emergency Freight: For critical plant shutdowns requiring overnight delivery, contact us directly via WhatsApp for a dedicated freight quote. We have access to next-flight-out courier options for extreme urgency situations.
