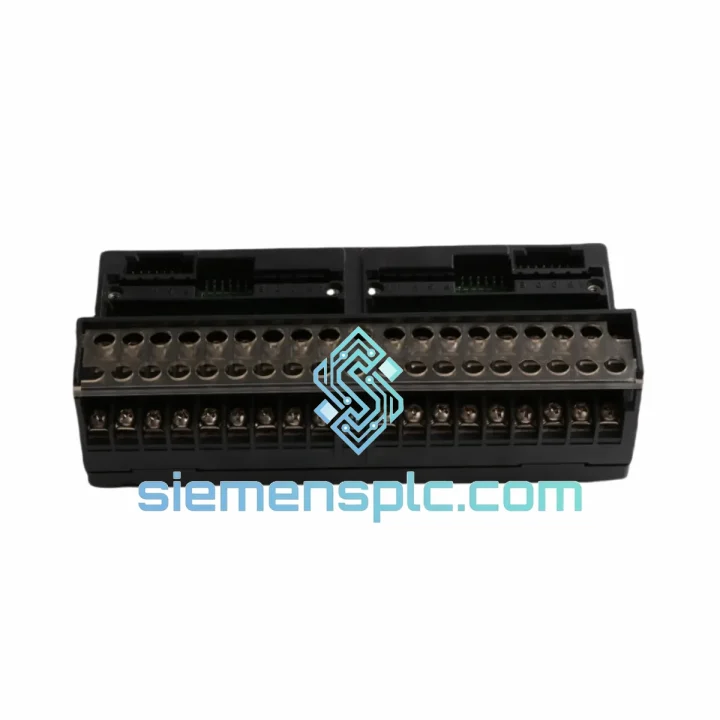

GE Fanuc IC670ALG630 Analog Input Module – IC670 Genius I/O Series

IC670ALG630: 16-Channel Analog Input Module for GE Fanuc Genius I/O Distributed Control Architecture

The GE Fanuc IC670ALG630 is a 16-channel analog input module engineered for the IC670 Genius I/O platform — a distributed I/O subsystem designed to operate across multi-drop serial bus topologies in process-intensive industrial environments. Within a Genius I/O network, each node communicates over a single twisted-pair Genius Bus at 153.6 kbps, and the IC670ALG630 occupies one bus address while delivering 16 independently configurable analog acquisition channels. This architecture eliminates the need for dedicated analog marshalling panels, reduces field wiring by consolidating signal termination at the module level, and maintains deterministic scan cycle behavior even under high channel-count configurations.

The module accepts voltage and current signals across selectable input ranges — ±10 V, 0–20 mA, and 4–20 mA — with 12-bit resolution per channel. At 12-bit depth, the effective resolution across a ±10 V span is approximately 4.88 mV per count, which is adequate for temperature transmitter loops, pressure transducers, and flow measurement signals operating through standard 4–20 mA HART-compatible field instruments. Each channel’s range is software-configurable via the GE Fanuc Logicmaster or Proficy Machine Edition programming environment, removing the need for hardware jumper changes during commissioning or range reconfiguration.

The IC670ALG630 mounts onto IC670 carrier assemblies (IC670CHS002 or IC670CHS003) and draws power from the Genius I/O bus power supply. The module’s internal analog front-end employs multiplexed sampling across all 16 channels, with each channel’s conversion result transferred to the Genius Bus Controller (IC697BEM711 or equivalent) during the bus scan cycle. The bus controller then maps these values into the PLC CPU’s data table — typically %AI registers in Series 90-70 or 90-30 CPUs — making the analog data immediately accessible to ladder logic, function block diagrams, or structured text programs without additional driver configuration.

From a hardware isolation standpoint, the IC670ALG630 incorporates optical isolation between the field-side analog inputs and the backplane bus logic. This galvanic barrier suppresses common-mode noise originating from ground potential differences between field instruments and the control cabinet, a critical design requirement in installations where signal cables run alongside high-voltage motor drives or across long cable runs in petrochemical or water treatment facilities. The isolation barrier is rated to withstand transient voltages consistent with IEC 61000-4-5 surge immunity requirements, providing a measurable degree of protection against lightning-induced surges conducted through field wiring.

The module’s operating temperature range of 0°C to 60°C covers the majority of industrial control cabinet environments. For installations in ambient conditions approaching the upper limit, adequate cabinet ventilation and derating of adjacent heat-generating modules should be factored into the thermal design. The IC670ALG630 weighs approximately 240 g and conforms to the IC670 mechanical form factor, ensuring physical interchangeability with other IC670-series I/O modules on the same carrier without mechanical modification.

In terms of system diagnostics, the Genius Bus architecture provides module-level fault reporting. If the IC670ALG630 loses communication with the bus controller — due to cable fault, power interruption, or module failure — the bus controller sets a fault bit in the PLC’s fault table, enabling the application program to execute a defined fault response routine. This diagnostic transparency is a fundamental advantage of the Genius I/O architecture over conventional hardwired analog I/O panels, where a failed channel may go undetected until a process deviation is observed at the operator station.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC670ALG630’s analog front-end uses a multiplexed successive-approximation register (SAR) ADC architecture. A single high-resolution ADC services all 16 channels sequentially through an analog multiplexer, with each channel’s signal conditioned through a dedicated input buffer amplifier before reaching the multiplexer. This design keeps per-channel component count low, which directly contributes to the module’s reliability by reducing the number of active components exposed to thermal cycling and vibration stress over the module’s service life.

The optical isolation stage between the field-side multiplexer output and the digital conversion logic uses a high-bandwidth optocoupler rated for the signal frequencies present in standard process control loops (DC to several hundred Hz). The isolation capacitance is kept low to minimize common-mode current injection — a design consideration that becomes significant when the module is installed in environments with high-frequency switching noise from variable-frequency drives operating in the same cabinet or on the same cable tray.

EMC performance is further supported by the IC670 carrier’s backplane ground plane, which provides a low-impedance return path for high-frequency noise currents, preventing them from coupling into the analog signal path. The module’s metal housing acts as a Faraday shield for the internal circuitry, attenuating radiated electric field interference from adjacent modules or external sources. These passive shielding measures complement the active filtering on each analog input channel, which typically includes a low-pass RC filter with a cutoff frequency matched to the expected signal bandwidth, rejecting high-frequency noise while preserving the DC and low-frequency process signals of interest.

The Genius Bus communication interface on the IC670ALG630 implements the Genius Bus protocol’s token-passing arbitration scheme. The bus controller polls each node in a deterministic sequence, and the IC670ALG630 responds with its 16-channel data block within the allocated time slot. This token-passing mechanism guarantees a bounded worst-case response time for analog data delivery to the PLC CPU, a property that distinguishes Genius I/O from non-deterministic Ethernet-based I/O systems in applications where scan cycle consistency directly affects control loop stability.

System Integration Benefits

• Deterministic scan cycle contribution: The Genius Bus token-passing protocol ensures the IC670ALG630 delivers its 16-channel data block within a fixed, calculable time window each scan, supporting closed-loop PID control applications where analog input latency must be bounded and predictable.
• Reduced field wiring infrastructure: Consolidating 16 analog inputs onto a single bus node eliminates 16 individual analog signal cable runs back to the control panel, reducing installation labor, conduit fill, and terminal block count in the marshalling cabinet.
• Software-configurable input ranges: Per-channel range selection via the programming environment eliminates hardware jumper changes during commissioning or instrument substitution, reducing the risk of wiring errors and shortening loop checkout time.
• Module-level fault diagnostics: The Genius Bus architecture reports IC670ALG630 communication faults directly to the PLC fault table, enabling the application program to execute defined fault-response logic — such as switching to manual control or activating a safe-state output — without operator intervention.
• Galvanic isolation for noise immunity: Optical isolation between field inputs and bus logic suppresses common-mode voltages arising from ground potential differences across long cable runs, maintaining signal integrity in installations where field instruments are located hundreds of meters from the control room.
• Compatibility with existing IC670 infrastructure: The IC670ALG630 is mechanically and electrically compatible with all IC670 carriers and bus controllers, allowing it to be added to or substituted within an existing Genius I/O network without hardware modifications to the rack or bus wiring.
• Direct PLC data table mapping: Analog values are mapped directly into %AI registers in Series 90-70 and 90-30 CPUs by the bus controller, making channel data immediately accessible to application logic without intermediate driver configuration or data conversion routines.
• Scalable distributed architecture: Multiple IC670ALG630 modules can be deployed across a single Genius Bus segment (up to 32 nodes per segment), allowing analog I/O capacity to be expanded incrementally as process requirements grow, without redesigning the control system architecture.

Quality Assurance & Global Logistics

Every IC670ALG630 unit supplied by siemensplc.com is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Physical inspection covers label integrity, housing condition, connector pin alignment, and the absence of counterfeit markings or evidence of unauthorized refurbishment. Where test equipment is available, functional verification of basic I/O response is performed prior to packaging.

Units are dispatched from our warehouse in Xiamen, China, with standard lead times of 3–7 business days for in-stock inventory. Express shipment via DHL, FedEx, or UPS is available for time-critical procurement requirements. All export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements and provided with each shipment. We serve customers across North America, Europe, Southeast Asia, the Middle East, and South America. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.
