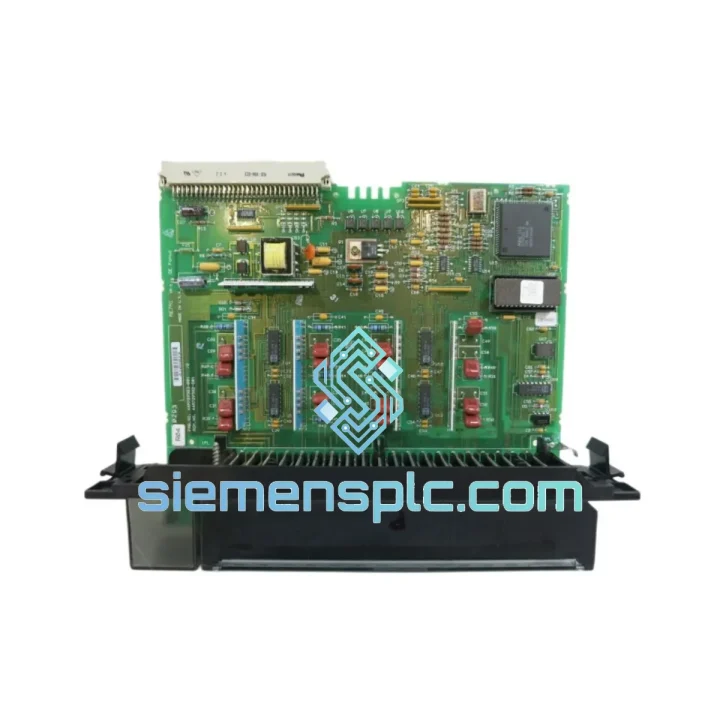

GE IC697ALG440 Analog Input Module – Series 90-70

IC697ALG440: High-Density Analog Acquisition Node in Series 90-70 Distributed Control Architecture

The GE Fanuc IC697ALG440 is a 16-channel analog input module engineered for the Series 90-70 rack-based PLC platform. Its primary function within a control loop is to serve as the analog front-end: acquiring continuous process signals from field transmitters, converting them to 12-bit digital words, and staging those values in the CPU input image table on every PLC sweep cycle. The module occupies one backplane slot and draws power exclusively from the 5 VDC backplane bus, requiring no external field-side power supply for its internal logic.

In process industries — refining, power generation, water treatment, pulp and paper — analog measurement density is a direct function of plant instrumentation count. A single IC697ALG440 handles 16 single-ended channels or 8 differential channels, selectable per channel group through the hardware configuration block in Proficy Machine Edition or Logicmaster 90-70. This software-defined flexibility allows one module to simultaneously interface with 4–20 mA current loop transmitters on one group and ±10 V DC voltage output sensors on another, without external signal conditioning hardware or additional rack slots.

A fully populated 10-slot Series 90-70 rack with one CPU and one power supply can accommodate up to eight IC697ALG440 modules, yielding 128 analog input channels within a single enclosure. This slot efficiency is a measurable engineering advantage in control room designs where rack space, cable tray capacity, and panel footprint are constrained by civil and electrical engineering budgets.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Multiplexed SAR Conversion Architecture: The IC697ALG440 routes all active channel inputs through a single analog multiplexer before a shared SAR ADC core. The MUX advances sequentially through each enabled channel, holding the selected signal stable during the SAR conversion window — typically a few microseconds per channel. This architecture trades simultaneous sampling capability for a significant reduction in silicon area and per-channel cost. For process variables with dynamics well below 1 Hz (temperature, pressure, level), the resulting aggregate scan latency is operationally negligible and does not affect control loop performance.

Galvanic Isolation and EMC Barrier: The opto-coupler isolation stage between the field-side analog circuitry and the backplane bus interface eliminates ground loop currents. In large industrial installations — particularly those with shared grounding structures between field instruments, motor control centers, and control panels — ground potential differences of several volts are common. Without galvanic isolation, these potentials appear as common-mode error voltages on the analog inputs, corrupting 12-bit measurements where 1 LSB represents approximately 4.9 mV at ±10 V full scale. The opto-coupler barrier clamps these common-mode voltages and simultaneously blocks transient energy from inductive field devices (solenoid valves, relay coils, motor starters) from propagating to the backplane and affecting CPU operation.

Passive RC Anti-Aliasing Filter: Each channel input passes through a passive RC low-pass filter before the MUX stage. The filter cutoff frequency is set conservatively below the module’s per-channel sampling rate, attenuating 50/60 Hz mains interference and high-frequency switching noise from variable-frequency drives. Without this stage, out-of-band noise components would alias into the baseband signal during ADC sampling, producing measurement errors that cannot be corrected in software after the fact. The passive implementation adds no active noise sources and requires no power supply.

Backplane Bus Interface and Passive Arbitration: Converted digital values are buffered in the module’s local data register and transferred to the CPU input image table during the CPU-initiated read phase of each PLC sweep. The IC697ALG440 operates as a passive bus responder — it does not initiate bus transactions or assert bus ownership. This design prevents bus contention in multi-module racks and ensures that analog data transfer does not introduce timing jitter into the digital I/O scan sequence. The CPU reads all analog input data within a fixed, bounded window of each sweep cycle.

Integrated 250 Ω Current Loop Termination: In 4–20 mA current input mode, the on-board 250 Ω shunt resistor converts loop current to a proportional voltage (1.0–5.0 V DC) before the MUX stage. This termination is integrated on the module PCB, eliminating external burden resistors at the terminal block. The 250 Ω value is selected to maintain the voltage drop within the compliance range of standard two-wire transmitters powered from 24 VDC loop supplies, ensuring reliable operation across the full 4–20 mA span without transmitter saturation.

System Integration Benefits

• CPU Scan Cycle Decoupling: All analog multiplexing and ADC conversion execute autonomously on the module. The CPU reads completed results from the input image table without managing conversion timing or sequencing, preserving scan-cycle capacity for control logic, communication tasks, and PID execution.
• Jumper-Free Channel Reconfiguration: Input type and range are defined entirely in the hardware configuration block within Proficy Machine Edition. Changing a channel group from voltage to current mode requires only a software edit and a CPU download — no physical access to the module, no jumper changes, no risk of misconfiguration from incorrect jumper placement.
• Fixed-Latency Analog Data Delivery: Analog input values are refreshed in the CPU image table on every PLC sweep, providing a deterministic, fixed-latency data path. PID control loops reading IC697ALG440 inputs receive fresh process variable data at a predictable interval, eliminating the phase lag variability that degrades loop stability when analog data latency is non-deterministic.
• Channel-Level Fault Reporting: The module reports open-circuit conditions on current inputs and over-range conditions on voltage inputs to the CPU via the backplane fault table. Application logic can read these fault bits directly and implement alarm annunciation or safe-state fallback without external diagnostic hardware or additional wiring.
• Maximum Analog Density per Rack Slot: At 16 channels per slot, the IC697ALG440 provides the highest single-slot analog input density in the Series 90-70 module catalog. Compared to 4- or 8-channel alternatives, this reduces occupied rack slots, lowers per-channel terminal block and cable cost, and simplifies rack layout in space-constrained enclosures.
• Mixed Sensor Type Support in One Module: Single-ended and differential wiring modes are independently configurable per channel group. A single IC697ALG440 can simultaneously terminate two-wire 4–20 mA transmitters on one group and three-wire ±10 V DC voltage output sensors on another, eliminating the need to stock separate module variants for different sensor types.
• Zero-Modification Drop-In Replacement: The IC697ALG440 is a direct physical and electrical replacement for any previously installed unit of the same part number. No firmware updates, rack rewiring, or hardware configuration file modifications are required, minimizing corrective maintenance downtime to the time required for physical module swap and CPU restart.
• Platform Longevity and Capital Preservation: The Series 90-70 platform remains operational across a substantial installed base in power, petrochemical, and municipal water treatment facilities. Maintaining verified IC697ALG440 stock allows plant engineers to execute corrective and preventive maintenance without committing to a full platform migration, preserving the capital investment embedded in existing control system infrastructure, field wiring, and operator training.

Quality Assurance & Global Logistics

Each IC697ALG440 unit offered through siemensplc.com is sourced from verified supply channels: authorized industrial distributors with documented chain of custody, OEM surplus inventory with original packaging, and decommissioned plant equipment with traceable service records. Units from unverified secondary market sources are not accepted into inventory.

Pre-Shipment Inspection Protocol: Every module undergoes a structured inspection sequence prior to dispatch. This covers visual examination of PCB surface condition, edge connector pin integrity, and OEM label authenticity; functional power-on verification confirming backplane communication handshake and channel response across the input range; and cross-referencing of part markings and date codes against GE Fanuc OEM documentation to screen for counterfeit or remarked components. Units that do not pass all inspection stages are quarantined and removed from available inventory.

Packaging Standard: Modules are individually sealed in anti-static ESD bags, cushioned with closed-cell foam inserts, and packed in double-wall corrugated cartons rated for international air freight handling. Fragile labels and tilt indicators are applied to outer cartons. A packing list, inspection record, and warranty certificate accompany each shipment.

Warranty Terms: All units carry a 12-month functional warranty from the confirmed shipment date, covering defects in materials and workmanship under normal operating conditions as defined in the GE Fanuc Series 90-70 installation manual. Warranty claims are acknowledged within one business day of receipt.

Global Dispatch from Xiamen, China: Warehouse and logistics operations are based in Xiamen, Fujian Province — a Tier-1 international freight hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard transit times are 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia and the Middle East. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared accurately for each shipment to minimize customs clearance delays at destination ports.
