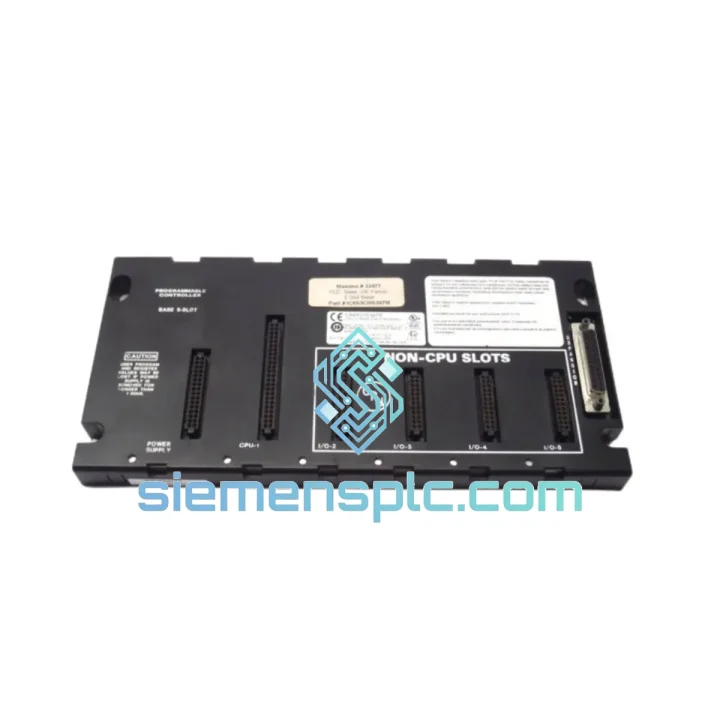

GE IC693CHS397 PLC Baseplate – Series 90-30

GE IC693CHS397: 5-Slot CPU Baseplate for Series 90-30 Modular Control Architecture

The IC693CHS397 is the structural and electrical foundation of a GE Fanuc Series 90-30 modular PLC rack. Designed to accept one CPU module and up to four I/O or specialty modules, this 5-slot baseplate provides the parallel backplane interconnect that governs all inter-module data exchange, power distribution, and diagnostic signaling within the rack assembly. Its role in the control loop is not passive — the backplane bus arbitrates scan-cycle timing between the CPU and each installed module, directly influencing deterministic response latency in discrete and analog control applications.

In a typical Series 90-30 deployment, the IC693CHS397 serves as the primary rack in single-rack configurations or as the master chassis in multi-rack topologies where IC693CHS398 or IC693CHS399 expansion baseplates are connected via the IC693BEM331 Bus Expander Module. The backplane architecture uses a parallel bus structure with dedicated address, data, and control lines, enabling the CPU to perform memory-mapped I/O reads and writes with deterministic cycle times — a critical requirement in process control and machine sequencing applications where scan jitter must remain below 1 ms.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC693CHS397 backplane implements a synchronous parallel bus topology in which the CPU module acts as the sole bus master. Each slot is assigned a fixed address range within the CPU’s I/O memory map, and module presence is detected at power-up through a hardware identification register embedded in each module’s connector interface. This eliminates the need for software-based slot scanning and reduces initialization overhead during cold-start sequences.

From an EMC standpoint, the backplane PCB incorporates ground plane segmentation between the logic bus and the power distribution rails. The 5 VDC logic supply and the 24 VDC field power supply are routed on separate copper layers with inter-layer shielding vias, reducing conducted noise coupling between the power supply output stage and the signal bus. This design is particularly relevant in environments with variable-frequency drives (VFDs) or large inductive loads on the same panel, where common-mode noise on the power rail can otherwise corrupt backplane data transfers.

The connector interface between the baseplate and each module uses a high-density edge connector with gold-plated contacts rated for a minimum of 200 insertion cycles. Contact geometry is designed to maintain a gas-tight connection under thermal cycling conditions (−40 °C to +85 °C), preventing the micro-fretting corrosion that is a common failure mode in industrial rack systems operating in environments with significant diurnal temperature variation.

The chassis ground lug provides a low-impedance path (<0.1 Ω) from the backplane ground plane to the panel earth, a specification that supports compliance with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity) test levels when the installation follows GE’s recommended grounding topology.

System Integration Benefits

• Deterministic scan-cycle support: The parallel backplane architecture allows the CPU to complete a full I/O table update within a single scan cycle, with no token-passing or arbitration delay introduced by the chassis hardware itself — scan jitter is governed solely by CPU processing load.
• Transparent module diagnostics: Each slot’s hardware ID register allows the CPU to detect module insertion, removal, or mismatch at the hardware level, generating a fault entry in the CPU fault table without requiring a software polling routine.
• Scalable rack topology: The IC693CHS397 supports expansion to multi-rack configurations via the IC693BEM331 Bus Expander, allowing up to 7 additional expansion racks (IC693CHS398/399) without changing the primary rack hardware or CPU addressing scheme.
• Power supply redundancy path: The baseplate power connector accepts all four Series 90-30 power supply variants, enabling field substitution of the power supply without baseplate replacement — a significant advantage in maintenance scenarios where minimizing downtime is critical.
• Noise-isolated power distribution: Separate backplane traces for 5 VDC logic and 24 VDC field power prevent field-side transients from propagating into the CPU logic supply domain, reducing nuisance faults in high-noise industrial environments.
• Thermal management: The open-frame chassis design allows convective airflow across all installed modules. Slot spacing is sized to accommodate the thermal envelope of high-dissipation analog modules without requiring forced-air cooling in standard ambient conditions up to 55 °C.
• Programming environment compatibility: The baseplate is fully transparent to GE Proficy Machine Edition and legacy Logicmaster 90-30 programming environments — no chassis-specific configuration is required; slot assignments are managed entirely through the CPU hardware configuration table.
• Long-term parts availability: As a passive mechanical and electrical assembly with no firmware dependency, the IC693CHS397 has no end-of-life software constraint. It remains serviceable as long as compatible Series 90-30 CPUs and I/O modules are available, making it a low-risk choice for long-lifecycle industrial installations.
