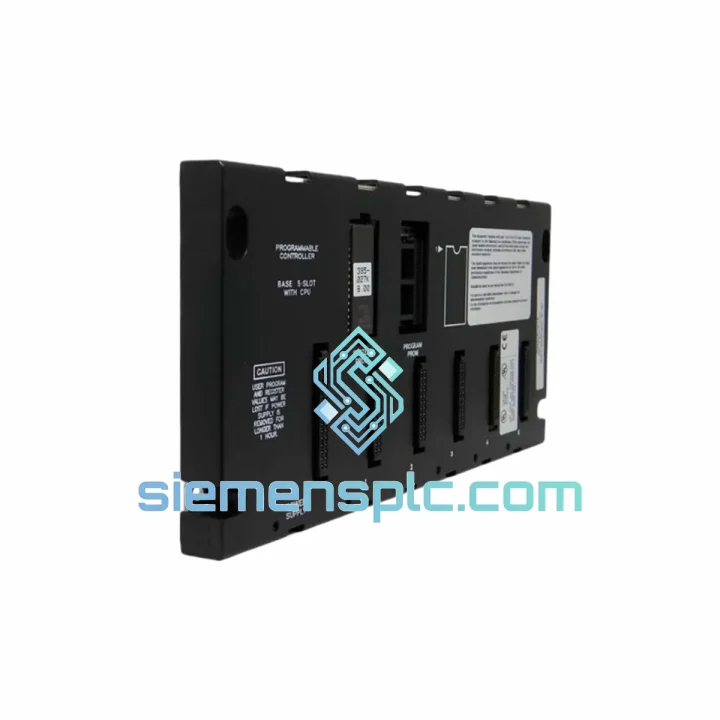

GE IC693CPU311 PLC CPU Module – Series 90-30

GE IC693CPU311 Series 90-30 PLC CPU Module – Backplane Bus Arbitration and Deterministic Scan Cycle Control

The IC693CPU311 is the entry-level central processing unit of GE Automation’s Series 90-30 programmable logic controller platform. It occupies slot 1 of any Series 90-30 baseplate and assumes full ownership of the backplane communication bus, executing the user ladder logic program, managing I/O table updates, and servicing serial communication requests within a single deterministic scan cycle. With 12K words of user program memory and support for up to 512 discrete I/O points across a distributed rack architecture, the IC693CPU311 is positioned for mid-complexity discrete manufacturing, utility automation, and process monitoring applications where scan-cycle predictability and hardware longevity are non-negotiable requirements.

At siemensplc.com, we maintain verified stock of the IC693CPU311 in our Xiamen warehouse. Every unit is inspected against GE factory documentation before dispatch. If your Series 90-30 system is down or you are building out a spare-parts inventory, we can ship within 24 hours of order confirmation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC693CPU311 implements a parallel backplane bus architecture in which the CPU module acts as the sole bus master. All I/O modules in the rack are bus slaves; they do not initiate transfers. The CPU executes a fixed scan sequence: input image table update → user program execution → output image table write → housekeeping (communications, diagnostics). This master-slave arbitration model eliminates bus contention and guarantees that output latency is bounded by the configured sweep time — a property that random-access bus architectures cannot provide.

EMC and Signal Integrity Design: The Series 90-30 backplane uses differential signal pairs for address and data lines, with ground planes separating logic layers from the power distribution layer. The IC693CPU311 PCB incorporates decoupling capacitors at each power pin of the main processor and memory ICs, suppressing high-frequency switching transients that would otherwise couple into the address bus and cause spurious read cycles. The module’s front-panel connector is shielded, and the chassis ground path through the baseplate provides a low-impedance return for any common-mode noise injected from field wiring through I/O modules.

Memory Architecture: Program memory is implemented in battery-backed SRAM, which provides unlimited write endurance compared to flash-based alternatives — relevant for applications that perform frequent online program edits. The battery-backed RAM also retains the I/O fault table and system configuration across power cycles without requiring a reload from the programming terminal. A separate ROM holds the operating system firmware, which is not field-upgradeable on the CPU311 — firmware version is fixed at manufacture and must be matched to the Logicmaster or Machine Edition software version in use.

Serial Port Protocol Stack: The RS-232C port supports the GE SNP (Serial Natural Protocol) and SNP-X protocols for programmer attachment, as well as RTU Modbus slave mode for integration with SCADA systems and HMI panels from third-party vendors. Protocol selection is software-configured; no hardware jumpers are required. The port operates at up to 19,200 baud in SNP mode and up to 38,400 baud in some Modbus configurations, depending on cable length and noise environment.

Watchdog and Fault Handling: The CPU311 implements a hardware watchdog timer that resets the processor if the scan cycle does not complete within the configured maximum sweep time. On watchdog expiration, all outputs are driven to their configured fault state (hold last, force off, or force on — configurable per output point). The fault table logs the specific fault type and scan count at the time of the event, providing post-mortem data without requiring an external data recorder.

System Integration Benefits

• Deterministic scan execution: The fixed master-slave backplane protocol ensures that I/O update latency is a direct function of sweep time, not bus arbitration delay. Applications with tight timing requirements — conveyor indexing, press control, packaging line synchronization — can be tuned to specific sweep times without unpredictable jitter.
• Drop-in replacement compatibility: The IC693CPU311 is physically and electrically compatible with all Series 90-30 baseplates (IC693CHS391, IC693CHS392, IC693CHS393). No baseplate modification, re-wiring, or I/O module reconfiguration is required when replacing a failed CPU311 with a new unit of the same part number.
• Proficy Machine Edition continuity: Programs developed in Logicmaster 90-30 can be imported into Proficy Machine Edition, allowing the IC693CPU311 to remain in service while the engineering environment is modernized. This protects the existing program investment without requiring a controller hardware upgrade.
• SNP-X protocol for remote diagnostics: SNP-X supports multi-drop configurations where a single serial cable connects a programming terminal to multiple Series 90-30 CPUs. This reduces cabling cost in multi-rack installations and allows a single engineer to monitor several controllers from one workstation.
• Modbus RTU slave integration: Native Modbus RTU slave support on the serial port allows direct integration with any SCADA, DCS, or HMI that supports Modbus master — without an external protocol converter. This is particularly valuable in retrofit projects where the supervisory system is not GE-native.
• Fault table transparency: The CPU311 maintains a 32-entry fault table in battery-backed RAM. Each entry records fault type, module slot, and scan count. This data is accessible via the programming terminal without interrupting the running program, enabling root-cause analysis during live operation.
• Battery-backed program retention: SRAM program storage with battery backup retains the user program and I/O configuration through extended power outages. On power restoration, the CPU resumes execution from the last known state without requiring a program download from the engineering workstation.
• Expansion rack support: The IC693CPU311 supports remote I/O expansion via the Series 90-30 bus expansion module (IC693BEM331/332), allowing the I/O footprint to grow beyond the local rack without replacing the CPU. This provides a clear capacity upgrade path for installations where the initial I/O count was underestimated.

Quality Assurance & Global Logistics

Every IC693CPU311 unit dispatched from our Xiamen facility is sourced from traceable supply chains and passes a structured incoming inspection protocol: part number and revision label verification against GE factory documentation, physical inspection of PCB, connector pins, and housing integrity, and a power-on self-test confirmation where test equipment permits. Units are stored in climate-controlled, ESD-protected racking. Anti-static bags and foam-lined cartons are used for all shipments to prevent transit damage.

Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. DOA units are replaced at no cost, with expedited dispatch to minimize your downtime exposure. Warranty claims are processed within 2 business days of receipt of the returned unit.

Logistics from Xiamen to global destinations:

• DHL Express Worldwide: 3–5 business days to Europe, Middle East, Southeast Asia, and the Americas. Full door-to-door tracking and customs clearance support included.
• FedEx International Priority: 2–4 business days for North America and select Asia-Pacific destinations. Preferred for time-critical plant shutdowns with hard restart windows.
• TNT / UPS: Available on request for specific routing or consolidated project shipments.

Standard export documentation package: commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10). For customers requiring import duty exemption documentation or formal quotations with Incoterms, we respond within 2 business hours. Bulk and BOM-based project orders are handled with dedicated account support.
