GE IC693CPU323 PLC CPU Module – Series 90-30

GE IC693CPU323 Series 90-30 Turbo CPU — Backplane Architecture and Deterministic Scan Execution in High-Density I/O Environments

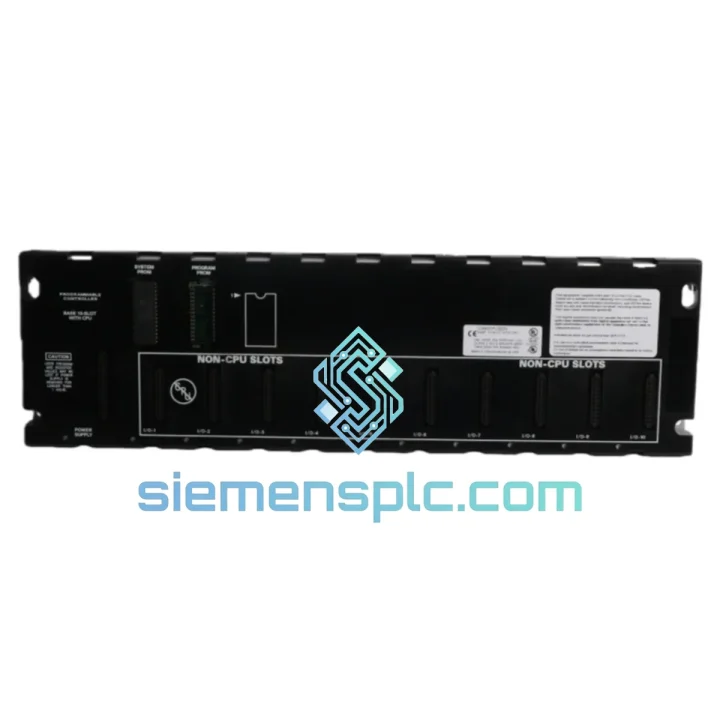

The IC693CPU323 is a Turbo-class central processing unit integrated with a 10-slot backplane, designed for the GE Series 90-30 programmable logic controller platform. Unlike standard-speed CPU variants in the same family, the IC693CPU323 executes Boolean logic at approximately 0.6 ms per 1K instructions — a throughput figure that directly reduces worst-case scan latency in applications where I/O response windows are measured in single-digit milliseconds. The integrated 10-slot base eliminates the mechanical and electrical tolerance stack-up introduced when a separate CPU module mates with an independently sourced rack, making the IC693CPU323 a preferred choice for OEM panel builders who require repeatable assembly quality across production runs.

The module allocates 12 KB for user program storage and an equal 12 KB for data table memory. While these figures appear modest against later PACSystems architectures, they are sufficient for the majority of discrete sequencing, analog PID loop management, and serial communication tasks that define the Series 90-30 application envelope. Program execution follows a fixed scan model: input image update → logic solve → output image update → communications servicing. This deterministic cycle structure is the architectural basis for the module’s suitability in process-critical installations where non-deterministic execution would introduce unacceptable jitter into closed-loop control.

Two RS-232 serial ports provide simultaneous connectivity to an HMI or operator panel on Port 1 and a programming terminal or peer PLC on Port 2, without requiring an additional communications module to occupy a base slot. The SNP (Series Ninety Protocol) and SNP-X protocols are supported natively, enabling integration with GE Cimplicity SCADA, iFIX, and third-party HMI platforms that implement the SNP driver stack. For Ethernet-based SCADA or Modbus TCP connectivity, the IC693CMM321 Ethernet Interface Module occupies one of the remaining base slots and extends the CPU’s network reach without modifying the ladder program structure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC693CPU323 backplane bus operates as a parallel data highway between the CPU and installed I/O modules. The bus arbitration logic grants the CPU exclusive write access to the output image register during the output update phase, preventing any I/O module from asserting conflicting data onto the bus during this window. This hard-arbitrated write cycle is a fundamental EMC resilience mechanism: because the output latch is updated in a single, bounded transaction rather than through asynchronous writes, transient bus noise induced by adjacent high-current switching outputs cannot corrupt the output image mid-cycle.

The Turbo designation reflects an internal clock multiplier applied to the CPU’s instruction pipeline relative to the standard IC693CPU321. The arithmetic logic unit (ALU) in the CPU323 processes contact and coil instructions in fewer clock cycles per instruction, which is the direct source of the 0.6 ms/K Boolean figure. For applications with ladder programs exceeding 4K rungs — common in multi-zone conveyor or batch sequencing applications — this throughput advantage compounds: a 6K-rung program that would scan in approximately 4.8 ms on a CPU321 completes in roughly 3.6 ms on the CPU323, a 25% reduction in worst-case output latency.

The module’s EMC design follows IEC 61000-4 series test criteria. The backplane ground plane is bonded to the DIN rail mounting point through a low-impedance copper strap, providing a defined return path for high-frequency common-mode currents induced by variable-frequency drives or solenoid switching transients in the same panel. The RS-232 port transceivers incorporate ESD protection rated to ±15 kV (human body model), which is relevant in field-service scenarios where technicians connect programming cables without first equalizing ground potential between the laptop and the panel.

Battery-backed SRAM retains the user program and data table contents during power interruptions. The lithium battery (IC693ACC001) provides a minimum 6-month retention period at 25 °C with power removed. The CPU monitors battery voltage continuously and sets a dedicated fault bit in the system status word when voltage drops below the threshold, allowing the ladder program to trigger an alarm output or SCADA alert before data loss occurs.

System Integration Benefits

• Deterministic scan cycle: Fixed input-solve-output execution sequence eliminates variable-latency artifacts that complicate PID tuning and motion coordination in multi-axis applications.
• Slot-efficient dual-port serial: Both RS-232 ports are native to the CPU, preserving all 9 remaining base slots for I/O modules rather than consuming a slot for a communications card.
• Unified base-CPU assembly: Factory-matched CPU and backplane eliminate field-reported issues caused by mismatched bus connector tolerances between separately sourced racks and CPU modules.
• Broad I/O module compatibility: The full GE Series 90-30 discrete, analog, thermocouple, RTD, high-speed counter, and motion control module library is electrically and mechanically compatible without firmware modification.
• Expansion rack scalability: Up to 8 additional expansion racks extend the system to 2,048 discrete I/O points, accommodating plant-floor growth without replacing the CPU or reprogramming the base architecture.
• Battery-backed program retention: SRAM retention with low-battery fault bit enables proactive maintenance scheduling rather than reactive response to unexpected program loss after power events.
• SNP/SNP-X protocol support: Native compatibility with GE Cimplicity, iFIX, and third-party SCADA platforms that implement the SNP driver, reducing integration engineering hours for HMI connectivity.
• IEC 61131-3 programming model: Ladder Diagram and Function Block programming via GE Proficy Machine Edition aligns with the skill set of the global installed base of Series 90-30 trained technicians, minimizing retraining costs during system handover.
• Fault table diagnostics: The CPU maintains a hardware fault table and software fault table accessible via the programming terminal, providing timestamped fault records that support root-cause analysis without requiring external data logging hardware.
• Low-battery and watchdog fault outputs: Dedicated system status bits for battery condition, watchdog timeout, and I/O bus fault allow the ladder program to implement structured shutdown or alarm sequences rather than relying on operator observation of front-panel LEDs.
