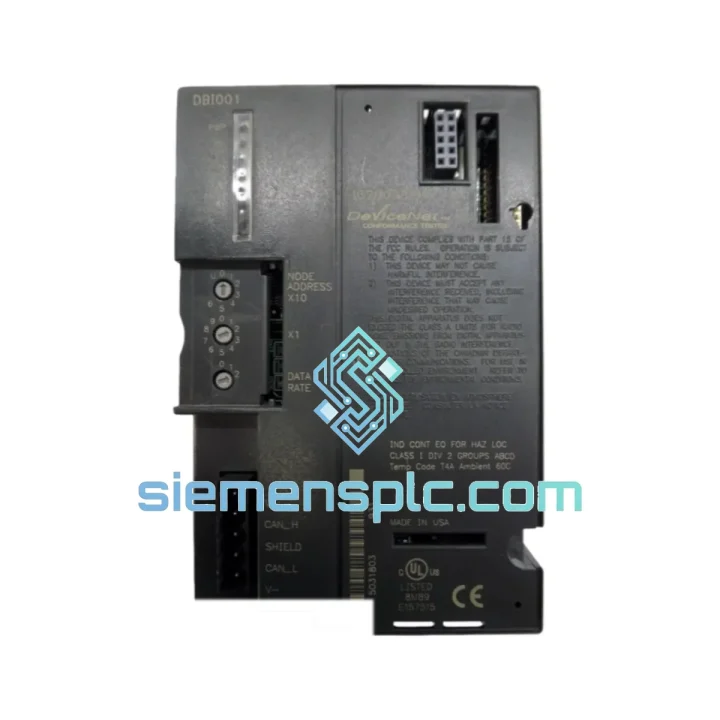

GE IC200DBI001 Network Interface Unit – VersaMax Remote I/O

GE IC200DBI001 DeviceNet Network Interface Unit — Distributed I/O Node Architecture for VersaMax Remote I/O

The GE IC200DBI001 is a DeviceNet Network Interface Unit (NIU) engineered for the VersaMax Remote I/O platform. Its primary function within a control loop is to serve as the fieldbus gateway between a DeviceNet master scanner and a local cluster of up to eight VersaMax I/O modules. Rather than routing I/O data through a centralized backplane, the IC200DBI001 decentralizes signal acquisition to the field level — reducing wiring runs, lowering panel footprint, and compressing scan-cycle latency for distributed process nodes.

In a typical DeviceNet topology, the IC200DBI001 occupies a node address (MAC ID 0–63) on the trunk line and responds to explicit messaging from the master scanner during configuration, and to polled or change-of-state (COS) I/O messaging during runtime. The module manages all backplane arbitration with its downstream VersaMax I/O carriers autonomously, presenting a single coherent I/O image to the network master. This architecture eliminates the need for a local CPU at each remote station, reducing both hardware cost and software maintenance overhead across multi-node installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC200DBI001 integrates a dedicated CAN controller ASIC that handles all DeviceNet physical-layer framing independently of the backplane processor. This separation of concerns means that network communication jitter — caused by variable CAN arbitration delays on a loaded trunk — does not propagate into the backplane I/O scan cycle. The backplane scan and the network transaction operate on independent timing domains, with a dual-port RAM buffer serving as the handoff mechanism between the two.

Optical Isolation Architecture: The DeviceNet interface circuitry is galvanically isolated from the backplane logic via optocouplers rated at 500 V isolation voltage. This prevents ground-loop currents — common in large industrial panels where multiple field devices share a common reference — from corrupting the CAN differential signal pair. The isolation barrier also protects the backplane bus from transient overvoltages induced by inductive loads switching on the DeviceNet trunk.

EMC Design: The module’s PCB layout employs a split ground plane strategy: the CAN transceiver section uses a dedicated analog ground island connected to chassis ground at a single star point, while the digital logic section references the backplane supply return. Ferrite beads are placed in series on the CANH and CANL lines at the module boundary to suppress common-mode RF emissions above 10 MHz. This design approach achieves EN 55011 Class A compliance without external filtering components.

Node Address and Baud Rate Configuration: Both MAC ID and data rate are set via physical rotary switches on the module face, eliminating dependency on software tools for basic commissioning. This is a deliberate design choice for field-replaceable units — a technician can swap a failed NIU and restore the correct node identity without a laptop or programming cable, reducing mean time to repair (MTTR) in production environments.

Watchdog and Fault Containment: An internal hardware watchdog monitors the CAN controller state machine. If the controller enters a bus-off condition (TEC or REC counter overflow per ISO 11898), the watchdog forces a controlled reset of the CAN interface without disrupting the backplane I/O scan. The module asserts a network fault LED and sets a corresponding status bit in the I/O data image, allowing the master PLC to execute a configurable fault response (hold last state, clear outputs, or execute a fault routine) rather than experiencing an uncontrolled output state.

System Integration Benefits

• Deterministic I/O scan latency: The dual-domain architecture (independent CAN and backplane clocks with shared RAM buffer) ensures that I/O data updates to the master scanner occur within a bounded time window, supporting deterministic control loop execution at the PLC level.
• Topology flexibility: DeviceNet supports trunk-and-drop wiring with up to 64 nodes per segment, allowing the IC200DBI001 to be placed at any physical location along the trunk without requiring a dedicated home-run cable back to the control panel.
• Reduced wiring cost: A single 5-conductor DeviceNet cable (CANH, CANL, V+, V−, shield) replaces the individual signal cables that would otherwise be required for each I/O point, with documented savings of 30–60% in field wiring labor on large distributed installations.
• Online diagnostics transparency: The module exposes device identity, vendor ID, product code, revision, and serial number via DeviceNet explicit messaging (Class 1, Instance 1 attributes), enabling asset management systems to inventory field devices without physical inspection.
• Hot-swap capability: VersaMax I/O modules downstream of the IC200DBI001 can be inserted or removed while the NIU remains powered, with the backplane automatically detecting the configuration change and updating the I/O image accordingly.
• Scalable I/O expansion: Up to eight I/O modules per node, supporting a mix of digital discrete (IC200MDL series) and analog (IC200ALG series) modules, allows a single IC200DBI001 to address diverse process variable types within one physical enclosure.
• Backward compatibility: The IC200DBI001 is electrically and mechanically compatible with all VersaMax Remote I/O carriers and power supplies, protecting existing infrastructure investments when upgrading or expanding legacy installations.
• Fault isolation: Because each IC200DBI001 node operates independently on the DeviceNet trunk, a failure at one node does not affect I/O communication at adjacent nodes, improving overall system availability compared to centralized I/O architectures.
• Simplified spare-parts management: A single NIU part number covers all node positions in a VersaMax Remote I/O installation, reducing the number of unique spare parts that must be stocked for maintenance readiness.
• Integration with GE PACSystems: When used with a DeviceNet scanner module (e.g., IC693DNM200) in a PACSystems RX3i rack, the IC200DBI001 nodes appear as standard I/O references in the PACSystems hardware configuration, requiring no custom function blocks or add-on instructions.
