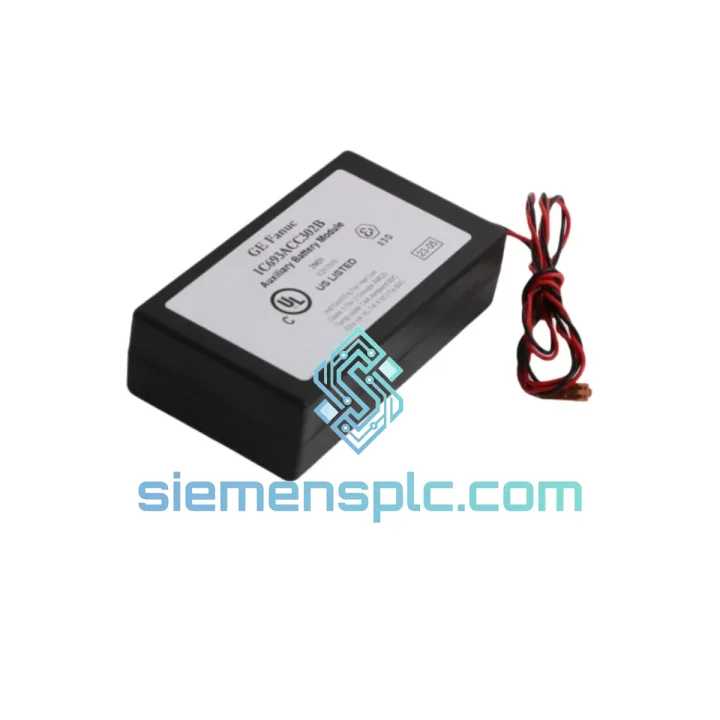

GE IC693ACC302B PLC Battery Module – Series 90-30

GE IC693ACC302B: Lithium Battery Backup Module for Series 90-30 PLC Control Architectures

The GE IC693ACC302B is a dedicated auxiliary battery module engineered for the GE Series 90-30 programmable logic controller platform. Its primary function within the control loop is to sustain volatile CMOS RAM and real-time clock (RTC) circuitry during mains power interruptions, planned shutdowns, or brownout events. Without a functioning battery module, a Series 90-30 CPU loses all ladder logic stored in user RAM and resets the RTC to epoch — an outcome that forces a full program reload and introduces unplanned downtime in production environments where every minute of stoppage carries measurable cost.

In process-critical installations — pharmaceutical batch reactors, automotive transfer lines, water treatment SCADA nodes — the IC693ACC302B acts as the last line of defense for program integrity. It does not participate in scan-cycle execution or I/O arbitration; its role is purely protective, operating in the background at 3.0 V DC with a self-discharge rate low enough to sustain memory retention for up to five years under rated ambient conditions. This passive but indispensable function makes the battery module one of the highest-consequence consumable components in any Series 90-30 installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Compatible CPU modules include IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU351, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374, and IC693CPU375. Compatible with all standard 5-slot and 10-slot Series 90-30 baseplates. Not interchangeable with Series 90-70 or PACSystems RX3i platforms.

Hardware Logical Analysis

The IC693ACC302B employs a lithium primary cell — not a rechargeable NiMH or lead-acid chemistry — which eliminates charge-cycle degradation as a failure mode. Lithium primary cells maintain a flat discharge curve across the majority of their service life, meaning the voltage presented to the CPU’s CMOS RAM retention circuit remains within specification until the cell approaches end-of-life, at which point the Series 90-30 CPU activates its Battery Low LED and generates a fault log entry in Proficy Machine Edition diagnostics. This behavior gives maintenance personnel a deterministic warning window rather than a sudden failure.

From an EMC standpoint, the battery module is electrically isolated from the backplane data bus. It connects only to the dedicated battery input pins on the CPU module, which are routed through a diode-OR circuit inside the CPU. This architecture ensures that a degraded or shorted battery cell cannot inject noise onto the 5 V logic rail or the backplane communication bus — a design consideration that matters in high-EMI environments such as motor drive cabinets or arc welding cells where conducted interference is a persistent concern.

The snap-in mechanical interface uses a positive-retention latch that prevents accidental ejection under vibration loads consistent with IEC 60068-2-6 test profiles. The module’s connector pinout is keyed, eliminating reverse-insertion risk during field replacement. On CPU revisions that support hot-swap battery replacement, the CPU’s internal capacitor bank sustains CMOS RAM for a window of approximately 30 seconds — sufficient for a trained technician to swap the module without program loss, provided the procedure is executed within the documented time limit.

The RTC circuit backed by the IC693ACC302B uses a dedicated oscillator with a temperature-compensated crystal, maintaining timekeeping accuracy to within ±1 minute per month across the rated temperature range. In batch manufacturing applications where timestamp accuracy is required for regulatory traceability — FDA 21 CFR Part 11 compliance, for example — this level of RTC precision is a functional requirement, not a convenience feature.

System Integration Benefits

• Program Integrity on Power Loss: Retains full user ladder logic and data table contents in CMOS RAM during unplanned power interruptions, eliminating the need for emergency program reload procedures and the associated production restart delays.
• RTC Continuity for Batch Traceability: Sustains the CPU’s real-time clock without drift during outages, preserving timestamp accuracy in batch records, alarm logs, and historian data — a requirement in regulated manufacturing environments.
• Deterministic End-of-Life Warning: The Battery Low LED and Proficy ME fault log entry provide a predictable maintenance trigger, enabling planned replacement during scheduled downtime rather than reactive replacement after a failure event.
• Zero Backplane Interference: Electrical isolation from the backplane data bus ensures that battery degradation does not introduce noise or voltage anomalies onto the 5 V logic rail or the Series 90-30 communication bus.
• Vibration-Resistant Mechanical Interface: Positive-retention snap-in latch maintains module seating under vibration profiles consistent with industrial panel environments, reducing the risk of intermittent contact faults.
• Hot-Swap Capability on Supported CPUs: Internal capacitor bridge in compatible CPU revisions allows battery replacement without a controlled shutdown, reducing maintenance-induced downtime to near zero.
• Long Service Interval: Up to five-year service life at rated ambient temperature reduces the frequency of planned maintenance interventions and lowers the total cost of ownership for MRO stocking programs.
• Regulatory Compliance: CE and UL certifications maintained on the OEM module support audit requirements for machinery safety documentation, insurance underwriting, and export compliance in regulated markets.
• Keyed Connector Design: Reverse-insertion protection eliminates a common field installation error, reducing the risk of connector damage or incorrect polarity during replacement under time pressure.
• Full OEM Traceability: Date codes, revision markings, and OEM documentation chain support counterfeit screening and procurement audit requirements in defense, aerospace, and pharmaceutical supply chains.

Quality Assurance & Global Logistics

Every IC693ACC302B unit shipped from our Xiamen, China facility undergoes a structured incoming inspection process. Label authentication is cross-referenced against GE Fanuc OEM specifications, including date code format, revision marking, and holographic security features where applicable. Physical condition is assessed for connector integrity, housing cracks, and evidence of prior installation. Units sourced as new-original are stored in anti-static packaging with humidity indicator cards, maintained in a climate-controlled warehouse to prevent lithium cell self-discharge acceleration from elevated ambient temperatures.

Counterfeit screening follows AS6081 guidelines, with particular attention to label printing quality, weight consistency, and connector pin plating characteristics — the three most commonly falsified attributes on battery module counterfeits in the industrial aftermarket. Units that do not pass inspection are quarantined and not offered for sale.

International shipments are dispatched via DHL Express, FedEx International Priority, or UCP depending on destination and urgency. Standard in-stock orders ship within 1–3 business days from Xiamen. Full export documentation is provided for every international order: commercial invoice, packing list, certificate of origin, and — upon request — a Certificate of Conformance. Dangerous goods documentation for lithium battery shipments is prepared in compliance with IATA Packing Instruction 968/969 as applicable to the shipment configuration.

A 12-month warranty covers all units against manufacturing defects and premature cell failure under rated operating conditions. Warranty claims are processed with a replacement-first policy to minimize customer downtime.
