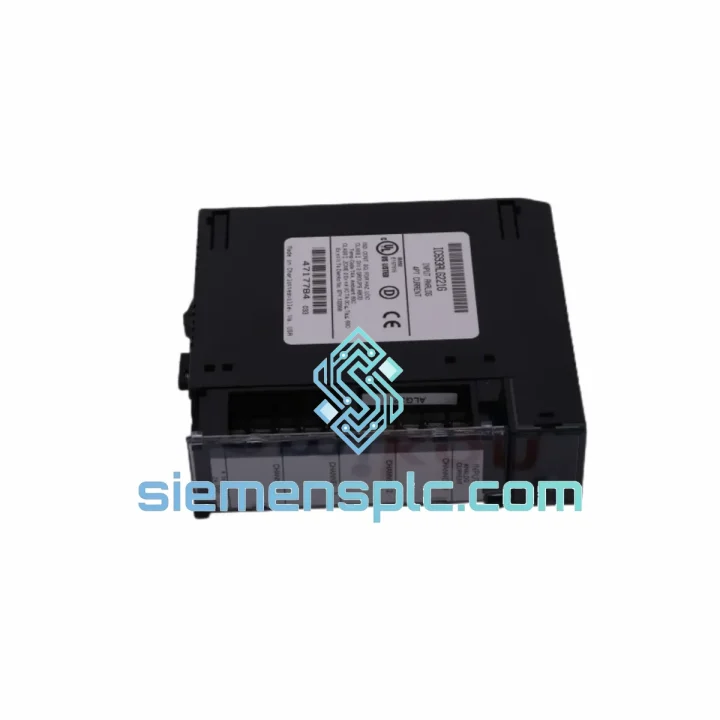

GE IC693ALG221 Analog Input Module – Series 90-30

GE IC693ALG221 — Four-Channel 4–20 mA Current Input Module for Series 90-30 Control Architecture

In continuous process environments, the integrity of analog signal acquisition is not a secondary concern — it is the foundation upon which every closed-loop control decision rests. The GE IC693ALG221 is a four-channel analog current input module engineered for the Series 90-30 modular PLC platform. It accepts industry-standard 4–20 mA transmitter signals and converts them to 12-bit digital values that the CPU processes within each scan cycle. The module occupies a single backplane slot, draws power directly from the Series 90-30 rack bus, and requires no external signal conditioning hardware for standard 2-wire or 3-wire transmitter configurations.

The IC693ALG221 was designed during an era when GE Fanuc Automation defined the benchmark for mid-range process control hardware. Its architecture reflects a deliberate engineering philosophy: maximize channel density per slot, maintain electrical isolation between field wiring and the backplane logic bus, and deliver repeatable measurement accuracy across the full industrial temperature range. These design priorities have kept the module in active service across petrochemical plants, municipal water treatment facilities, power generation stations, and discrete manufacturing lines for more than two decades.

Each of the four input channels operates independently. The module samples all channels sequentially within a single scan update, ensuring that process variable data presented to the CPU reflects a temporally coherent snapshot of field conditions. At 12-bit resolution, the usable measurement range of 4–20 mA is divided into 4,096 discrete counts, yielding a step size of approximately 3.9 µA per count — sufficient for the majority of industrial process control applications including temperature, pressure, flow, and level measurement loops.

The module interfaces with the Series 90-30 backplane through GE’s proprietary I/O bus protocol. Configuration is performed entirely within the I/O table of the programming environment — either Proficy Machine Edition or the legacy Logicmaster 90-30 software — with no DIP switch or jumper settings required on the module itself. The CPU reads analog values from the module’s assigned %AI register block, making integration into existing ladder logic or structured text programs straightforward for engineers already familiar with the Series 90-30 architecture.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC693ALG221 employs a multiplexed analog front-end architecture. A single analog-to-digital converter (ADC) services all four input channels through a time-division multiplexing scheme controlled by the module’s onboard sequencer logic. Each 4–20 mA field signal passes through a precision 250 Ω shunt resistor, converting the current loop signal to a 1–5 VDC voltage that the ADC samples. This resistor-based conversion is a deliberate design choice: it eliminates the need for active current-sensing circuitry, reduces component count, and maintains measurement linearity across the full input range without gain-stage drift.

Electrical isolation between the field wiring terminals and the backplane logic bus is achieved through optocoupler barriers on the data path and DC-DC converter isolation on the power rail. This dual-barrier isolation architecture serves two distinct functions. First, it prevents ground loop currents — which are endemic in large industrial installations where field devices and control panels share different ground reference potentials — from corrupting ADC readings or introducing common-mode noise into the measurement chain. Second, it protects the CPU and backplane from transient overvoltage events originating on the field wiring, such as inductive kickback from solenoid valves or capacitive discharge from long cable runs.

The module’s EMC design follows the conducted and radiated immunity requirements applicable to industrial control equipment. The PCB layout routes analog signal traces away from digital clock lines, and decoupling capacitors are placed at each power entry point to suppress high-frequency noise injected via the backplane bus. The result is a module that maintains its specified ±0.1% accuracy even in environments with significant electromagnetic interference from variable-frequency drives, contactors, and high-current bus bars operating in proximity to the control panel.

From a firmware standpoint, the module presents its converted digital values to the CPU through the Series 90-30 I/O bus as 16-bit signed integers mapped to the %AI register space. The upper four bits of each 16-bit word carry status flags — including an out-of-range indicator that activates when the input current falls below approximately 3.6 mA (indicating a broken wire or failed transmitter) or exceeds approximately 20.5 mA (indicating a shorted loop or transmitter fault). This embedded diagnostics capability allows the CPU program to implement transmitter health monitoring without requiring additional discrete input channels or external signal conditioners.

System Integration Benefits

• Native %AI Register Mapping: Analog values are directly accessible in the CPU’s %AI data table without intermediate conversion routines, reducing ladder logic complexity and scan time overhead.
• Broken-Wire Detection: The module’s out-of-range status flag (activated below ~3.6 mA) enables the CPU to detect open-circuit transmitter failures and trigger alarms or safe-state outputs without additional hardware.
• Deterministic Scan Integration: Because the module updates within the CPU’s fixed scan cycle, analog data timestamps are implicitly synchronized with discrete I/O states — critical for sequence-of-events logging and interlock logic.
• Zero External Signal Conditioning: Standard 2-wire and 3-wire 4–20 mA transmitters connect directly to the module’s terminal block, eliminating the cost and failure points associated with external signal conditioners or isolators.
• Proficy Machine Edition Compatibility: Full hardware configuration support in GE’s current programming environment, including I/O fault reporting, channel enable/disable, and scaling parameter entry within the hardware configuration tree.
• Logicmaster 90-30 Legacy Support: Fully recognized by the legacy Logicmaster 90-30 programming software, enabling direct drop-in replacement in systems that have not been migrated to Proficy.
• Rack Position Flexibility: The module can occupy any I/O slot in a Series 90-30 main or expansion rack, with the CPU automatically identifying its slot address during power-up configuration scan.
• Scalable Channel Utilization: Unused channels can be disabled in software to suppress spurious fault indications from unconnected inputs, maintaining a clean diagnostic display without requiring physical termination resistors on open terminals.
• Consistent Thermal Performance: Specified accuracy is maintained across the full 0–60°C operating range, eliminating the need for panel air conditioning in moderate-climate installations.
• Low Backplane Power Draw: The module’s power consumption from the 5 VDC backplane rail is low enough that four IC693ALG221 modules can typically be installed in a single rack without exceeding the power budget of standard Series 90-30 power supply units.

Quality Assurance & Global Logistics

Every IC693ALG221 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Visual examination covers the PCB surface, edge connector contacts, terminal block integrity, and housing for any indicators of counterfeit manufacture or physical damage. Functional testing is performed on a live Series 90-30 test rack: the module is powered, recognized by the CPU, and all four analog input channels are verified against a calibrated 4–20 mA signal source traceable to national measurement standards. Channel accuracy, out-of-range flag behavior, and backplane communication integrity are all confirmed before the unit is cleared for shipment.

Units are packed in anti-static ESD bags, cushioned with conductive foam, and enclosed in double-wall corrugated cartons rated for international air freight handling. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment to facilitate customs clearance in the destination country. We ship via DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East. All shipments include full tracking and are covered by carrier insurance.

A 12-month warranty applies to all units, covering functional defects attributable to the module itself. Warranty claims are processed by return shipment with advance replacement available for customers with active procurement relationships. Our technical team — comprising engineers with hands-on Series 90-30 commissioning experience — is available to assist with installation verification, compatibility questions, and fault diagnosis via email and WhatsApp throughout the warranty period and beyond.
